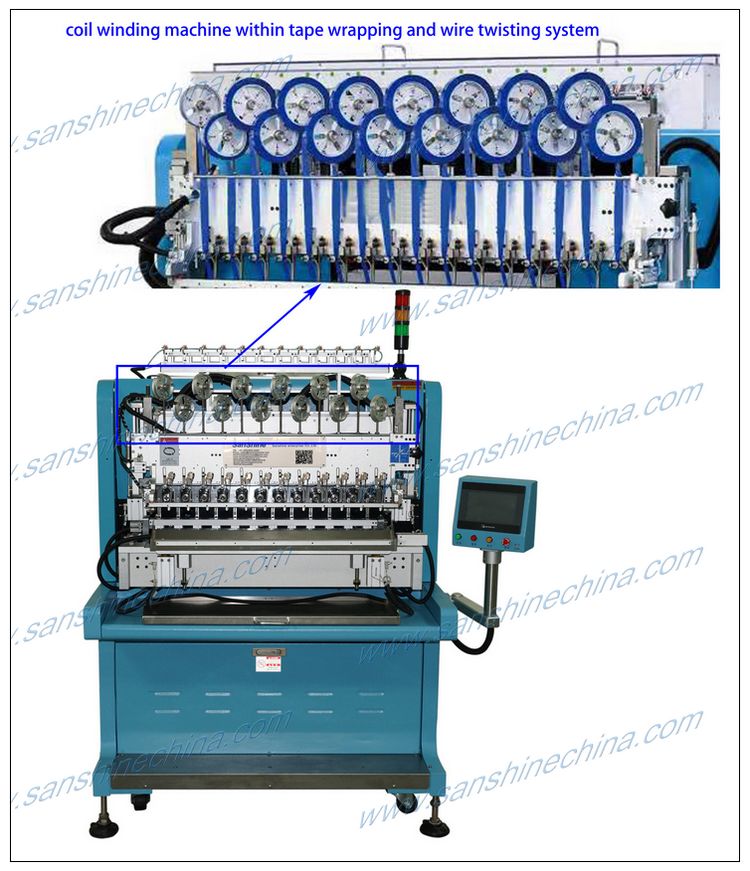

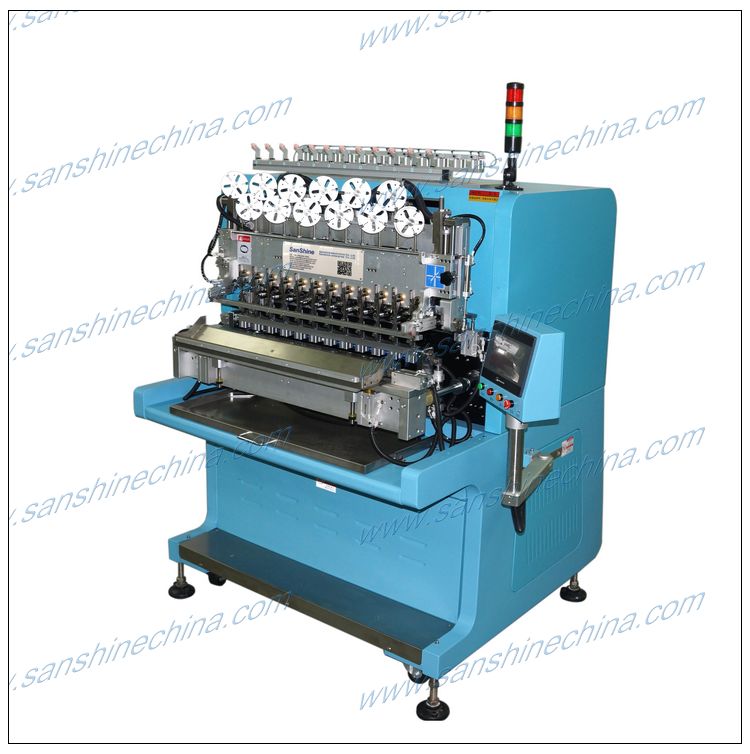

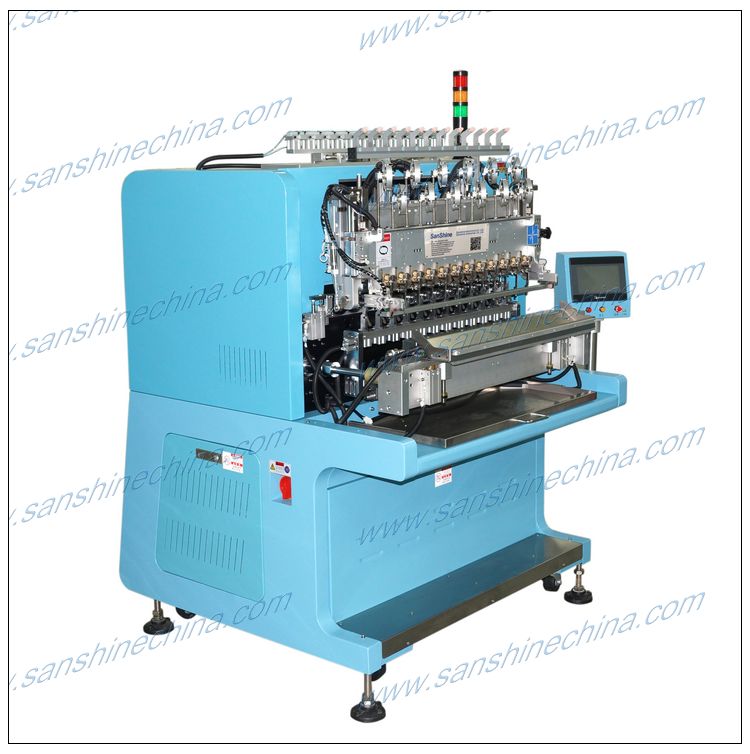

Product name : 32 spindles fully automatic valve relay winding machine (SS3532)

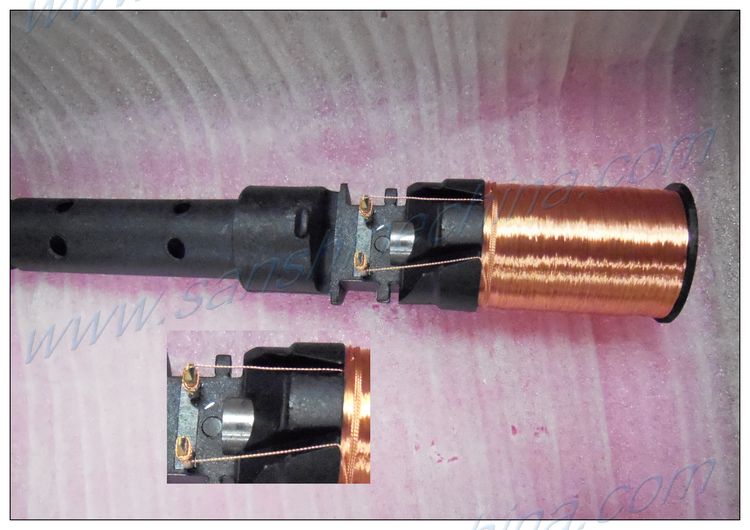

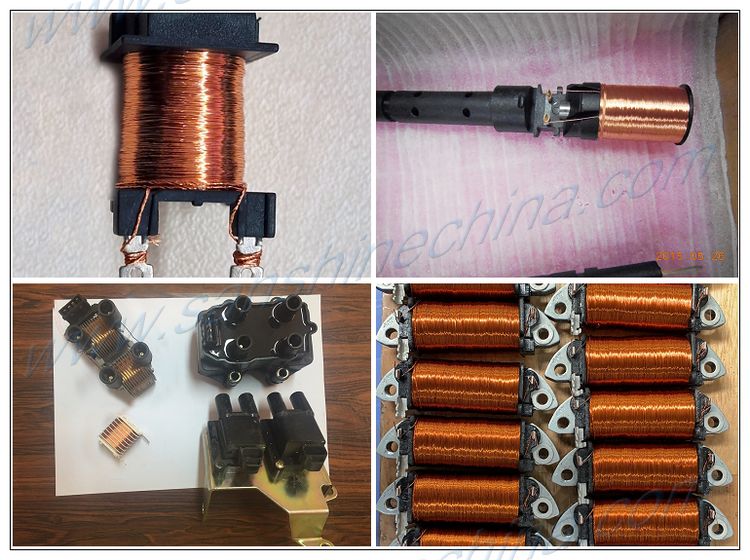

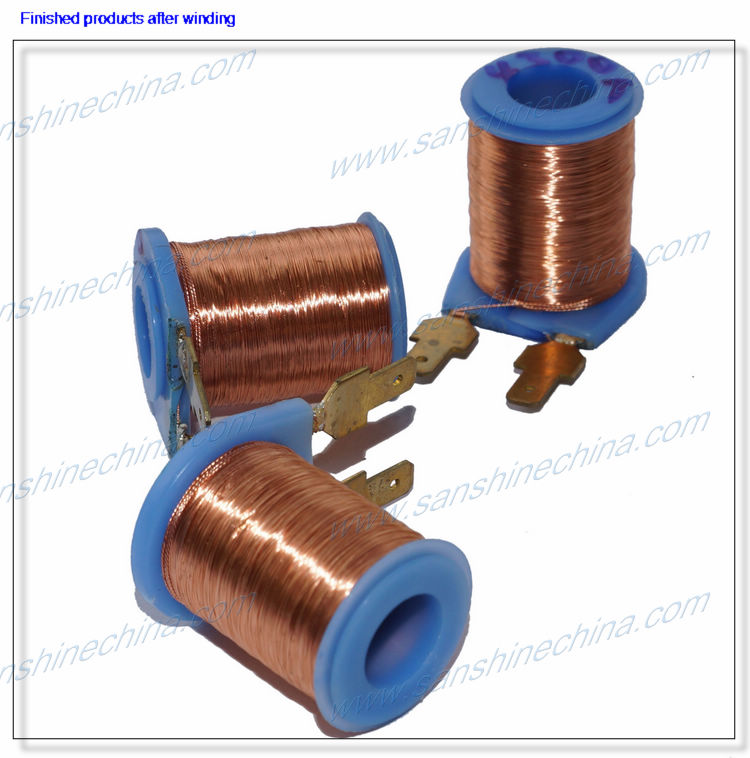

Winging products show
Description :
The 32 spindles fully automatic valve relay winding machine (SS3532) is used for winding the linear small power transformers, signal transformers, inductors, relays, valve coils, solenoid coils, telecom transformers. This fully automatic thirty-two spindles linear coil winding machine (SS3532) is named fully automatic relay coil production line and fully automatic valve coil production line also. The fully automatic 32 spindles linear coil winding machine can finished the coils without any one manual actions. Load the bobbins and down load the completed coils in fully automatically. Make the wire winding, wire twisting, tape wrapping, wire cutting and wire stripping processing by fully automatically quickly via different function optional system. Promote your production quality to a top grade and raise production efficiency quickly. Can be integrated this winding machine with the soldering station and testing station, coils placing station to be one fully automatic coil production line.
Fixtures :
1),Specially wire cutting system for thick wire and TEX wire.
2),The wire clips can hold wire still automatically when air pressure cut off.
3),Can cut off air pressure automatically when electric power off.
4),Can wind multiple piece wires in parallelly at same time on same bobbin.
5),Calibrate the original position of X / Y / Z spindles automatically.
6),Automatically loading and unloading function.
7),Wire broken alarm function.
8),Wrapping tape function.
9),Wire twisting function.
10),Wire cutter cutting function.
11),Wire stripping function.
12),High precise servo motors with high precise controlling system and movement system.
13),Multi-angles to wind wire terminal on the pins.
14),Winding jigs and loading /unloading fixture can be changeable easily.
15),Chinsee / English operation interface switchable with touching screen.
16),Potable adjustment keyboard.
Specification :
Model | SS1206 | SS8008 | SS1208 | SS7010 | SS9910 | SS6012 | SS8012 | SS4516 | SS6016 | SS3824 | SS3532 |
Spindle numbers | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 16 | 16 | 24 | 32 |
Center distance between spindles | 120mm | 80mm | 120mm | 70mm | 99mm | 60mm | 80mm | 45mm | 60mm | 38mm | 35mm |
Max.Dia. Or width of bobbin |
55mm | 50mm | 55mm | 45mm | 50mm | 42mm | 45mm | 30mm | 42mm | 20mm | 16mm |
Wire diameter (mm) | 0.02~0.8 | 0.02~0.6 | 0.03~0.6 | 0.02~0.5 | 0.03~0.5 | 0.02~0.45 | 0.02~0.5 | 0.02~0.35 | 0.02~0.35 | 0.02~0.35 | 0.02~0.3 |
Control way | Precise CNC multi-axis AC servo motor transmission system, position controlling precisely. | ||||||||||
Spindles rotating speed (RPM) |
Max. 9000 |
Max. 9000 |
Max. 7000 |
Max. 9000 |
Max. 8000 |
Max. 12000 |
Max. 8000 |
Max. 12000 |
Max. 10000 |
Max. 12000 |
Max. 15000 |
Winding nozzle angle |
0° , 90° , 45°(optional) | ||||||||||
Spindles rotating angle | 360° +/- 0.1 | ||||||||||
Traverse range of winding nozzle | (X Axis):0-100mm (Y Axis):0-100mm (Z Axis):0-60mm | ||||||||||
Accuracy of winding nozzle movement |
0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
X/Y/Z Axis servo motor power (KW) | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 | (X):0.4 (Y):0.4 (Z):0.4 |
Wire terminal clips device moving servo motor power |
400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
Winding spindle servo motor power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 2.0KW | 2.0KW |
Operation interface | Easily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen) | ||||||||||
Program storage method | Direct storage + USB | ||||||||||
Power supply | Single phase AC220V 50/60 Hz or AC110V 50/60 Hz by request | ||||||||||
Power | 3KW | 3KW | 3.5KW | 3KW | 3.5KW | 3KW | 3.5KW | 3KW | 3.5KW | 3.5KW | 3.5KW |
Air source pressure |
5-6Kgf/cm2 | ||||||||||
Servo motor |
Panasonic or or FUJI or YASKAWA | ||||||||||
Cylinder | SMC / CKD /Airtac / Chelic Cylinder | ||||||||||
Machine net weight |
650Kg | 650Kg | 750Kg | 650Kg | 750Kg | 650Kg | 750Kg | 650Kg | 750Kg | 900Kg | 900Kg |
Machine size(mm) (with tensioners shelf)(W*L*H) |
1500* 1200*
1820 |
1500* 1200* 1820 |
1700* 1500* 1650 |
1500* 1200* 1820 |
1700* 1500* 1650 |
1500* 1200* 1820 |
1700* 1500* 1650 |
1500* 1200* 1820 |
1700* 1500* 1650 |
1200* 1500* 1600 |
1700* 1500* 1650 |
Bobbing loading and finished coil unloading way |
Operator place bobbins on the Auto. Loading and unloading fixture first, then machine insert the bobbins onto the winding spindles automatically, will unload the finished coils automatically. ( fully automatic loading and unloading bobbins and coils function by request to customize, fully automatically loading and unloading function which no need operator to place the bobbins on the fixture. These winding machines can be integrated with our automatic solder tinning machines and automatic testing machines and core assembly machines so that to be one fully automatic finished coils production line without operator. we provide the fully automatic finished coils production line by user request.) |
||||||||||
Tape wrapping function | optional | optional | optional | optional | optional | optional | optional | optional | optional | NO | NO |
Wire twisting function |
optional | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional |
Thick wire cutter cutting function |
optional | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional |
Wire stripping function | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional |
Wire broken alarm function | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional |
