DC overlap bias current source power supply

This SS1320 DC overlap current source (DC Bias source) is a micro-processing control, automatic and programmable overlap current source. This direct bias current source is used for analysing the ferrite core and iron core characteristics in inductor for quality inspection and product feature analysis.
  • Item NO.:

    SS1320
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Beige and gray
contact now User's reviews
Description

Product name : DC overlap bias current source power supply (SS1320)

1320 DC bias source

1320S DC bias source

Description :

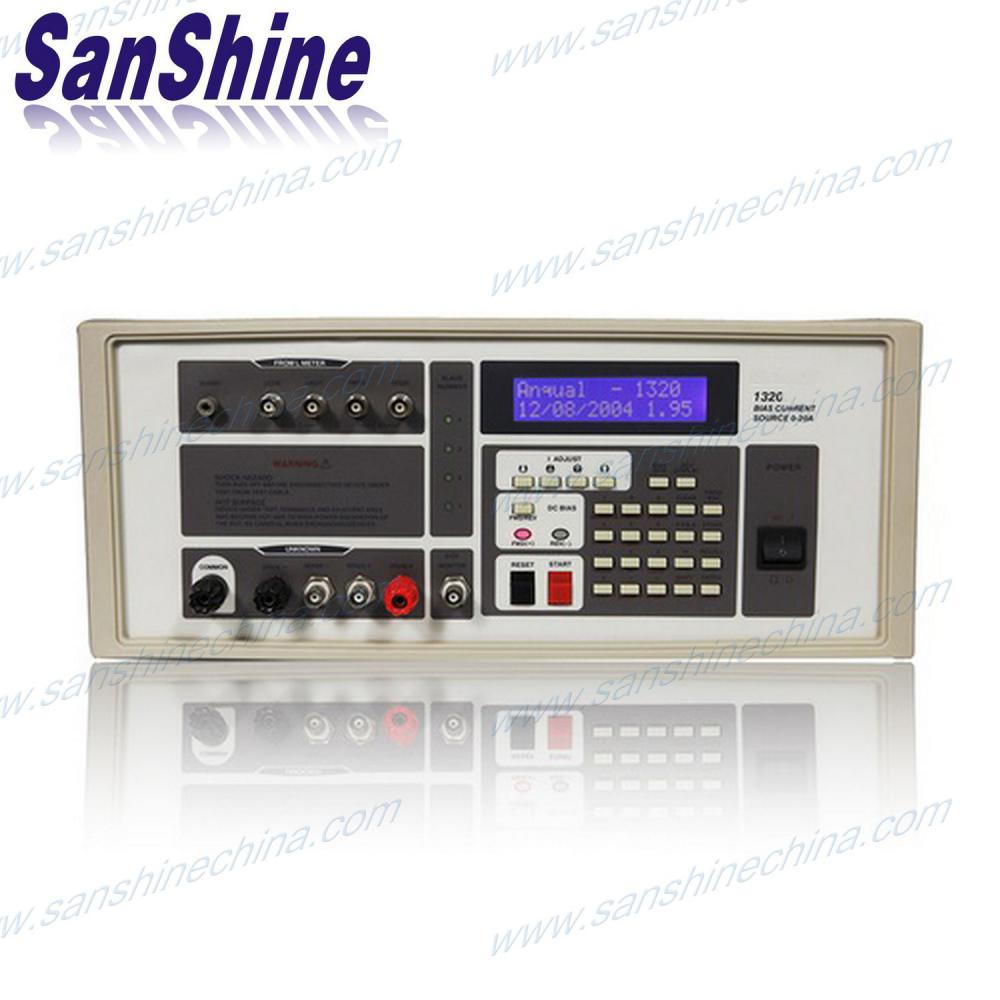

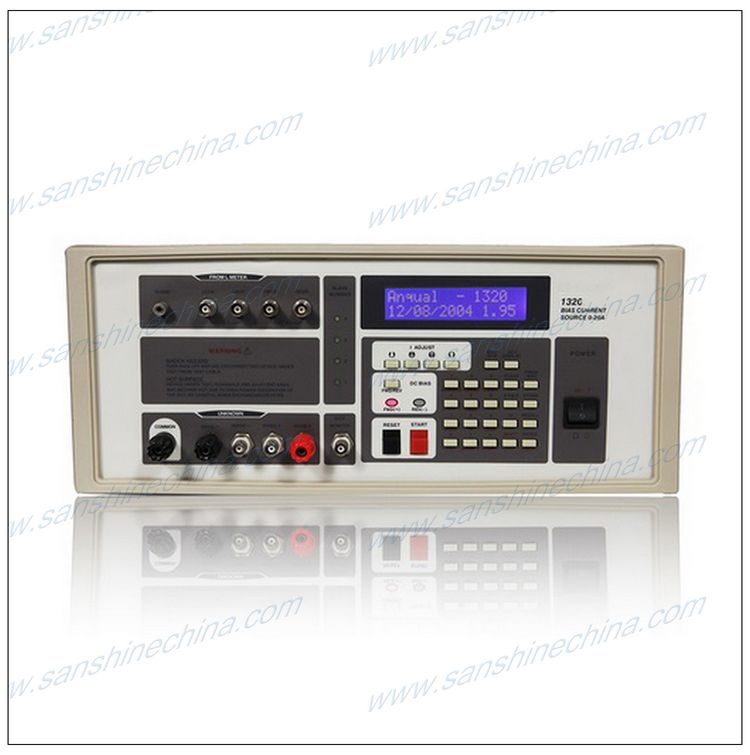

The SS1320 DC overlap current source (DC Bias source) is a micro-processing control, automatic and programmable overlap current source. It can provide high-precision, fast and reliable measurement at high cost performance; it can be connected to a PC through the IEE488 interface; the Handler interface provides conditions for automated measurement and remote control; the storage of setting data provides convenient conditions for the next test. The SS1320 Bias Current Source output can be controlled by automatic transformer tester within LCR METER ( model : SS3302, SS3252) directly. The SS1320S connected externally can output current up to 100A. The bias current scan frequency triggered automatically or manually can analyze the ferrite core and iron core characteristics in inductor for quality inspection and product feature analysis. This current source is named direct bias current supply also. They are the best measurement instruments combination for inductor test.

Features :

1),Using microprocessor control, fast and reliable. 16*2 LCD text display.

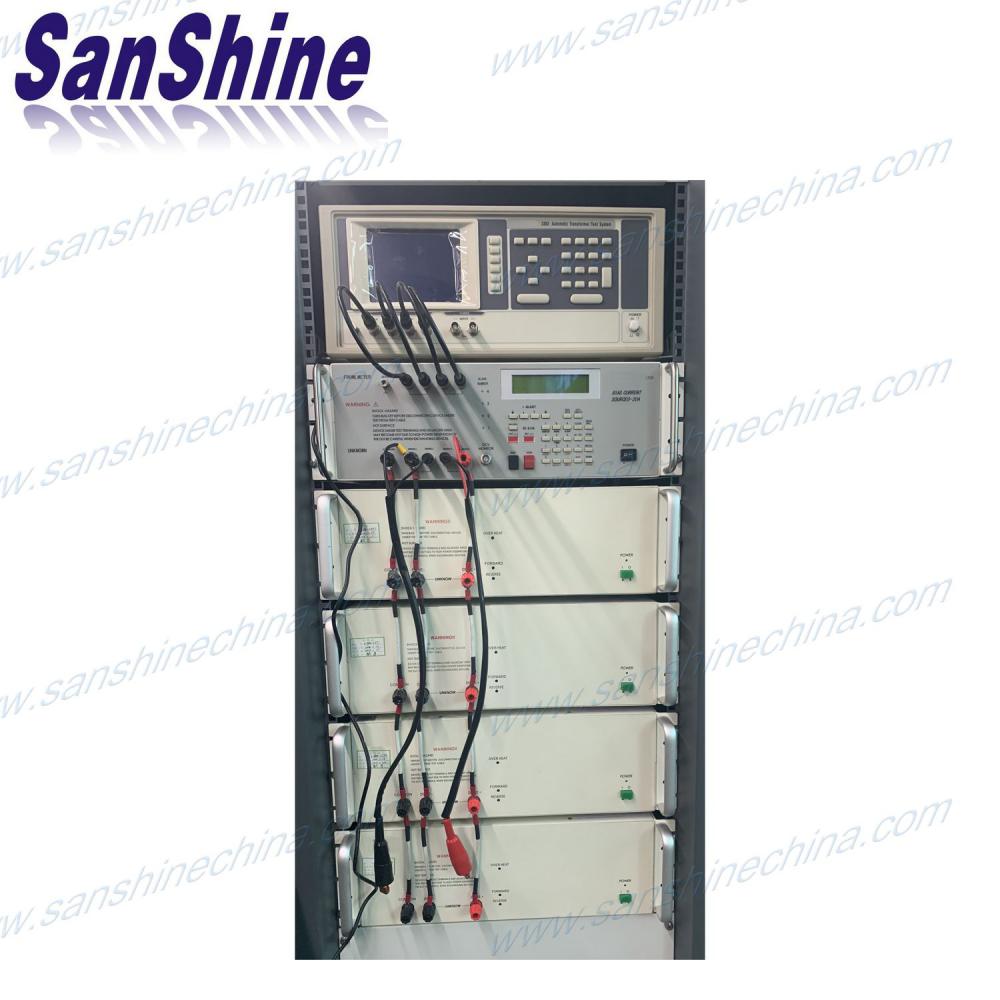

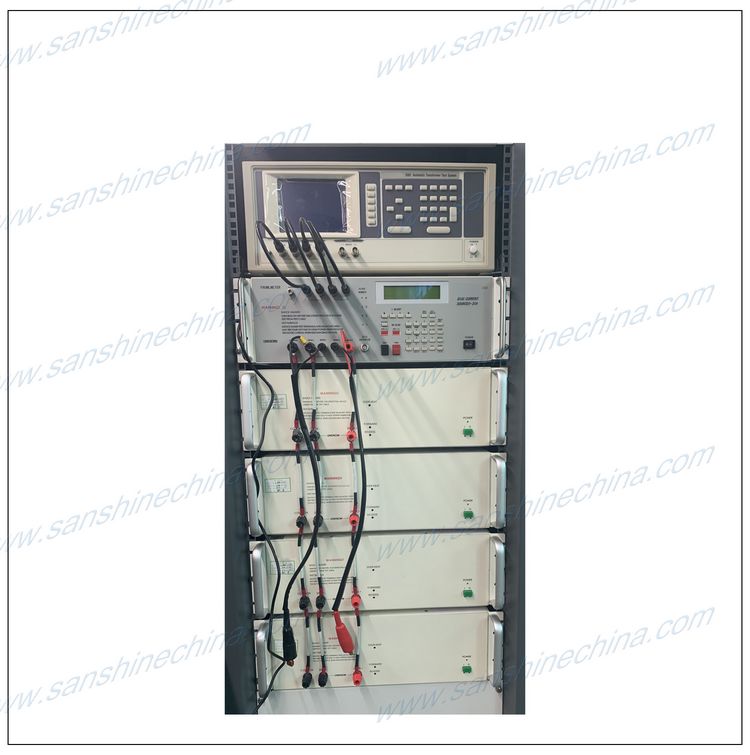

2),DC: -20A ~20A current output, 100A extendable when linked with SS1320S. If user need the current to be more than 20A that need buy more units SS1320S source to connect in parallel. One unit SS1320S only can output 20A, Must use 1 unit SS1320 and 4 units SS1320S to connect in parallel if user need 100A current output.

3),Forward and reverse current switchable.

4),Multi-point automatic or manual current scanning (2-21 points), characteristic analysis of iron core and ferrite core in inductor.

5),Frequency response : 20Hz ~ 1MHz.

6),It can be connected with our automatic transformer tester within LCR METER (SS3302, SS3252) for current control and multi-point test value good and bad product judgment.

7),Can memorize 50 sets of data settings.

8),Can do DCR resistance testing.

9),Single bias current output timer capability ( 0 ~24 hours)

General specifications :

temperature humidity 0 ° C - 40 ° C, 80% RH
Power requirements Voltage 95V -125V  or 190V -250V
frequency 49-62Hz
Power consumption ≤650 VA
Dimensions (W×H×D) 445W x 175H x 425D mm
weight About 13.5kg

Technical parameter :

Instrument model SS1320
Provide -20A ~20A current output
Current accuracy 0.00 - 1.00A ± 1% + 3mA
1.01 - 5.00A ±2%
5.01 - 20.00A ±2%
20.10 - 100A (connect with multiple unit SS1320S) ±3%
DC resistance test accuracy 20mΩ - 200mΩ ±2%
2Ω - 200Ω ±3%
Other functions
Memory Data setting memory 50 groups
interface IEEE-488 (option)/HANDLER
