programable precise cable data wire harness tester

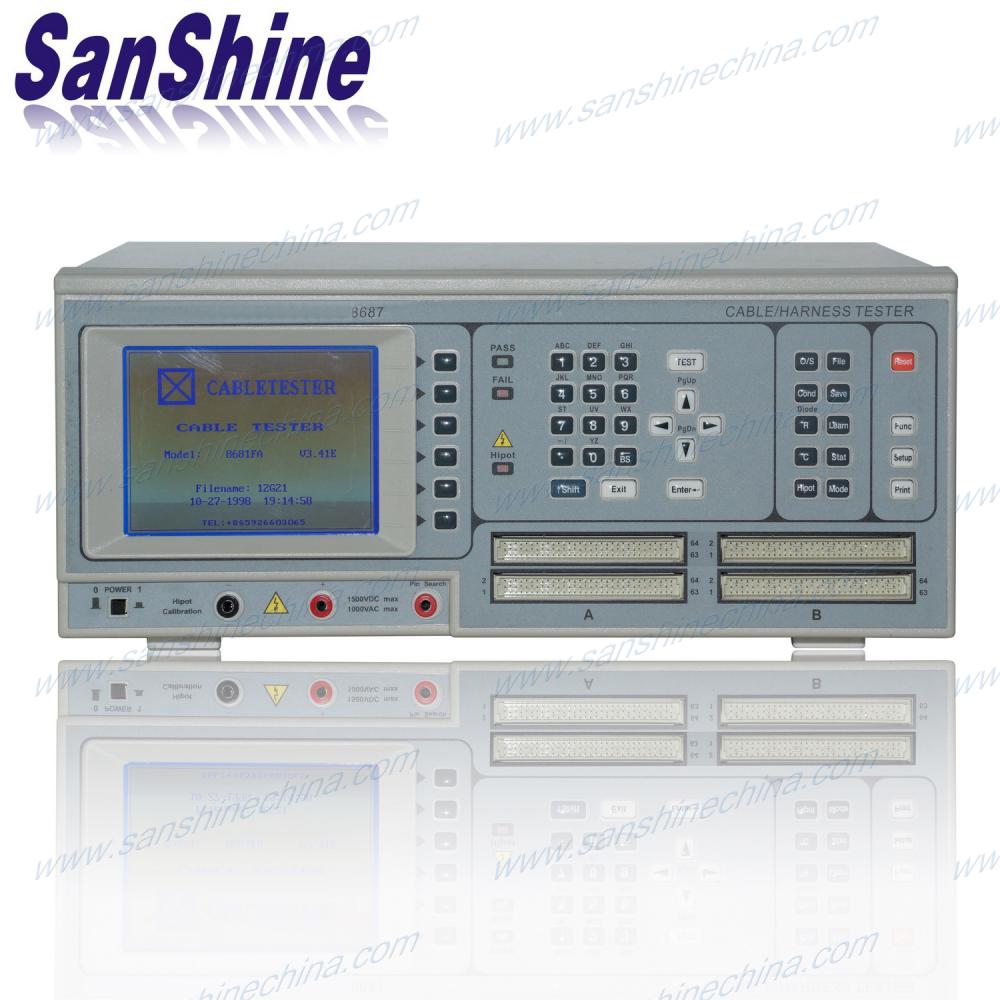

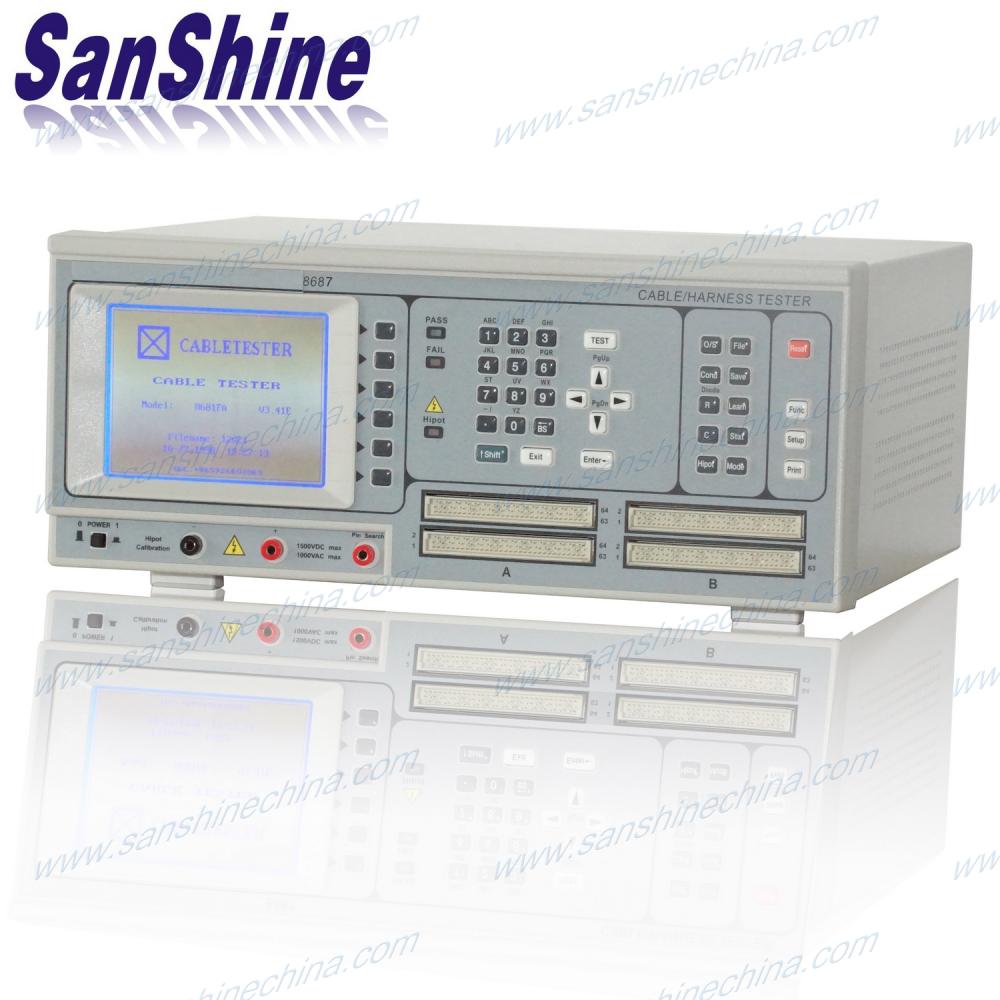

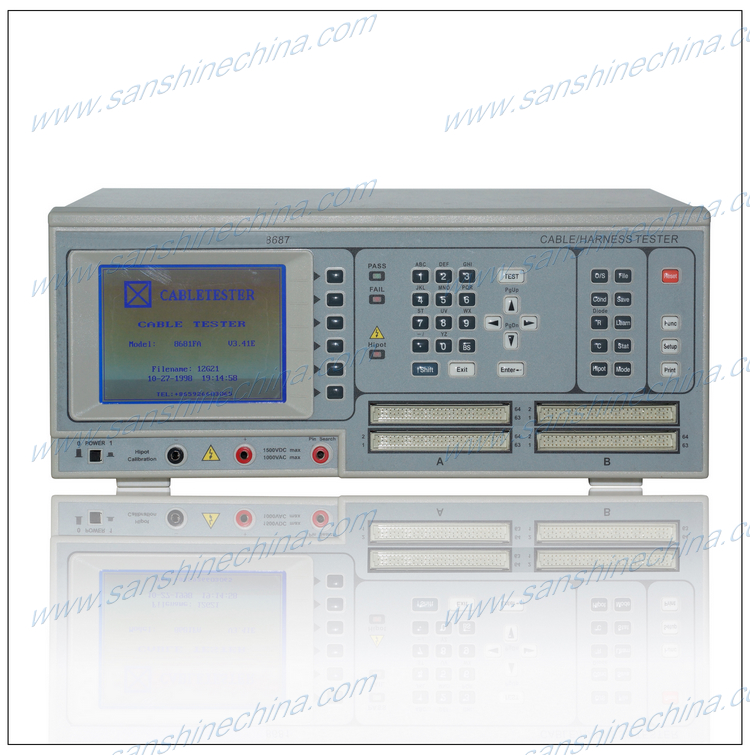

This programable precise cable data wire harness tester (SS8687 series) is used for testing the cable harness and wire harness.
  • Item NO.:

    SS8687 series
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now User's reviews
Description

Product name : Programable precise cable data wire harness tester (SS8687 series)

MICROTEST TF8687 cable harness tester

Description :

The programable precise cable data wire harness tester (SS8687 series) is used for testing the cable harness and wire harness. Like as : Automobile cable harness, audio cableharness, power cable harness, network cable, telephone wires, USB cable, HDMI cable, video cable harness, RS232 cable, etc. . This cable harness tester(SS8687 series) adopts the precise 4-Wire Measurement technology. This wire harness tester (SS8687 series) can check and find which one wire is opened or shorted or conducting and check the wires insulation grade by one time. So quickly and easy. This cable harness tester (SS8687 series) cansubstitute the MICROTEST cable harness tester (TF8687) fully and easily.

Feature :

1, 4-Wire Measurement

2, up to 1500Vdc/1000Vac Test Voltage

3, Auto Scan and Auto Pin Search

4, Intermittent Conductance and O/S

5, Large 320x240 LCD Display

6, Linear and Safety Test All-in-One

7, Full Programming Sequence Test

8, Versatile I/O

9, Statistics and Print Function

Test function :

Item Symbol Test range
Resistance R 0.01Ω~10MΩ
Capacitance C 10pF~1000μF
Diode D 0~8V
Conductance COND 1mΩ~50Ω
Insulation IR 1MΩ~1.5GΩ
Hipot I.L. 0.01mA~5mA
Open/Short O/S
Capacitor phase P
Intermittent O/S
Intermittent Cond.
O/S End Judgement

Specification :

Advanced Functions Programmable Sequential Test
Auto Pin Search
Self Diagnostic
Self Calibration and Offset
Basic accuracy ±1%
Scanning mode Auto/Manual Switchable
Meas. Frequency/ Voltage 100~100kHz, 1Vac
Meas. Signal 5Vdc / 50mA max. ±5%
Hipot 50~1000Vac. ±5% / 0.01~60sec Set up
Insulation 50~1500Vdc. ±5%
Meas. Connection 128 Testing Points (256 for Optional)
Hipot Calibration +/- Output
Auto Pin Search Jack
Front Panel Buttons Syskey / Fastkey / Editkey
I/O Interface RS-232 Port
Printer Port
Remote ControlPort
Memory 512KB SRAM,BatteryBackup
Power 115/230Vac 60/50Hz ± 10% Switchable
Accessories Auto Pin Search Probe
Fixture Cable
Power Cord
Users' Manual
Remote Control Cable (Optional)
RS-232 Cable (Optional)
Temperature humidity 15°C~35°C. RH≦75%
Dimension (WxHxD) 425 x 190 x350mm
Weight 14kgs (W/O Fixture)
Cable request 1μF Max.
Ordering information 4- Wire Universal Cable / Harness Tester
SS-8687N DC1000V
SS-8687NA DC700V / AC 500V
SS-8687F DC700V
SS-8687FA DC1500V / AC1000V
SS-8687FAC2 256 Points
