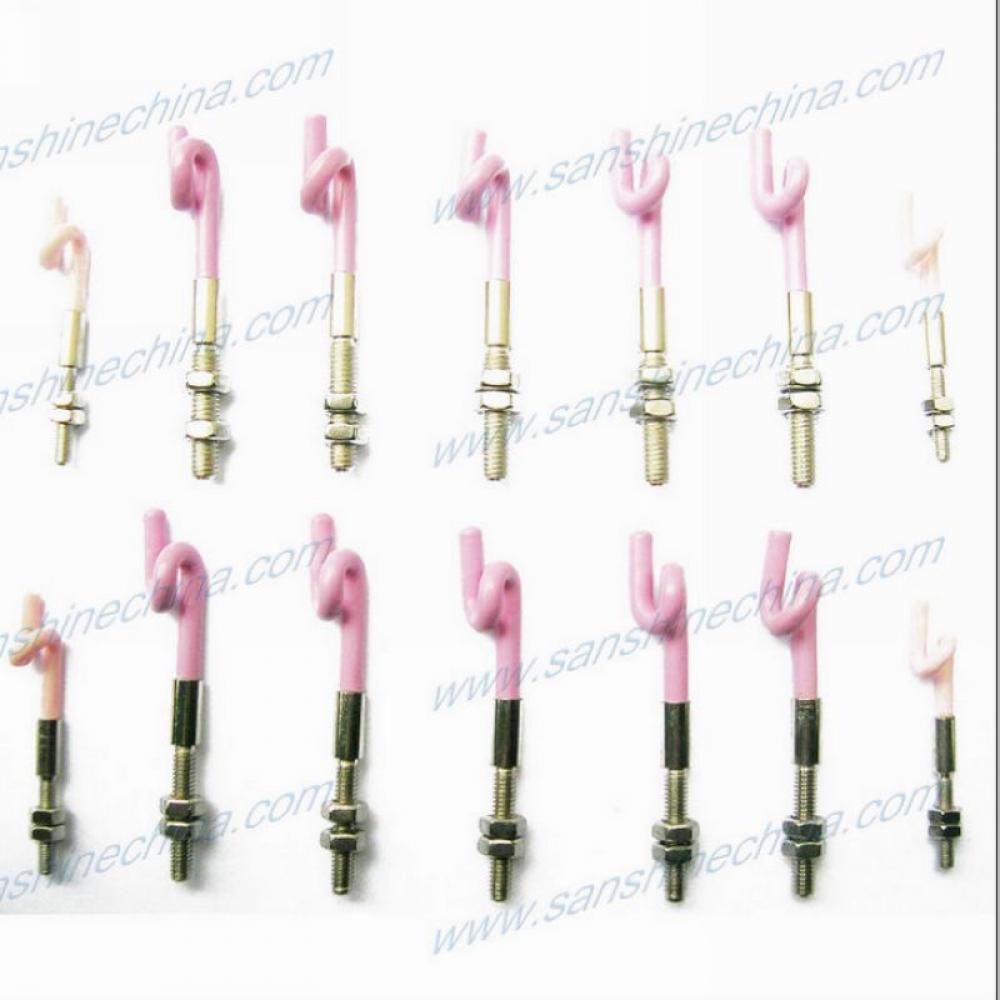

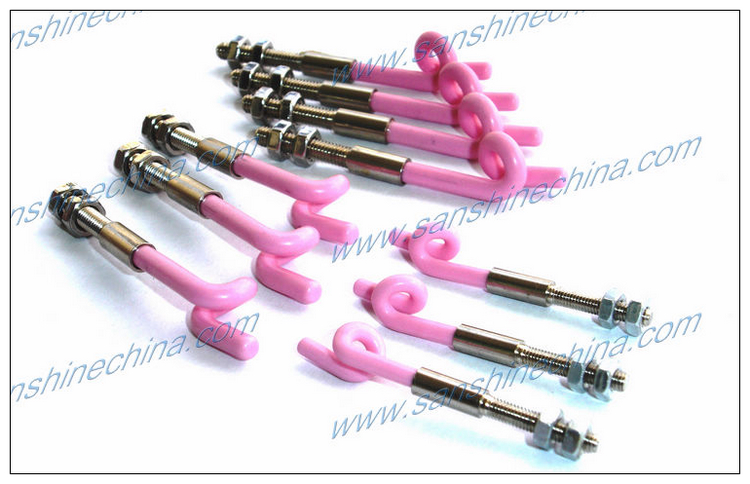

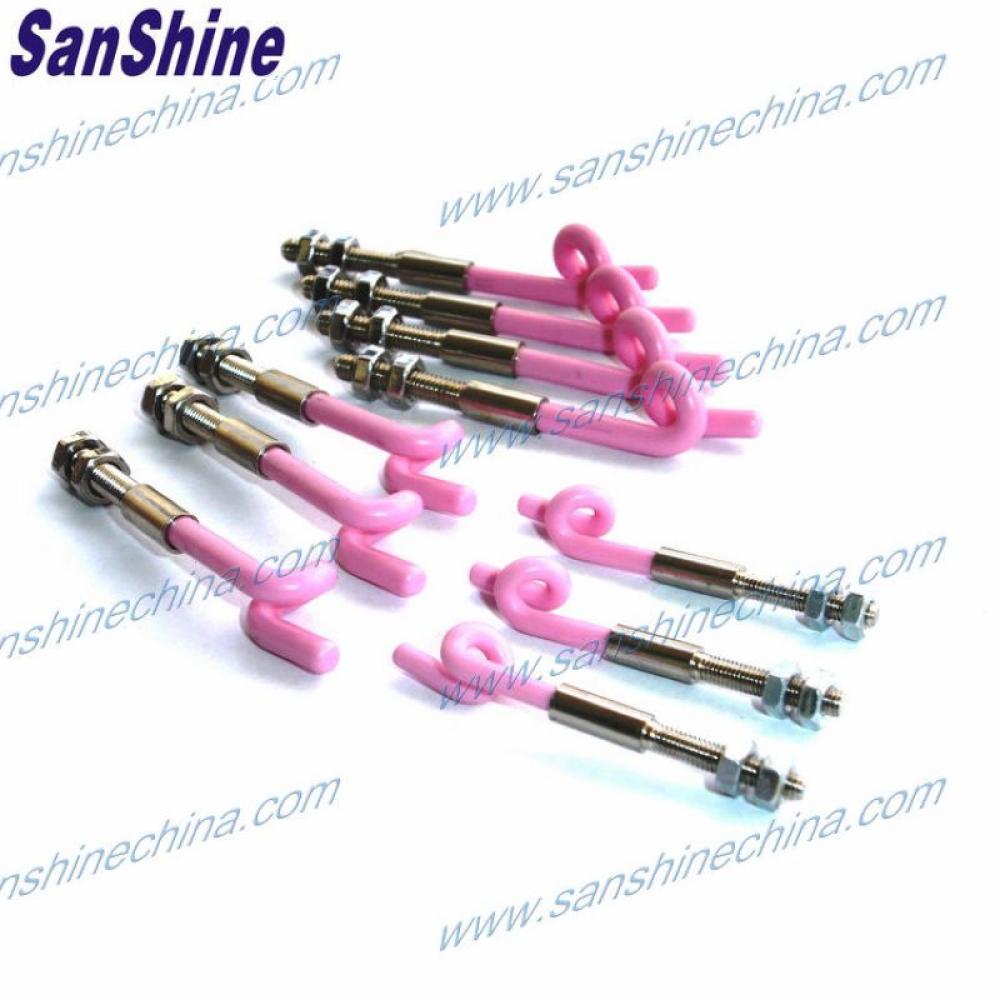

screw type ceramic snail wire guide

This screw type ceramic snail wire guide is used for guiding the wires, cables, strings and yarns.
  • Item NO.:

    Part numbers as list
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Pink
contact now User's reviews
Description

Product name : Screw type ceramic snail wire guide

ceramic snail magnet wire guide

ceramic pigtail guide

Description :

This screw type ceramic snail wire guide provides the convenience of easy threading and making it an attractive alternative cage wire guide pulleys in less critical applications. The ceramic snail wire guide is named ceramic snail enamelled wire guide also. It is highly desirable that the loop, or the guide surface in contact with the wire by thoroughly mirror finished since the wire in this cage traverses against to a non-revolving guide surface. So the ceramic snail wire guide can avoid the insulation surface of enamelled copper wire be not damaged, and protects others wires, cables. protects surface of wire and guide the wire passing smooth. It is widely used for winding machine, textile machine, cable machine, fiber machine etc..

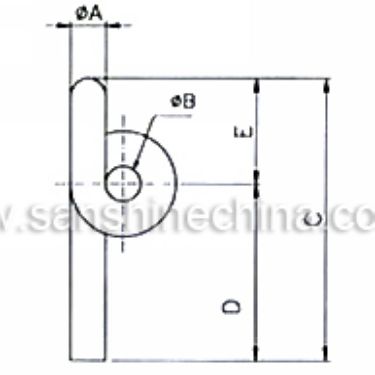

Specification :

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

3

3

28

20

8

4

4

37

26.5

10.5
