Toroid coil enamelled wire nylon winding hook

categories
Toroid coil enamelled wire nylon winding hook Toroid coil enamelled wire nylon winding hook Toroid coil enamelled wire nylon winding hook Toroid coil enamelled wire nylon winding hook

Toroid coil enamelled wire nylon winding hook

The toroid coil enamelled wire winding nylon hook is used for winding toroid coils.

  • Item NO.:

    Part numbers as list

  • Product Orgin:

    China

  • Brand:

    SanShine

  • Shipping Port:

    XIAMEN,CHINA

  • Color:

    White
contact now User's reviews
Description

Product name : Toroid coil enamelled wire nylon winding hook

toroidal core coil winding hook

ring core coil winding hook

toroid coil winding tool

Description of toroid coil enamelled wire nylon winding hook :

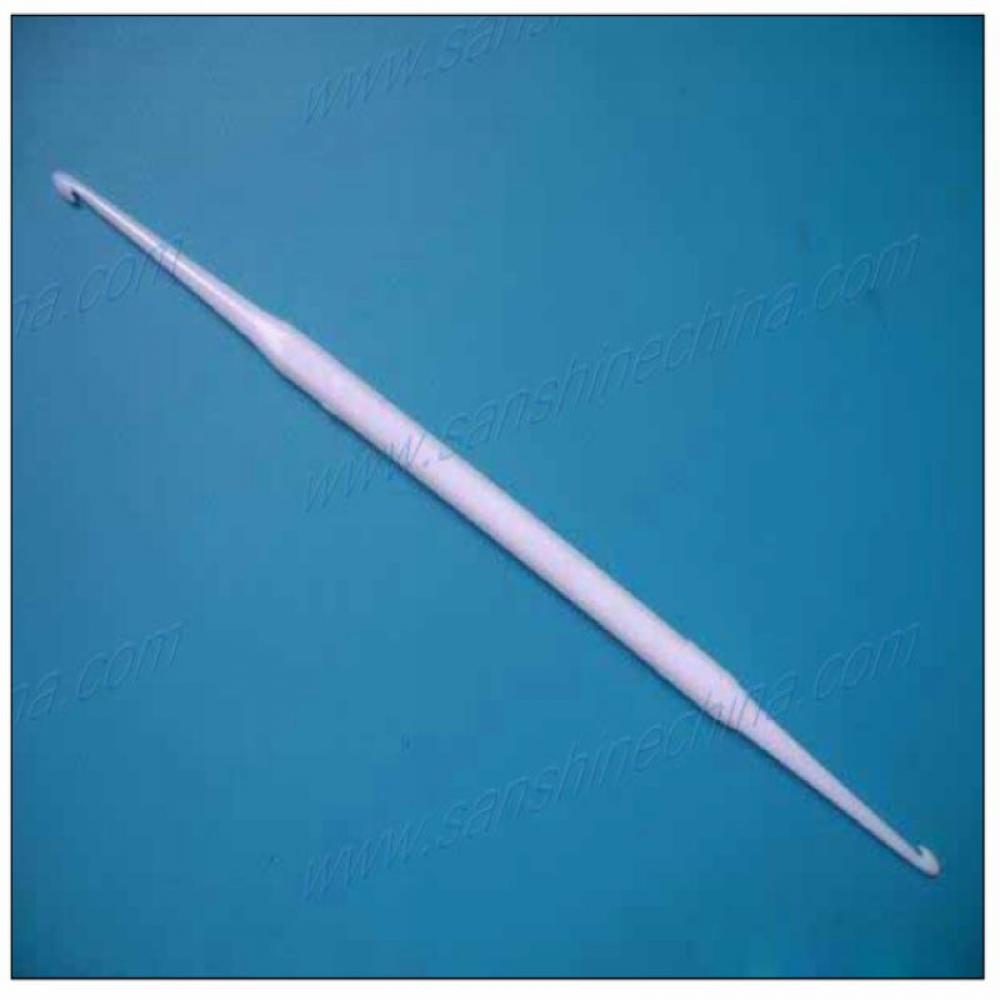

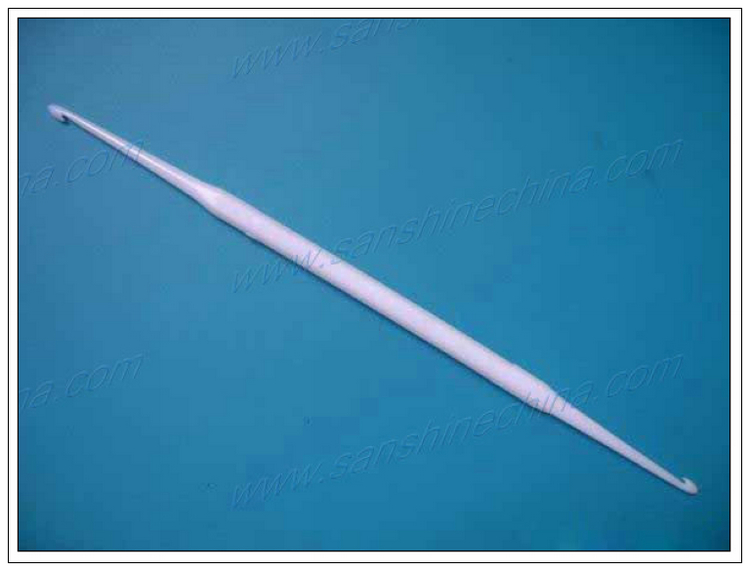

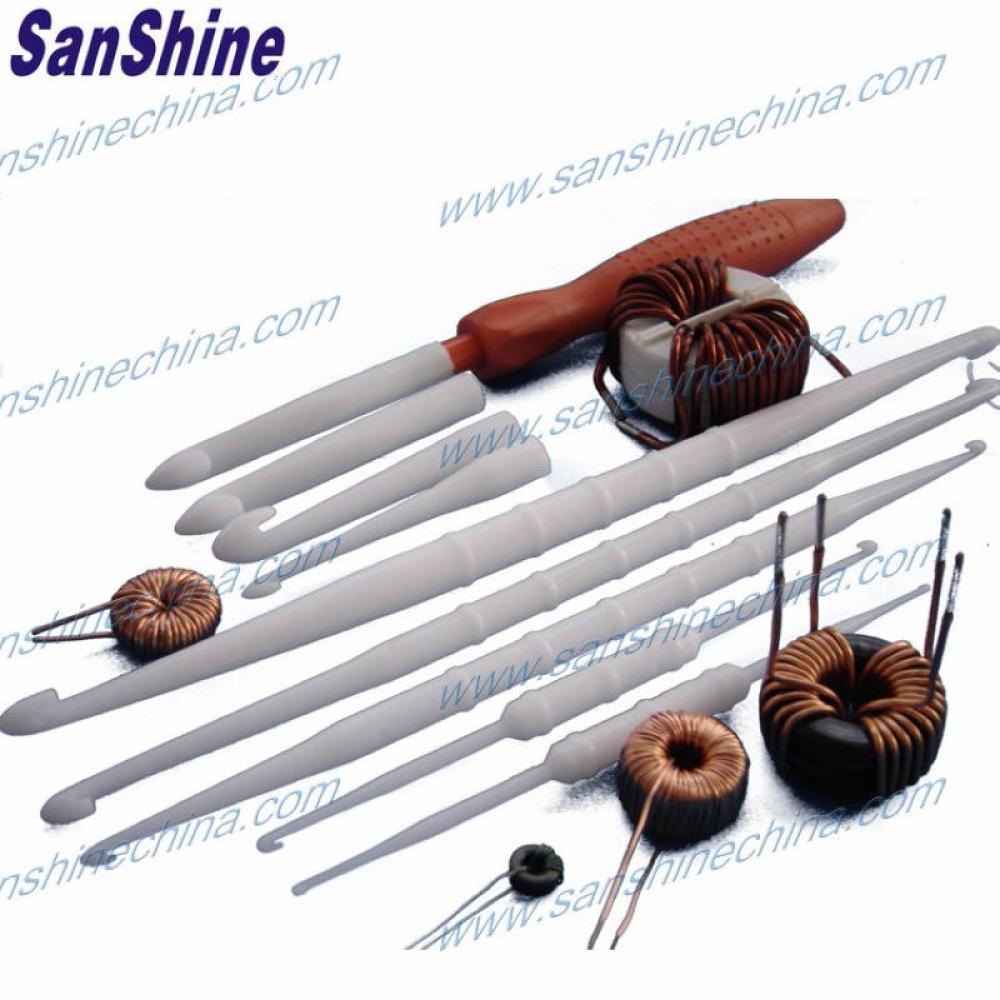

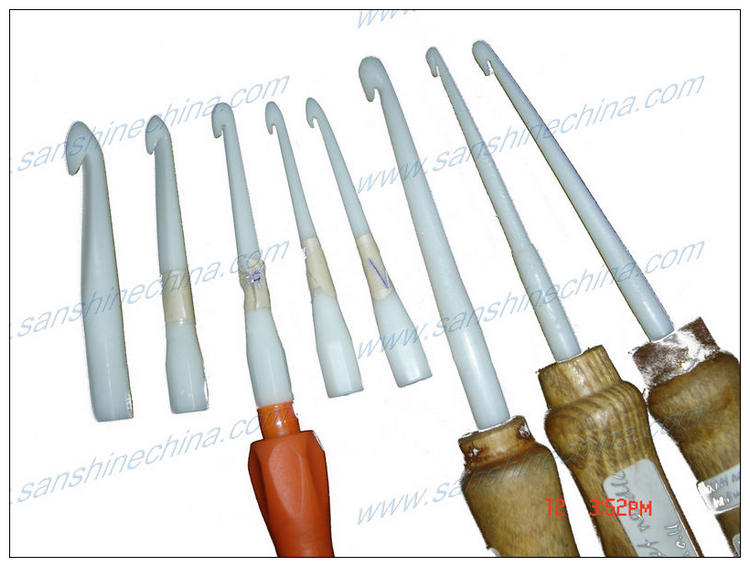

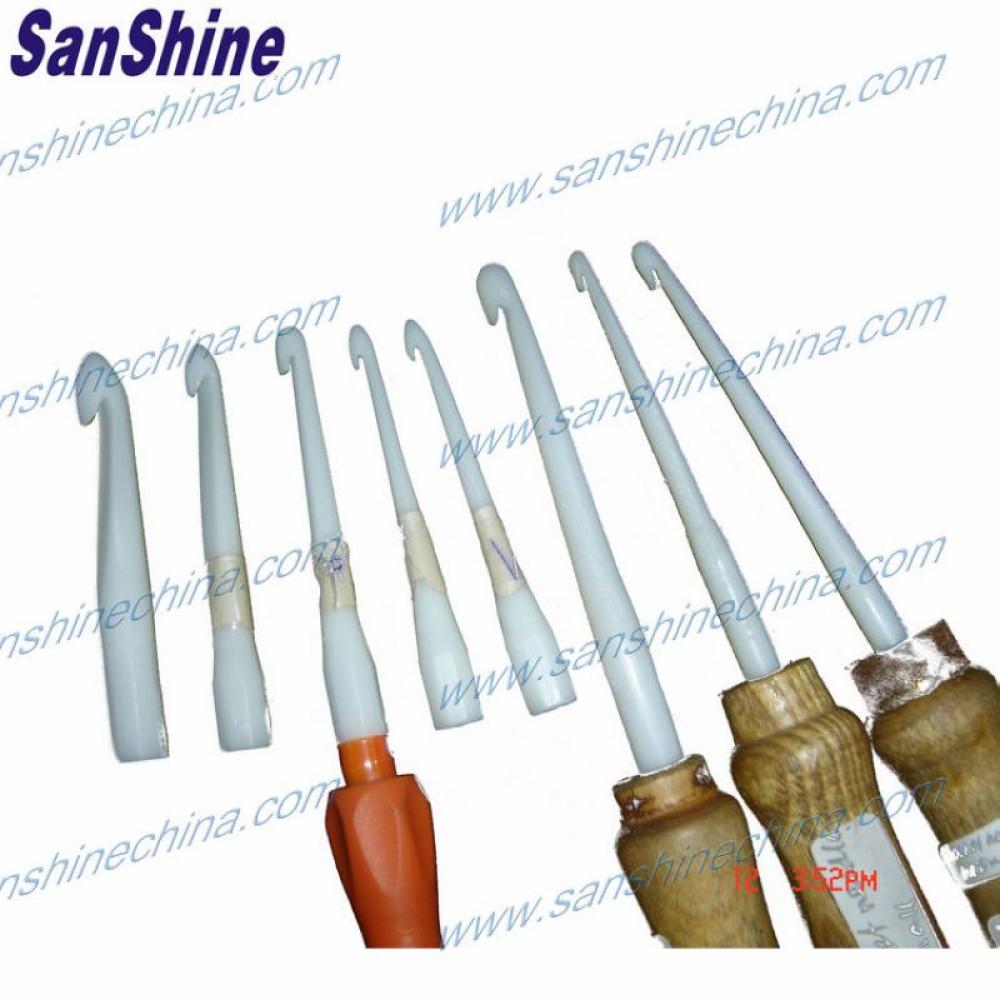

The toroid coil enamelled wire nylon winding hook is made from Teflon, Nylon and etc.. This toroid coil enamelled wire nylon winding hook is one light and handy, high-strength, resilient tool. This toroid coil enamelled wire nylon winding hook is used for winding toroid coil. Make the wire be wraped tightly with the toroidal core. This toroidal winding hook protects the insulation film of magnetic wire to be not damaged. The single hook there are inner screw which can connect with the handle to use (the handle is optional) and used in hook type toroid winding machine. The double hook can be used to wind directly by hand.

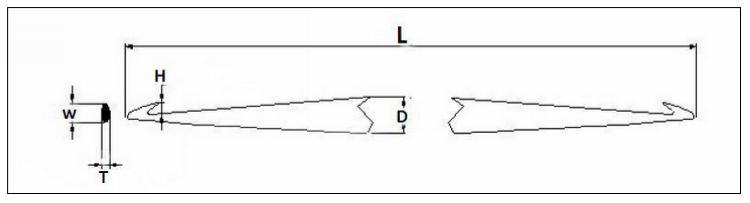

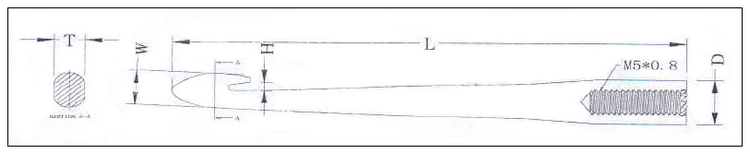

Specification of toroid coil enamelled wire nylon winding hook (refer below measurements drawing) :

Single hook :


Description Part No. Suited wire Dia. (mm)  w(mm) T(mm) H(mm) L(mm) D(mm)
Single hook 28# ≤0.45 2.4 1.5 0.65 73.5 9
Single hook 44# ≤0.5 2.05 1.4 0.7 65.1 9
Single hook 20# ≤0.6 2.38 1.82 0.9 69.5 9
Single hook 18# ≤0.7 3.2 1.7 0.85 66.75 9
Single hook 14# ≤0.7 3.21 2 0.85 68.5 9
Single hook 32# ≤0.7 3.34 2.15 0.86 68.8 9
Single hook 19# ≤0.7 3.8 2.6 0.9 70.5 9
Single hook 9# ≤0.8 3.75 2.3 0.9 73.7 9
Single hook 16# ≤0.8 3.78 2.34 0.9 72.5 9
Single hook 38# ≤1.0 4.34 2.9 1 69.6 9
Single hook 15# ≤1.0 4.66 3.24 1 74.3 9
Single hook L15# ≤1.1 4.7 3.1 1.1 74.2 9
Single hook 10# ≤1.1 5.8 3.4 1.5 74.4 9
Single hook 35# ≤1.2 4.76 3.06 1.2 72.75 9
Single hook 17# ≤1.3 5.8 3.9 1.55 72.6 9
Single hook 37# ≤1.4 6.3 4.46 1.5 73.5 9
Single hook 39# ≤1.5 5.9 3.9 2 73.85 9
Single hook 13# ≤1.5 6.6 6 3.1 74 9
Single hook 30# ≤1.6 6 6 1.75 74.36 9
Single hook 3# ≤1.7 7 4.8 2.1 74 9
Single hook 33# ≤1.8 7 7 2.3 74.4 9
Single hook 4# ≤2.0 9.9 6.85 2.1 73.9 9
Single hook 34# ≤2.0 9 9 2.14 74 9
Single hook 42# ≤2.2 7 5 2.3 73.9 9
Single hook 1# ≤2.5 9.7 7.5 3.8 73.8 9
Single hook 46# ≤2.5 10 10 3.2 73.5 9
Single hook 31# ≤2.8 10 10 4 74.45 9
Single hook 36# ≤3.0 10 10 4 73.9 9
Single hook 49# ≤3.0 11.5 7.5 3.5 73.5 9
Single hook 51# ≤5.0 15 9 5.3 72 9

Hold handle double hook :


Description Part No. Suited wire Dia.  (mm)  w(mm) T(mm) H(mm) L(mm) D(mm)
Hold handle double hook 21# ≤0.14 0.94 0.44 0.2 130 7
Hold handle double hook 12# ≤0.14 1 0.5 0.2 130 7
Hold handle double hook 23# ≤0.14 0.92 0.5 2 130 7
Hold handle double hook 24# ≤0.16 0.96 0.6 0.4 130 7
Hold handle double hook 25# ≤0.16 1.04 0.7 0,44 130 7
Hold handle double hook 8# ≤0.16 1 0.68 0.56 130 7
Hold handle double hook 22# ≤0.16 1.1 0.64 0.4 130 7
Hold handle double hook 7# ≤0.16 1.2 0.86 0.4 130 7
Hold handle double hook 11# ≤0.2 1.48 0.84 0.3 128.6 6.5
Hold handle double hook 26# ≤0.3 1.2 0.7 0.5 128.5 6.5
Hold handle double hook 40# ≤0.36 1.54 1.2 0.4 130 7
Hold handle double hook 6# ≤0.4 1.85 1.34 0.5 130 7
Hold handle double hook 29# ≤0.4 2.1 1.37 0.6 130 7
Hold handle double hook 41# ≤0.45 1.5 0.9 0.6 126 7
Hold handle double hook 27# ≤0.45 2.1 1.4 0.9 130 7
Hold handle double hook 28# ≤0.45 2.2 1.34 0.65 205 7.5
Hold handle double hook 44# ≤0.45 2.15 1.4 0.65 182 8.5
Hold handle double hook 5# ≤0.5 2.22 1.74 1 130 7
Hold handle double hook 50# ≤0.5 2.89 1.74 1 195.9 7.5
Hold handle double hook 120# ≤0.6 2.38 1.82 0.9 202 7.5
Hold handle double hook 47# ≤0.6 2.3 1.62 0.8 223.8 7.5
Hold handle double hook 14# ≤0.7 2.9 1.84 0.85 200 7
Hold handle double hook L14 ≤0.7 3.21 1.84 0.85 220 7
Hold handle double hook 32# ≤0.7 3.26 2. 18 0.86 200 7
Hold handle double hook 18# ≤0.7 3.2 1.6 0.85 200 7
Hold handle double hook 9# ≤0.8 3.1 2 0.8 247 7
Hold handle double hook 16# ≤0.8 3.75 2.34 0.9 215 7
Hold handle double hook L16# ≤0.8 3.78 2.34 0.9 230 7
Hold handle double hook 15# ≤1.0 4.66 3.24 1 200 7
Hold handle double hook 15#(TOKIN) ≤1.0 4.5 3 1.1 197 7
Hold handle double hook L15# ≤1.1 4.73 3.1 1.1 220 7
Hold handle double hook 10# ≤1.1 5.8 3.2 1.5 247 7
Hold handle double hook 17# ≤1.3 5.8 3.9 1.36 225 7
Hold handle double hook L17# ≤1.35 5.8 3.9 1.55 250 7
Hold handle double hook 39# ≤1.5 6 4.16 2 228 7
Hold handle double hook 3# ≤1.77 7 4.8 2.1 246.2 11.62
Hold handle double hook 4# ≤2.0 10 7 2.5 242.2 10
