Item NO.:
SS108 seriesProduct Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:

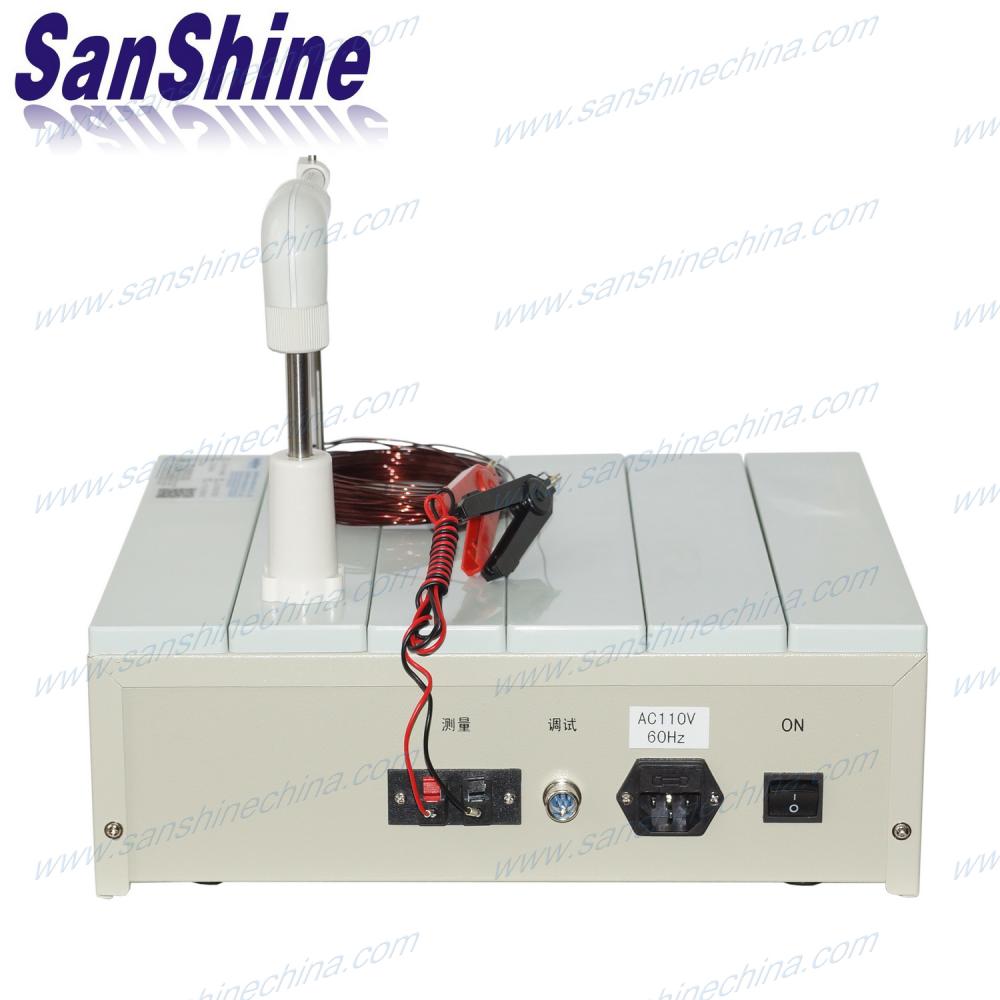

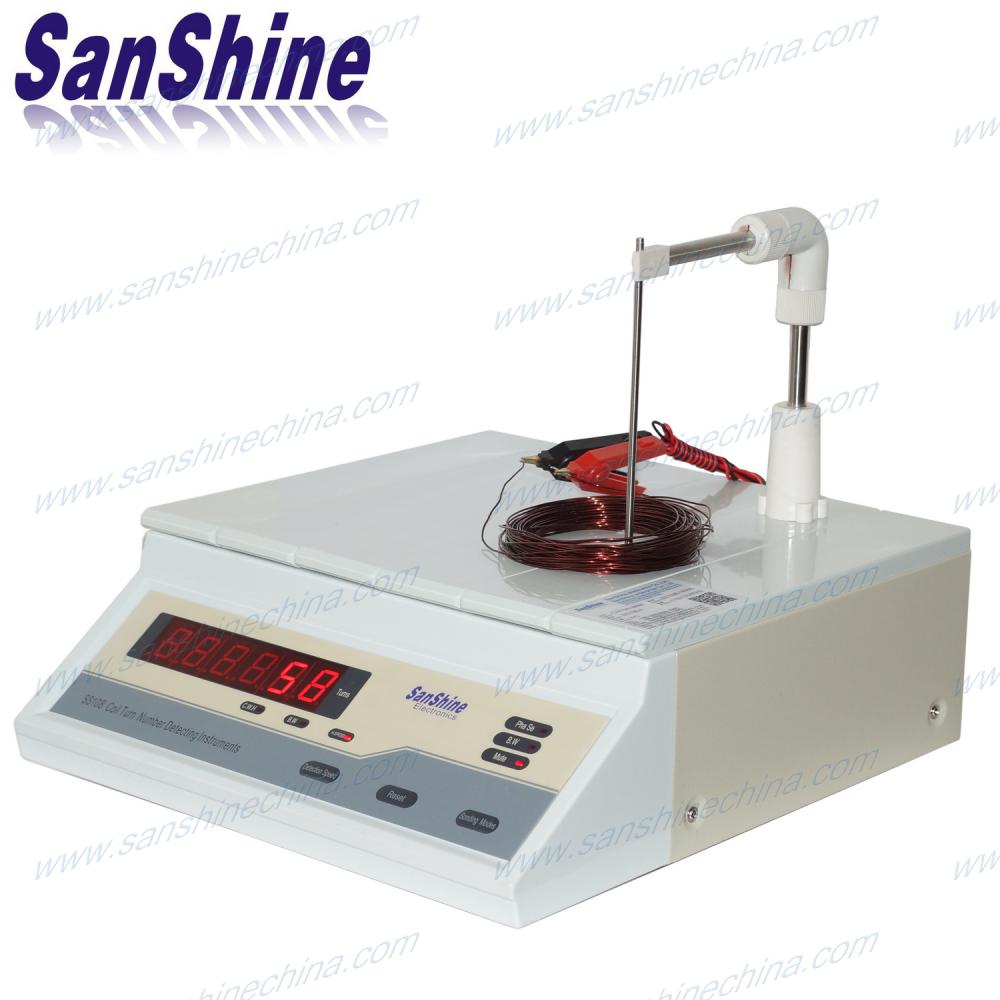

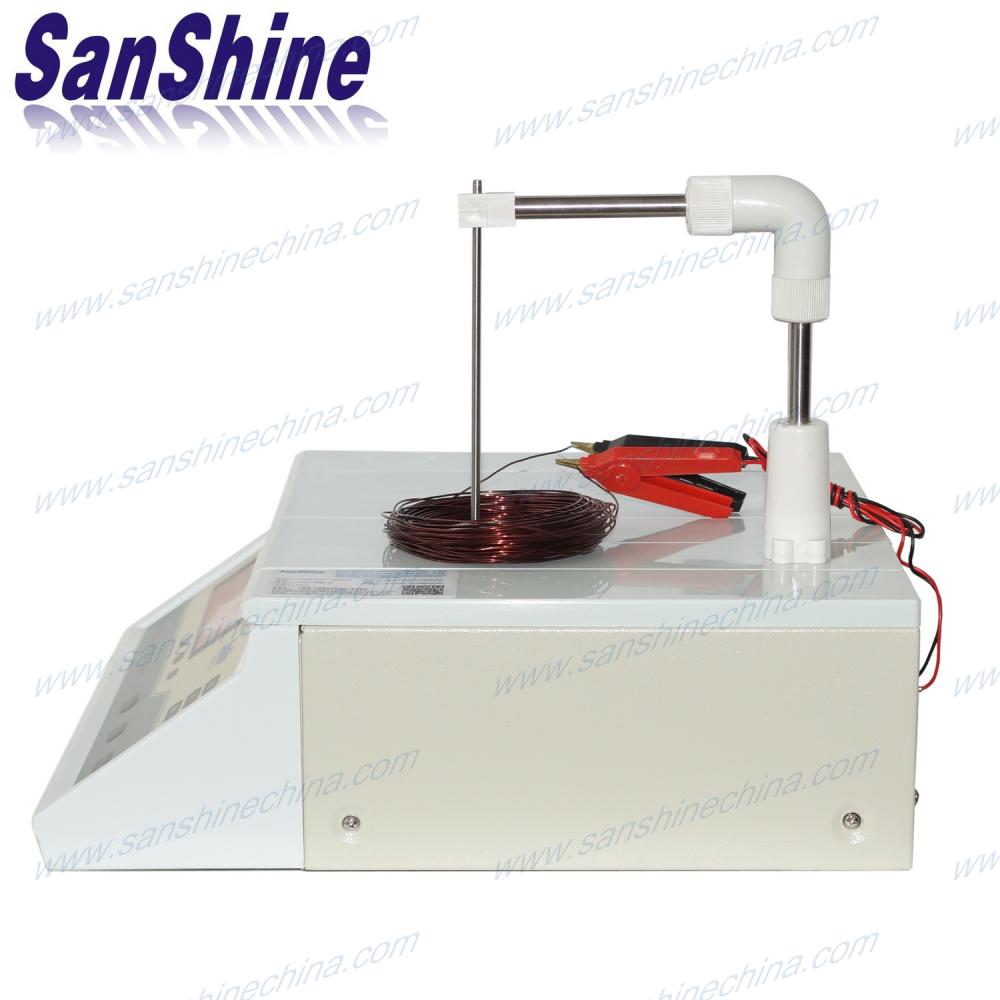

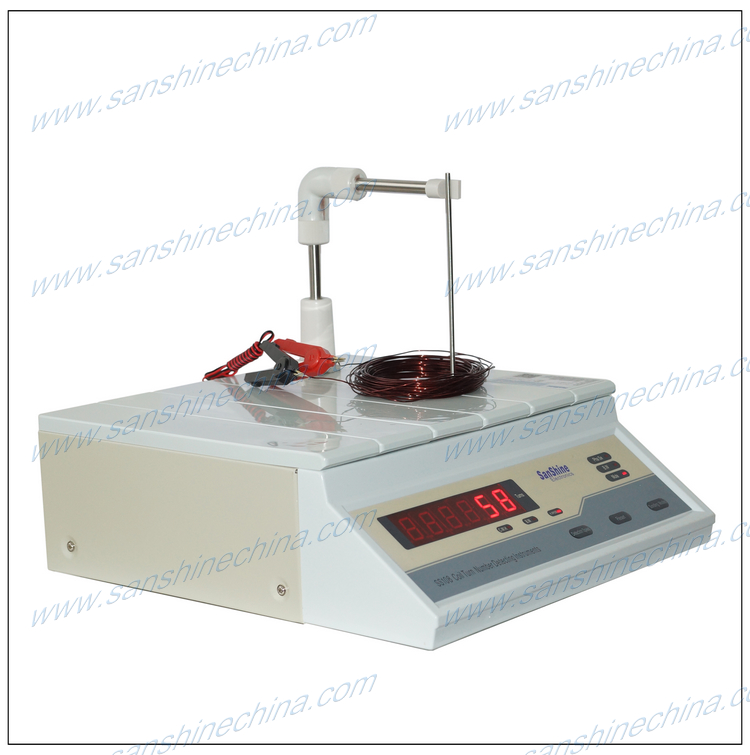

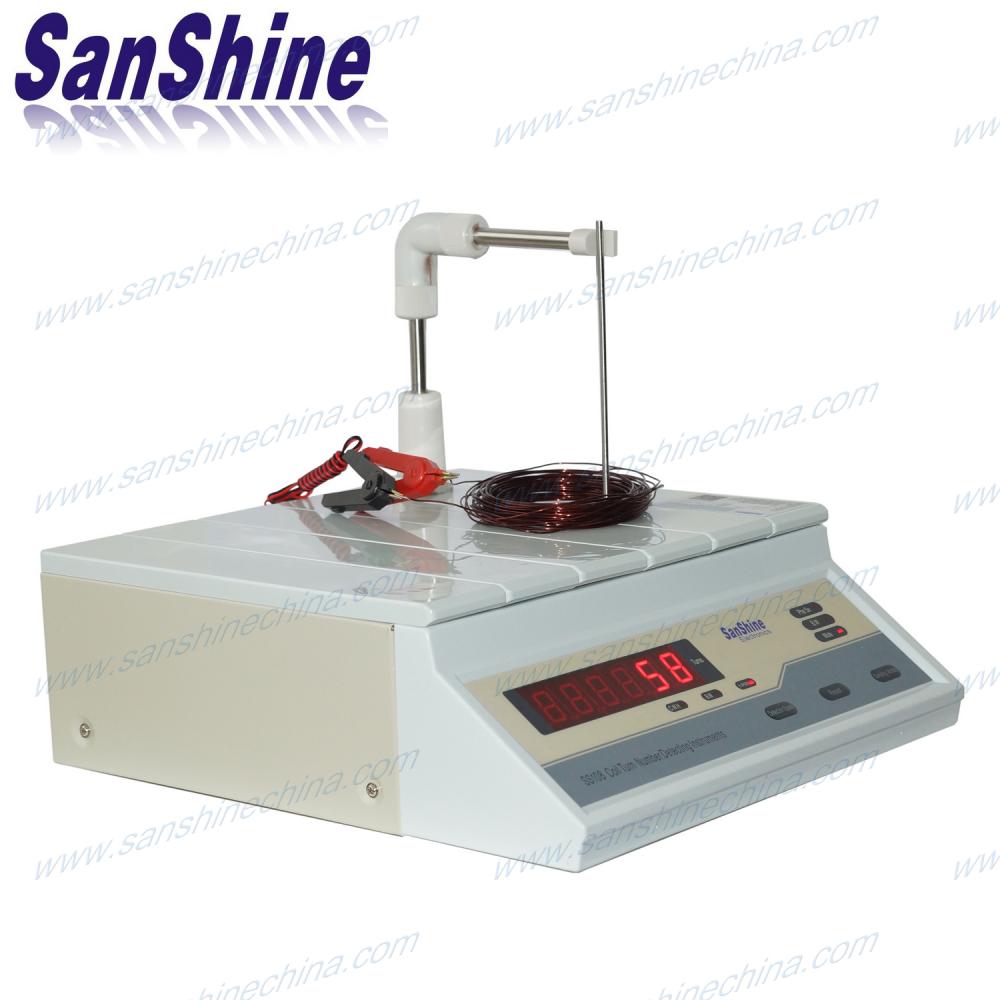

Beige and whiteProduct name : Transformer motor bobbin winding air coil turns tester (SS108 series)
Description :
The transformer motor bobbin winding air coil turns tester (SS108-** series) adopts the high speed center microprocessing unit circuits and precise measurment A/D circuits. This series winding coil turns testers are used for measuring the turns number of various coils without magnet core. Like as: transformer winding coil, relay coi, inductor coil, motor winding, contactor coil, ignition coil, voice coil, etc.. This series winding coil turns number counter is named electromagnetism coil turn meter also. This coil turns number meter is best suited for the manafacturer and repair shop of transformers, motors, relays, inductors, solenoid coils, voice coils and ignition coils, etc. .
Feature :
1. CPU control and digital display.
2. Operation easy, don't need switch the range, automatic range scanning testing.
3. Accuracy: 0.2%.
4. 5 digital counts display.
Specification :
Model | SS108-10 | SS108-6 | SS108-4 | SS108-X |
coil inside diameter | >10mm | >6mm | >4mm | specially size can be customized |
coil outside diameter | <120mm | |||
coil height | <110mm | |||
testing rod diameter | 10mm | 6mm | 4mm | |
coil turns range | 0 ~ 60000T | |||
testing accuracy(tolerance) | 0~300T± 0T, 300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5% | |||
testing speed | fast 3 Measurements /s, slow 1.2 Meas. /s | |||
weight | 7Kgs | |||
measurement | 370*220*110mm |
