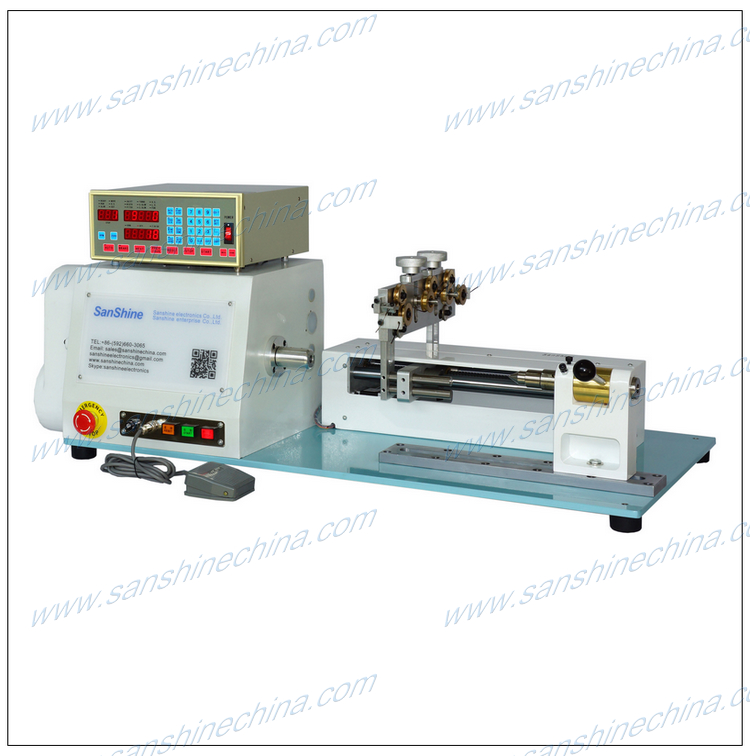

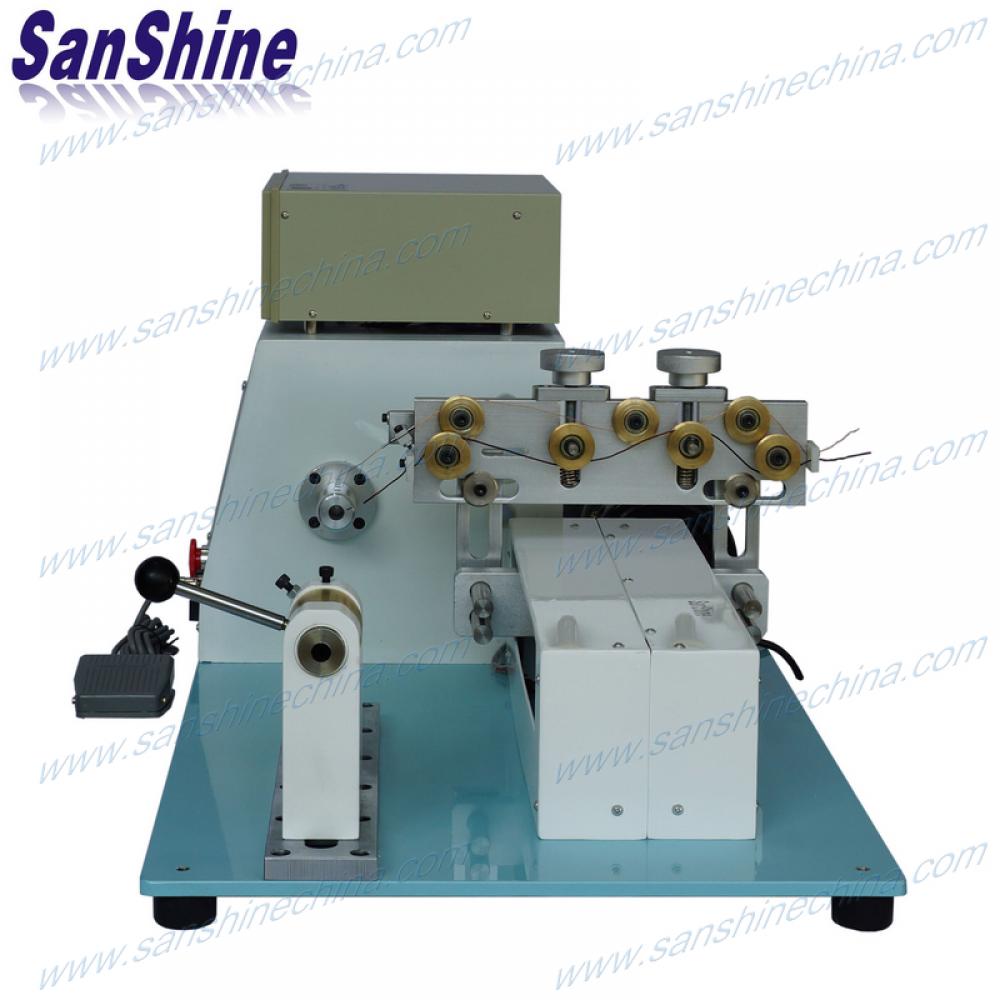

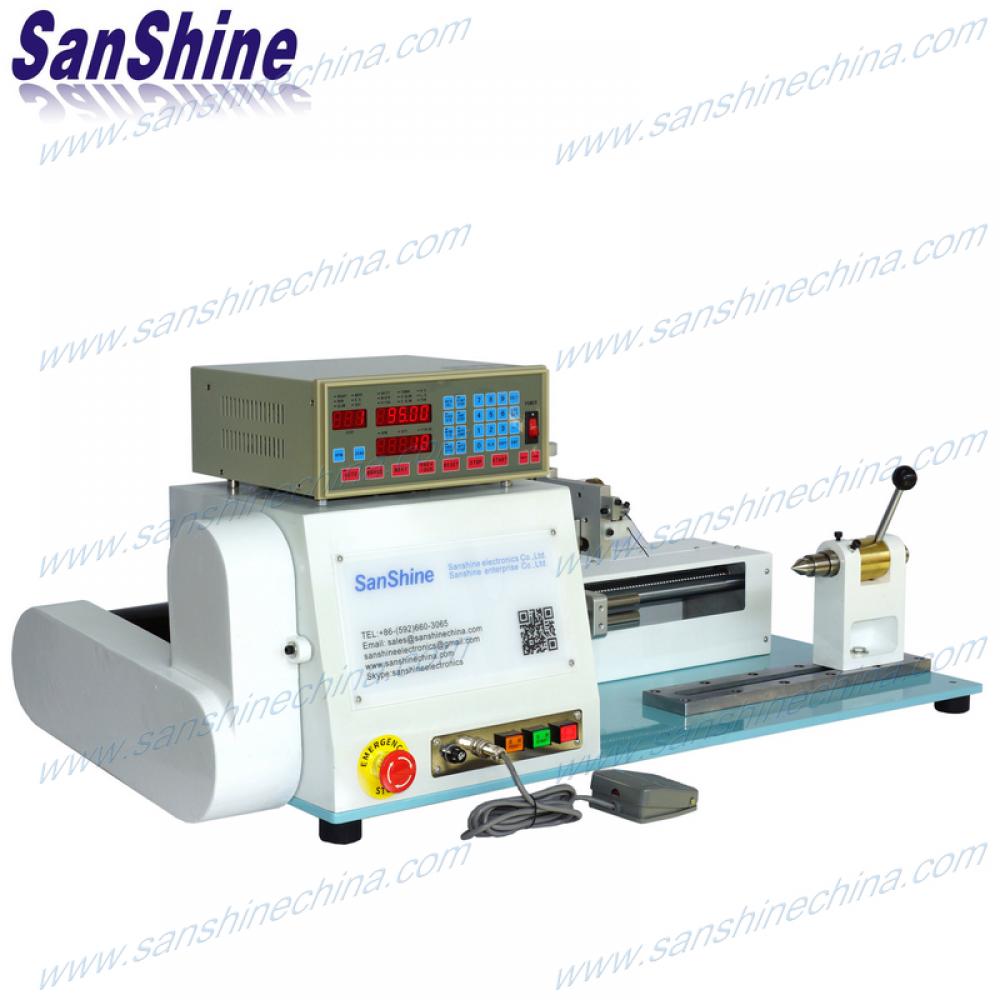

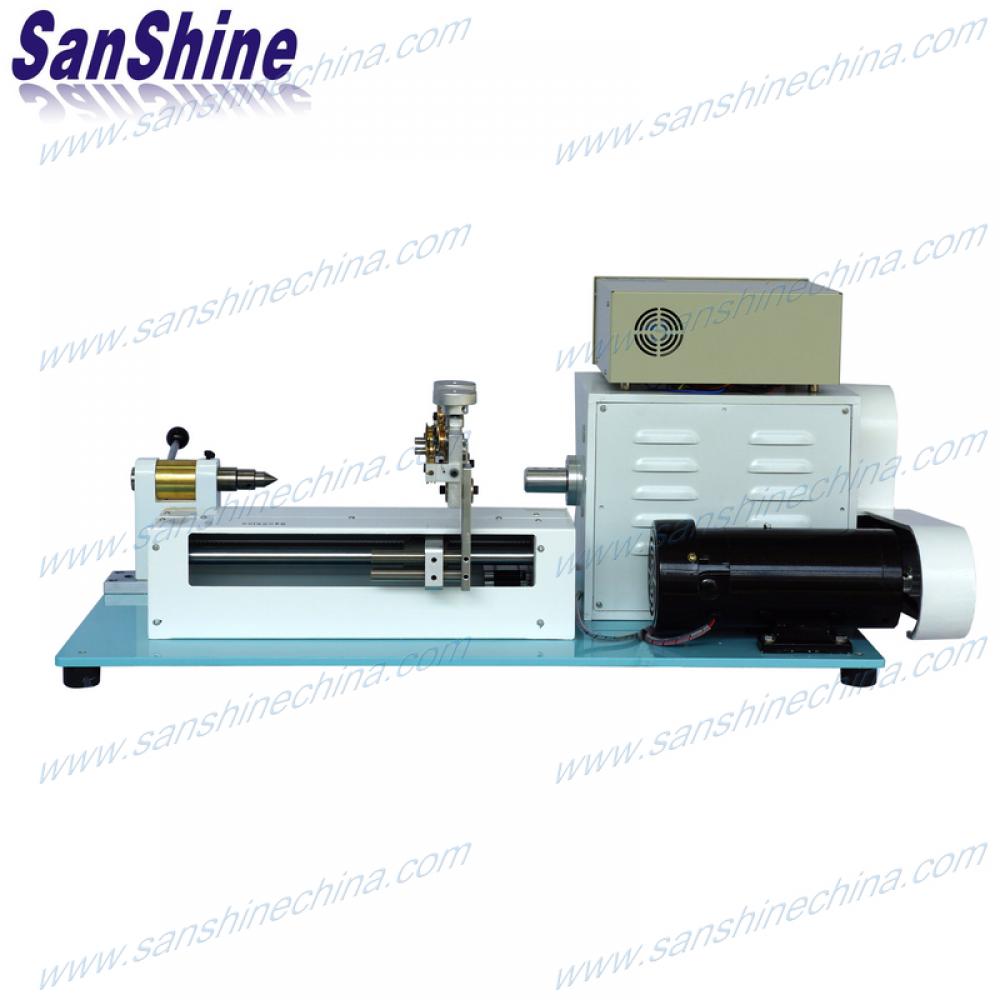

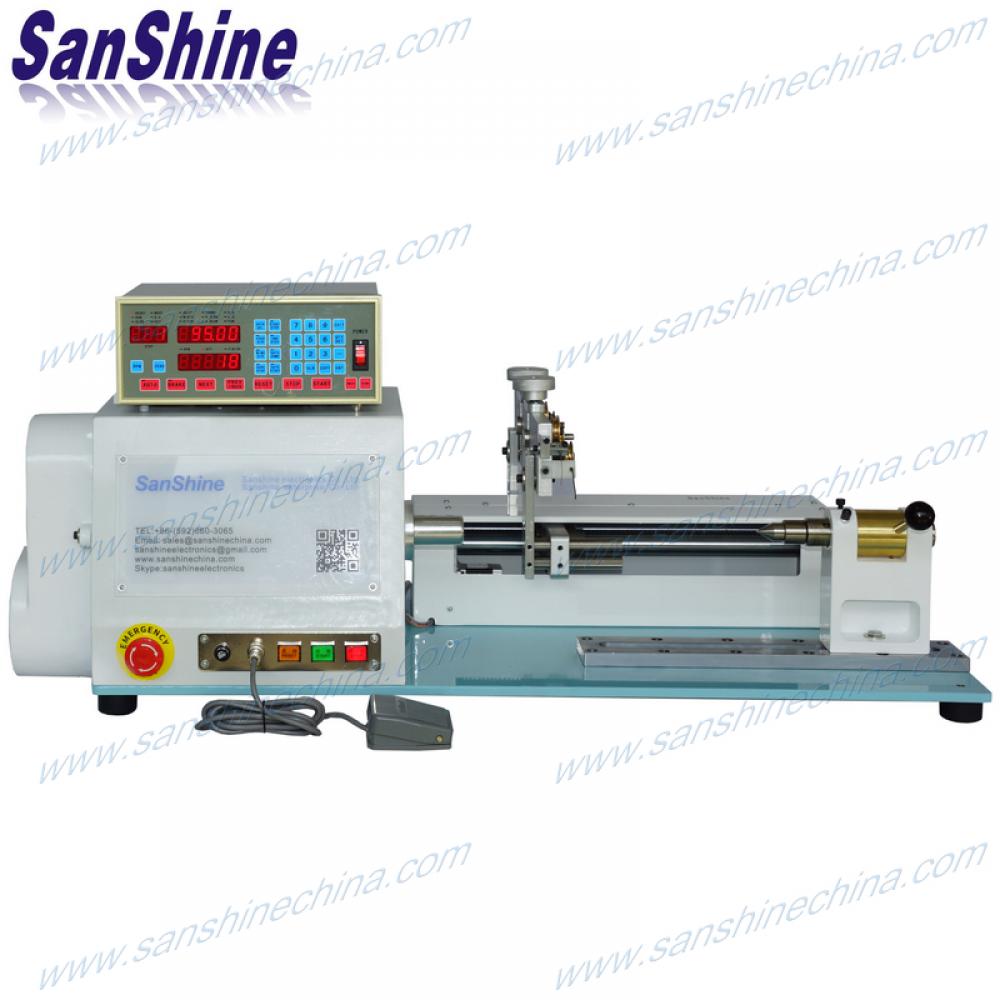

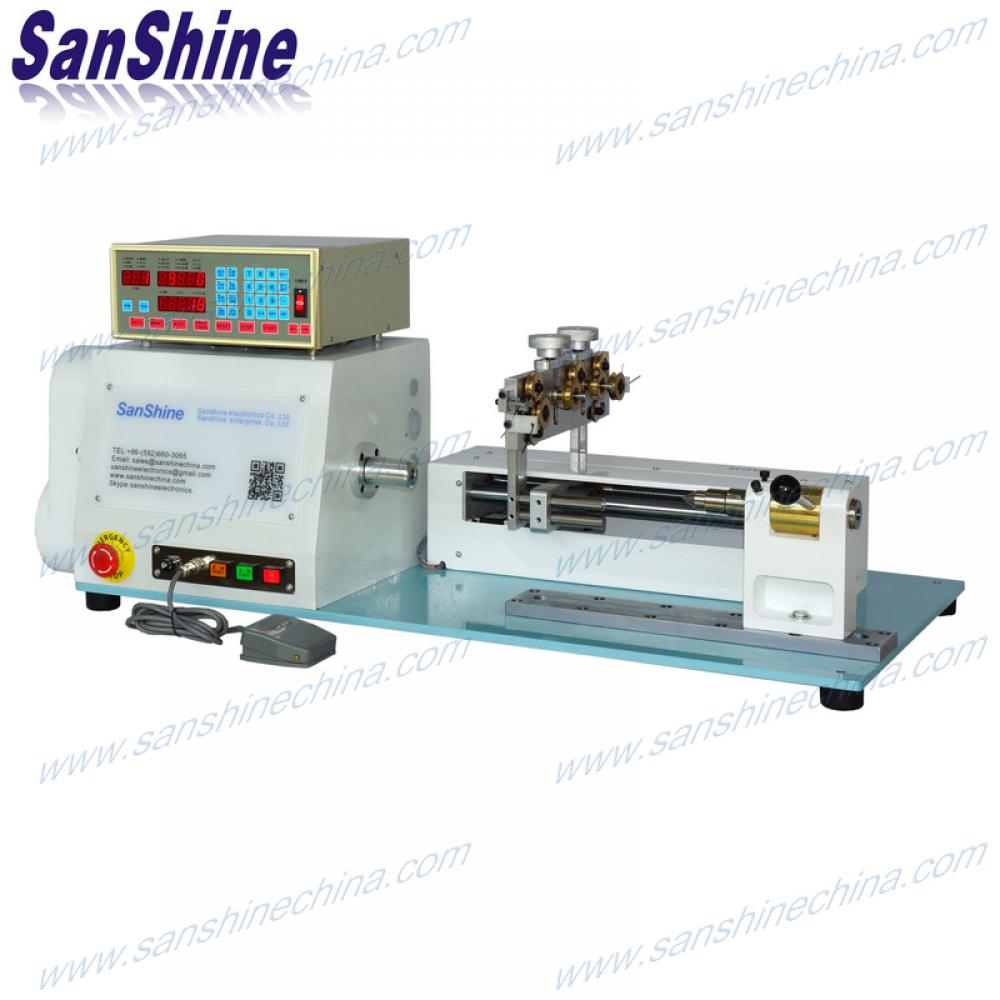

Automatic high torsion long traverse coil winding machine

The automatic high torsion long traverse coil winding machine (SS851A) is a CNC type programmable winding machine with wire spreading big width capacity and high torision DC winding motor. This winder Maximum wire diameter capacity can reach 5.0 mm for small coil. The coil winding machine (SS851A) is the best choice for winding the long length and big coil with thick wire. It is named high torsion long length wire spread coil winding machine and big width wire spread thick wire coil winding machine.

Item NO.:
SS851A
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
White and blue

contact now User's reviews

Description

Product name : Automatic high torsion long traverse coil winding machine (SS851A)

long wire spread length thick wire bobbin winder

high torsion long length traverse wire spool winding machine

high torsion long length traverse reactor coil winding machine

Description :

The automatic high torsion long traverse coil winding machine (SS851A) is a CNC digital Programmable coil winding machine with the capactiy of long length traverse and high torsion DC winding motor. This winder Maximum wire diameter capactiy can reach 5.0mm if the finished coil outside diameter less than 55mm. The winding machine (SS851A) can wind the thick wire and spread the enamelled wire during winding the long length coil easy and precise. This wire winding machine (SS851A) is named high torsion big width wire spread thick wire winding machine, long traverse length big diameter wire coil winding machine and long length traverse reactor coil winding machine. This machine is the best choice for winding big inductor, big reactor coil, big power transformer, big motor coil, generator coil secondary winding, reactive coil, electric power transformer and for big and long coil of thick wire. The winding machine (SS851A) can be customized according to coil size by requested.

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Multiple spindles winding synchronal for highest efficiency.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set.

Specification :

Model	SS851	SS852	SS851A	SS851AL
Spindle Number	1	2	1	1
Wire diameter	0.05~5.0mm	0.05~1.6mm	0.05~5.0mm	0.05~3.8mm
Spread pitch	0.001~9.999mm
Spread width(traverse)	Max. 230mm	Max. 230mm	Standard 360mm, Customize Max.700mm	Max. 400mm
Finished coil diameter	Max. 200mm	Max. 110mm	Max.200mm	Max. 500mm
Winding motor	500W DC Motor
Spread motor	4-Phase Stepper Motor
Max. speed	2500 RPM
Memory capacity	999 Steps
Power source	AC220V /110V + 10%, 50/60 Hz
Dimension(cm)	70x52x60	70x52x60	120x52x60	120x94x66
Net weight	42Kgs	44Kgs	55Kgs	110Kgs
