Front three spindles programable automatic coil winding machine

The front three spindles programable automatic coil winding machine (SS863) is used for winding the small transformers, inductors, relays. This winding machine be called pulse transformer coil winding machine and AC current sense transformer winding machine and RM rectangular modular transformer winding machine also.

Item NO.:
SS863
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
White

contact now User's reviews

Description

Product name : Front three spindles programable automatic coil winding machine (SS863)

Description :

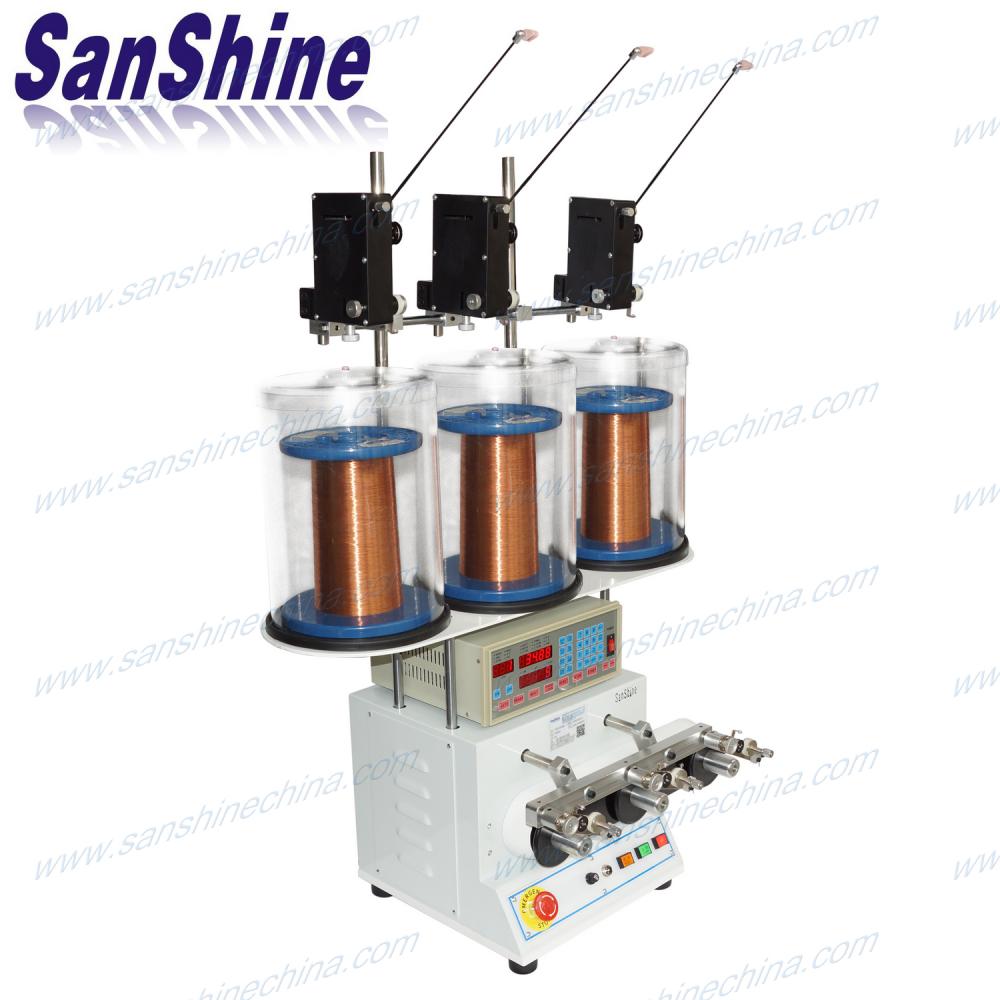

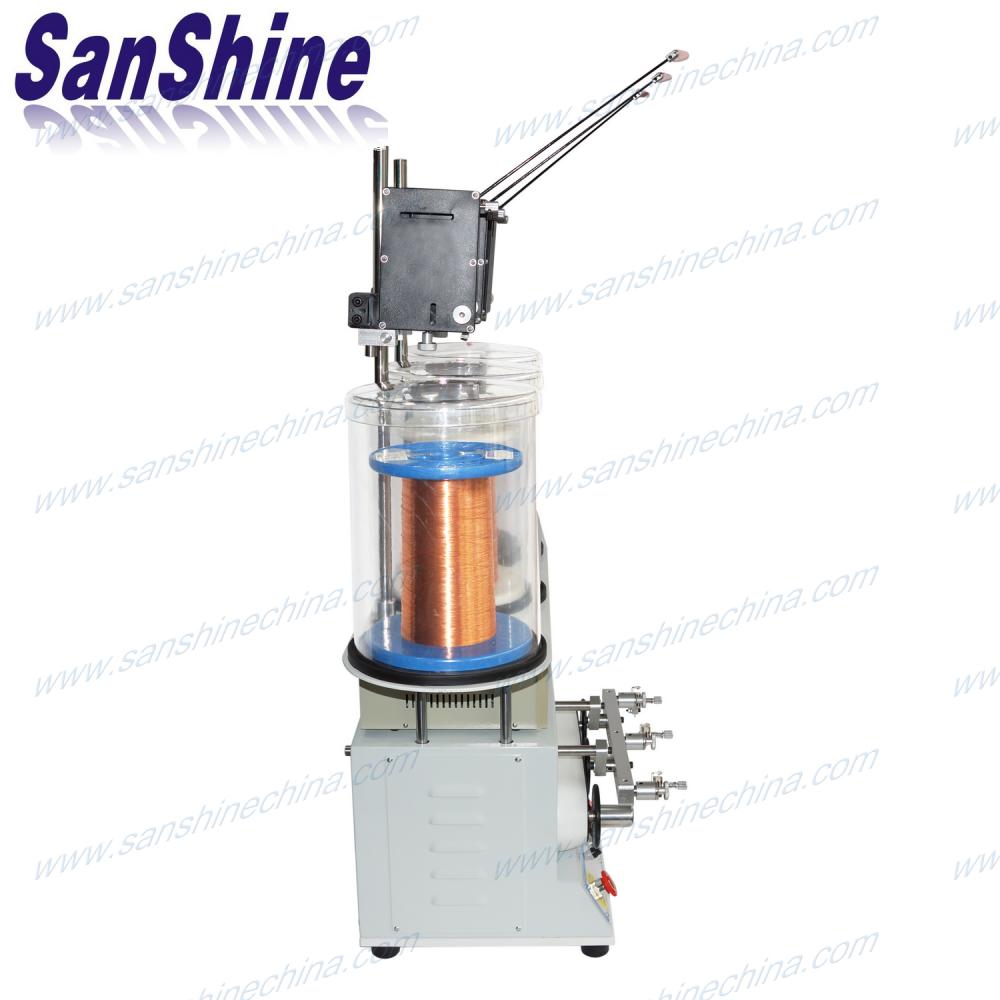

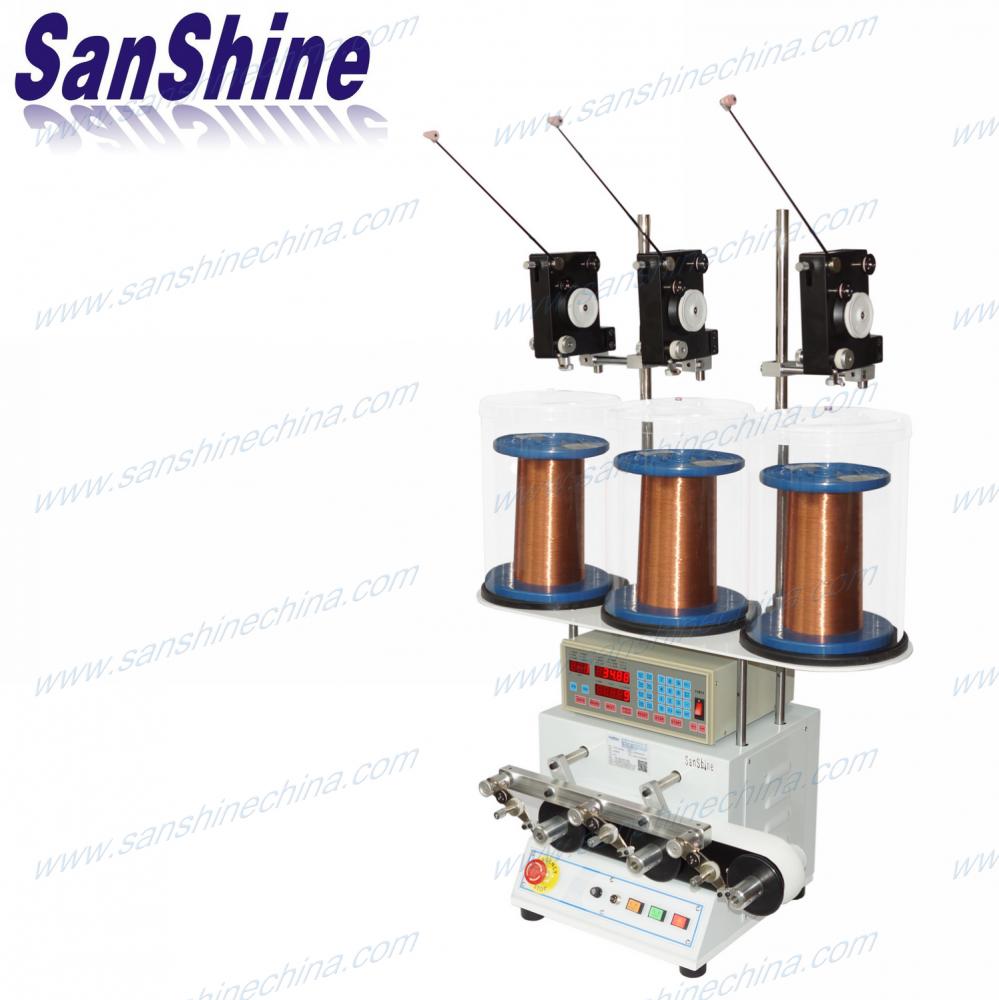

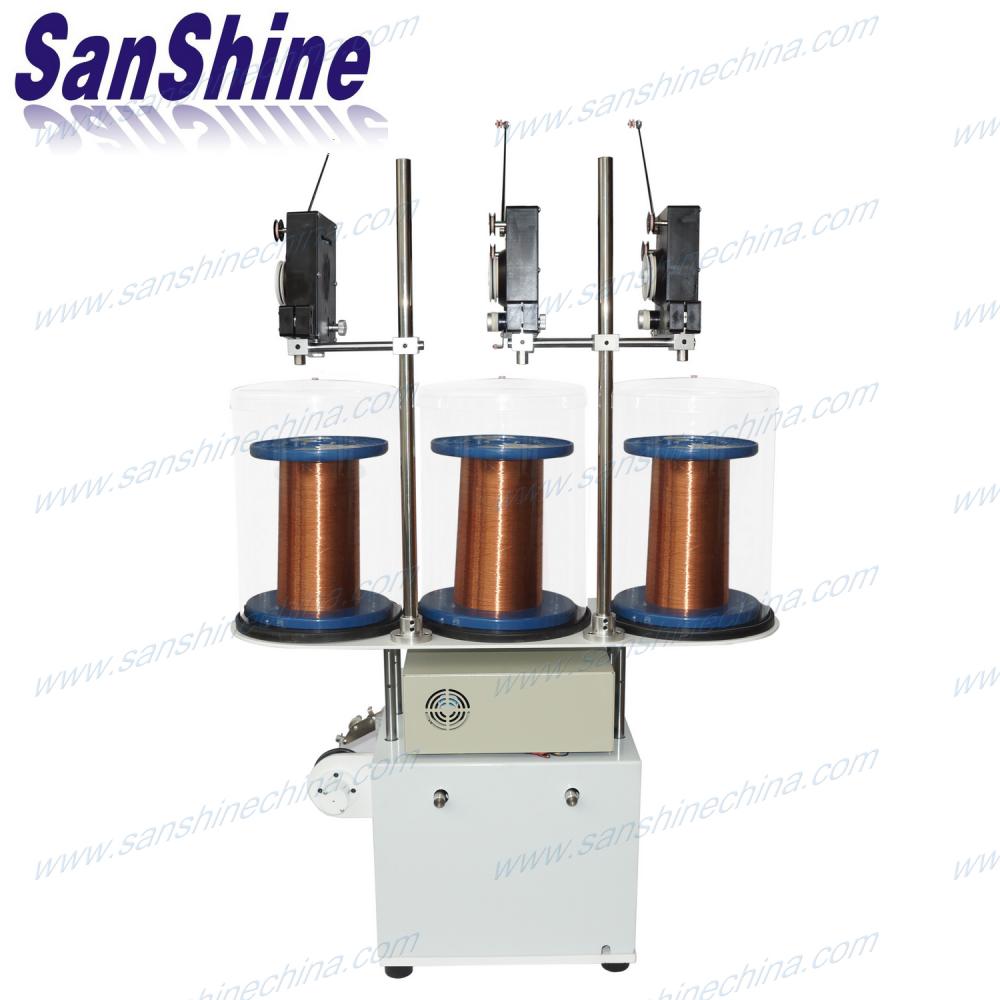

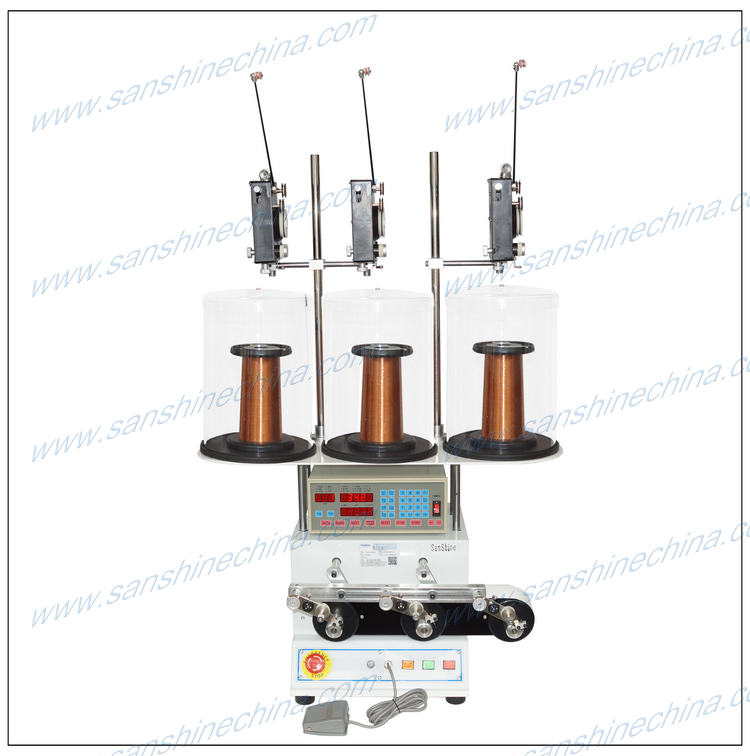

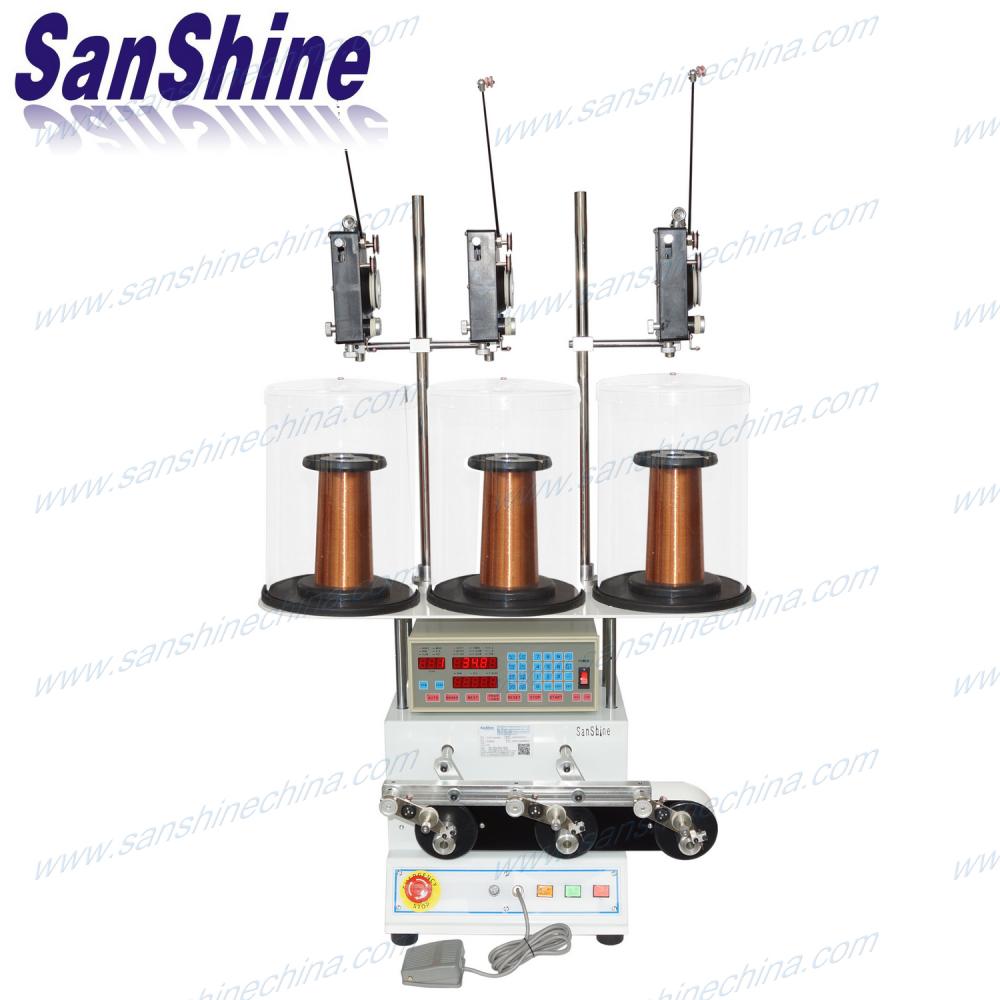

The Front Three Spindles Programable Automatic Coil Winding Machine (SS863) is a digital programmable high speed coil winding machine. This winding machine adopts the front type winding spindles of the winding machine base. Adopts the wire tensioner with the nozzle type wire spreading head so that make sure the fine wire be winded in precise and perfect under high speed. This coil winding machine is the highest efficiency equipment which make the three pieces winding spindles to wind coils in synchronously. This three spindles winding machine is named low frequency transformer winding machine and three spindles automatic coil winding machine also. This winder is best choice for winding transformer, inductor, relay, ignition, contactor, electric valve, etc. .

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.

3. "Start Point " could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire spreading by nozzle type spreading head.

5. Wire passing through ceramic rollers prevent enamel from high temperature.

6. Multiple spindles winding synchronal for highest efficiency.

7. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

10. Wire tensioner with nozzle type wire spreading head to make sure the fine wire be winded in precise and perfect under high speed.

Specification :

Model	SS861	SS862	SS863	SS864
Spindles	1	2	3	4
Wire size	0.03~0.8mm(Depends on Tensioner & Nozzle)
Spread pitch	0~9.999mm
Spread width	100mm (Max. )
Coil diameter	100mm (Max. )
Main motor	Brushless Motor
Spread motor	Stepping motor
Max. speed	6000RPM
Memory	999 Sequences
Power source	AC220V /110V ±10%, 50/60 Hz
Dimension (cm)	45x67x100	50x67x100	75x67x100	100x67x100
Net weight(Kg)	45	50	55	60
