Item NO.:
SS-SM05Product Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:
Red and blackProduct name : Bench twin fiberglass wheel wire stripping machine (SS-SM05)
Description :

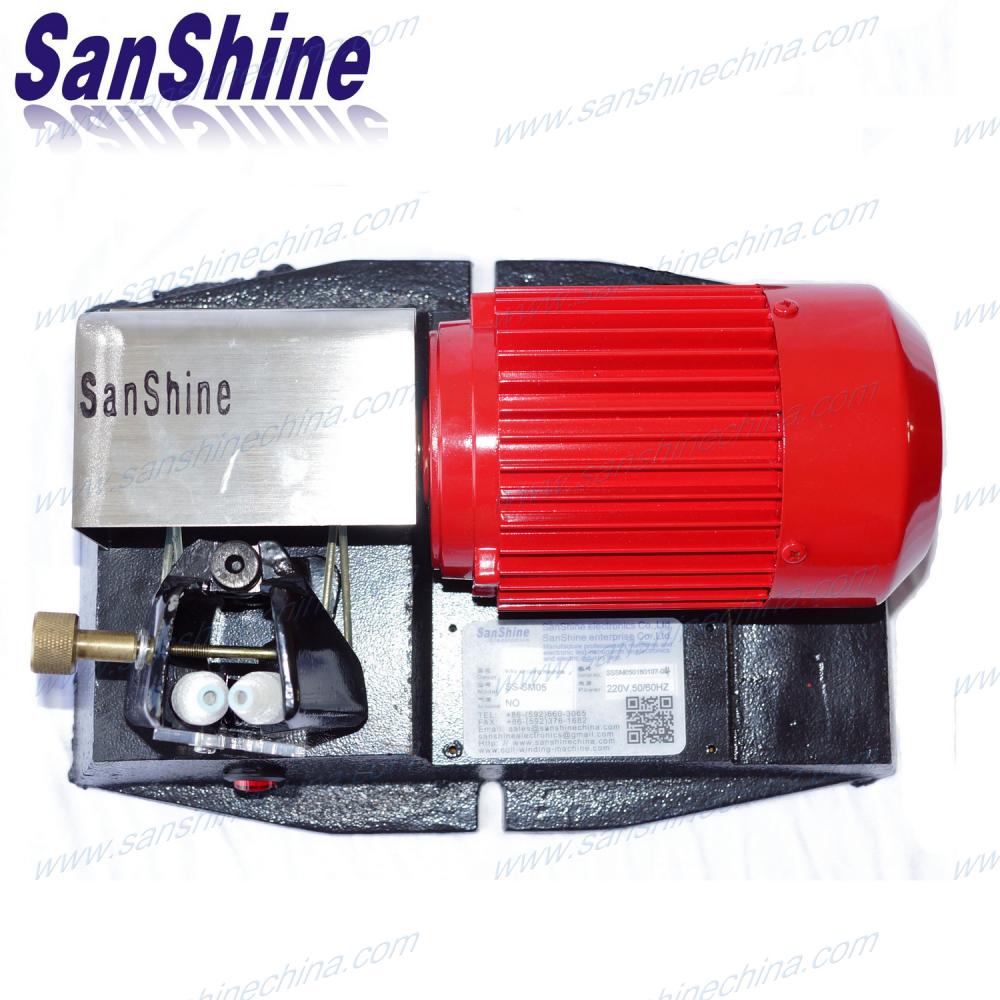

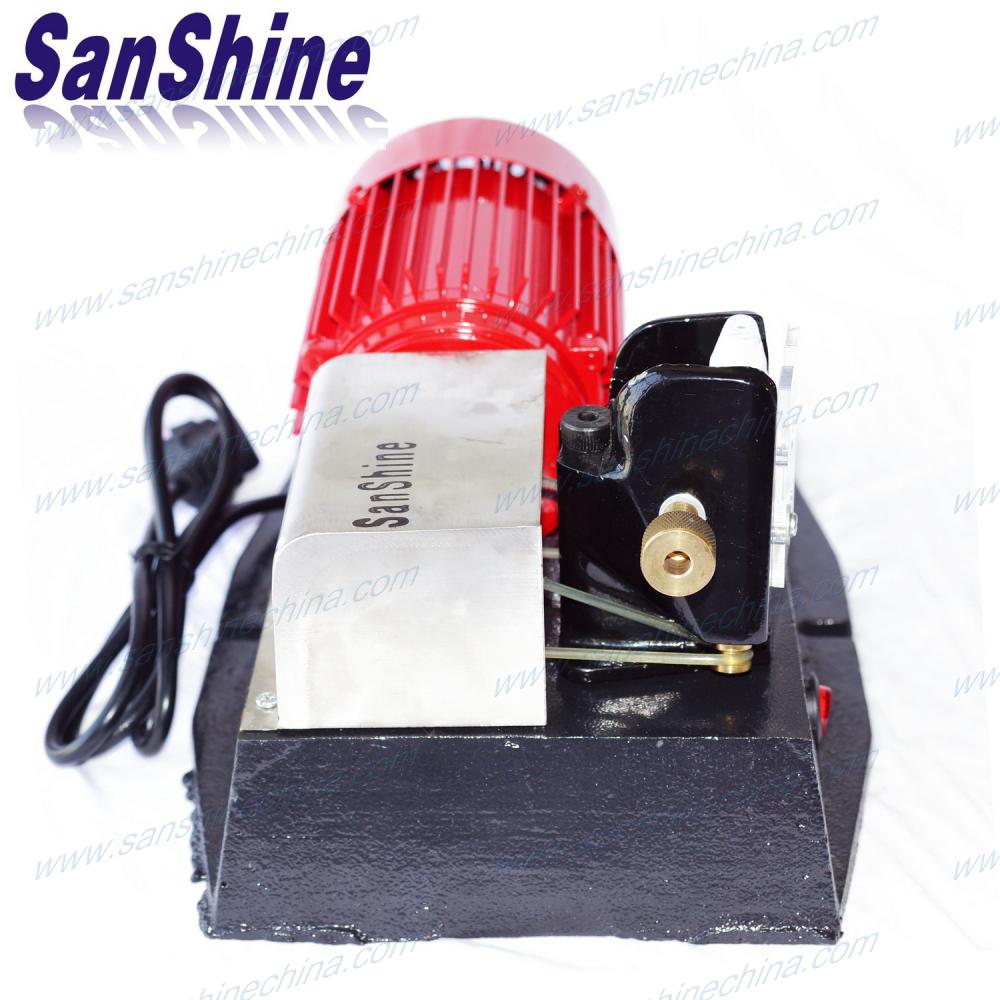

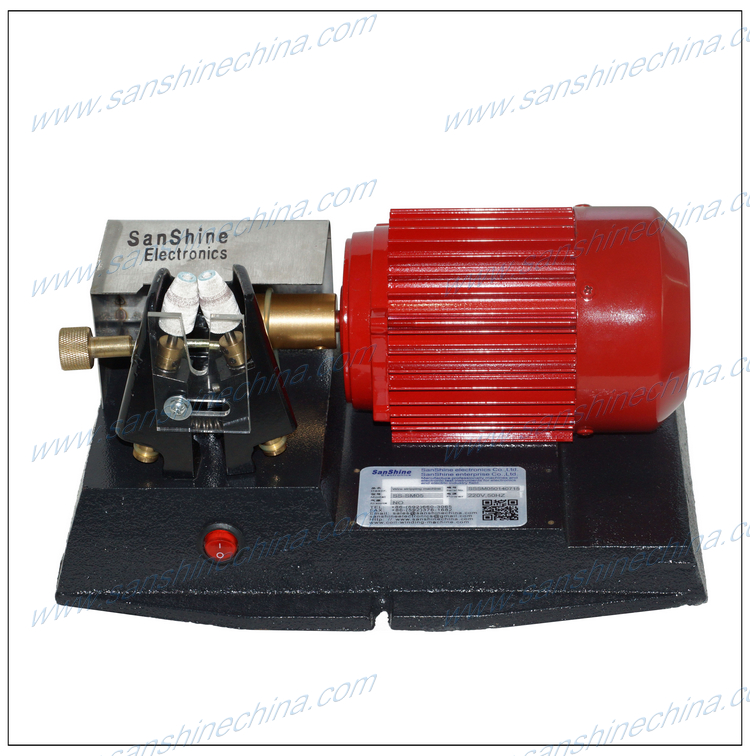

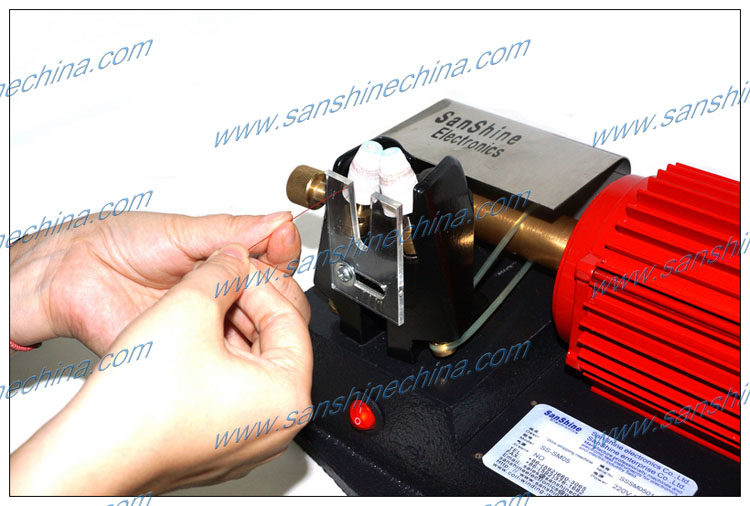

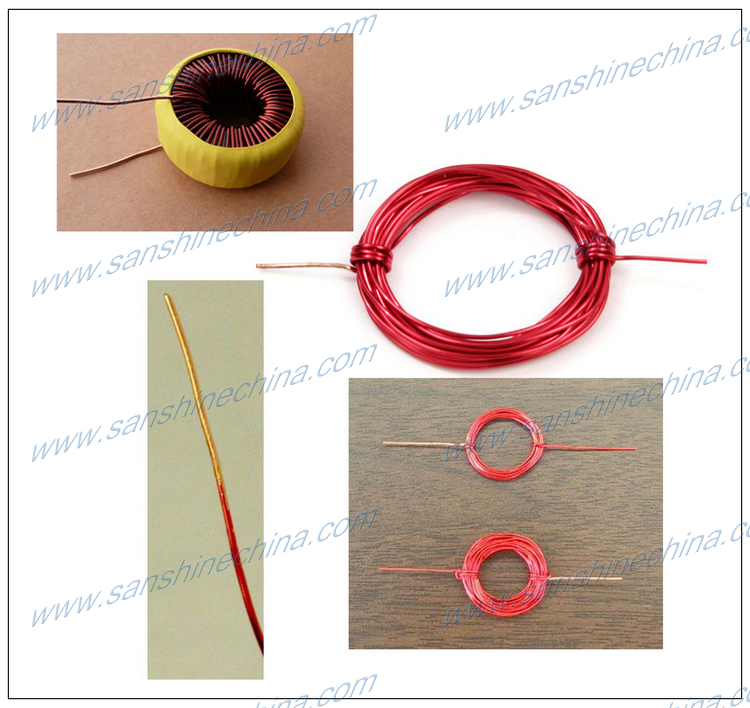

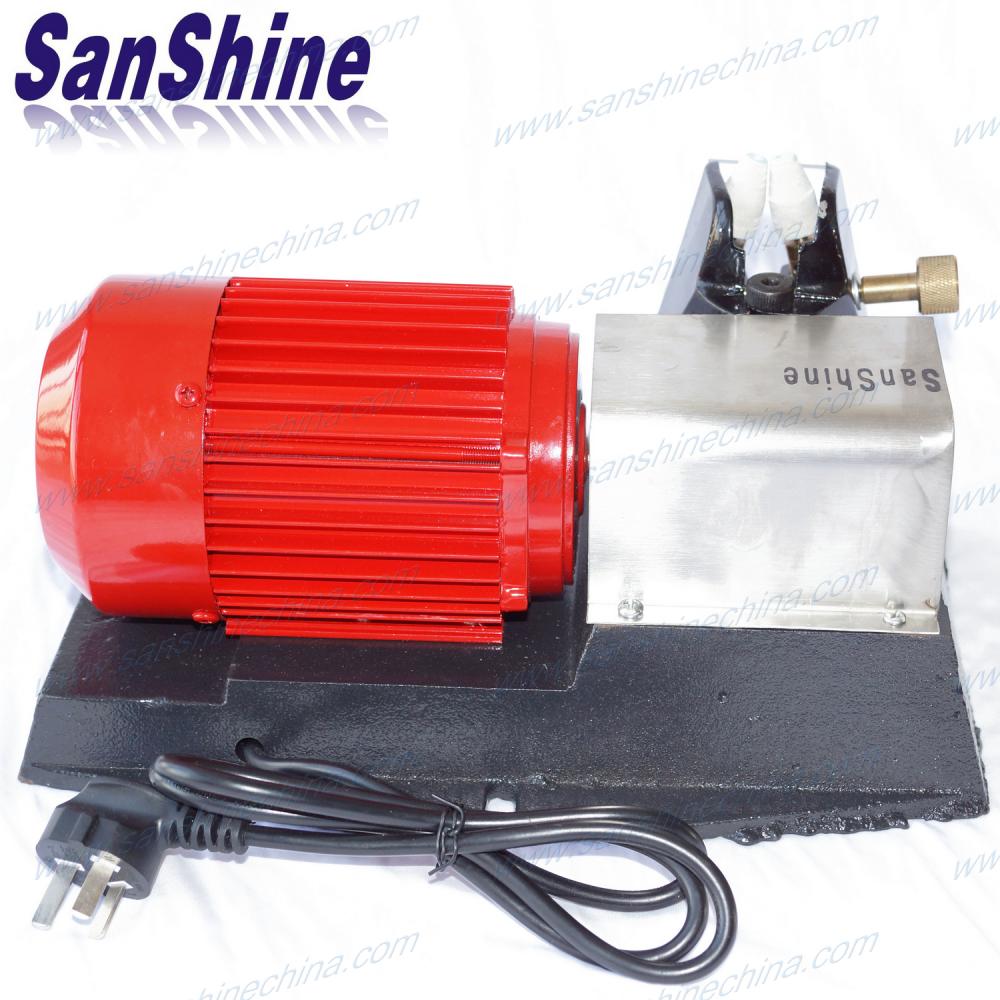

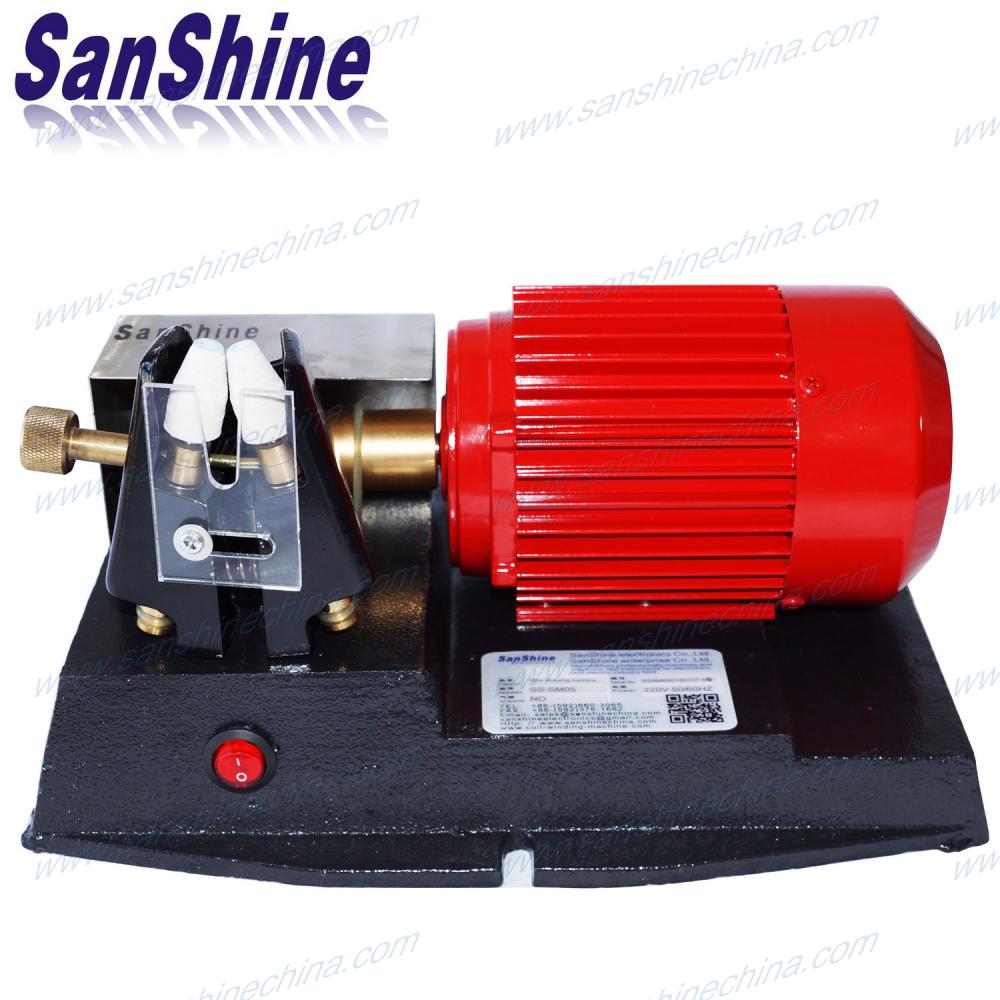

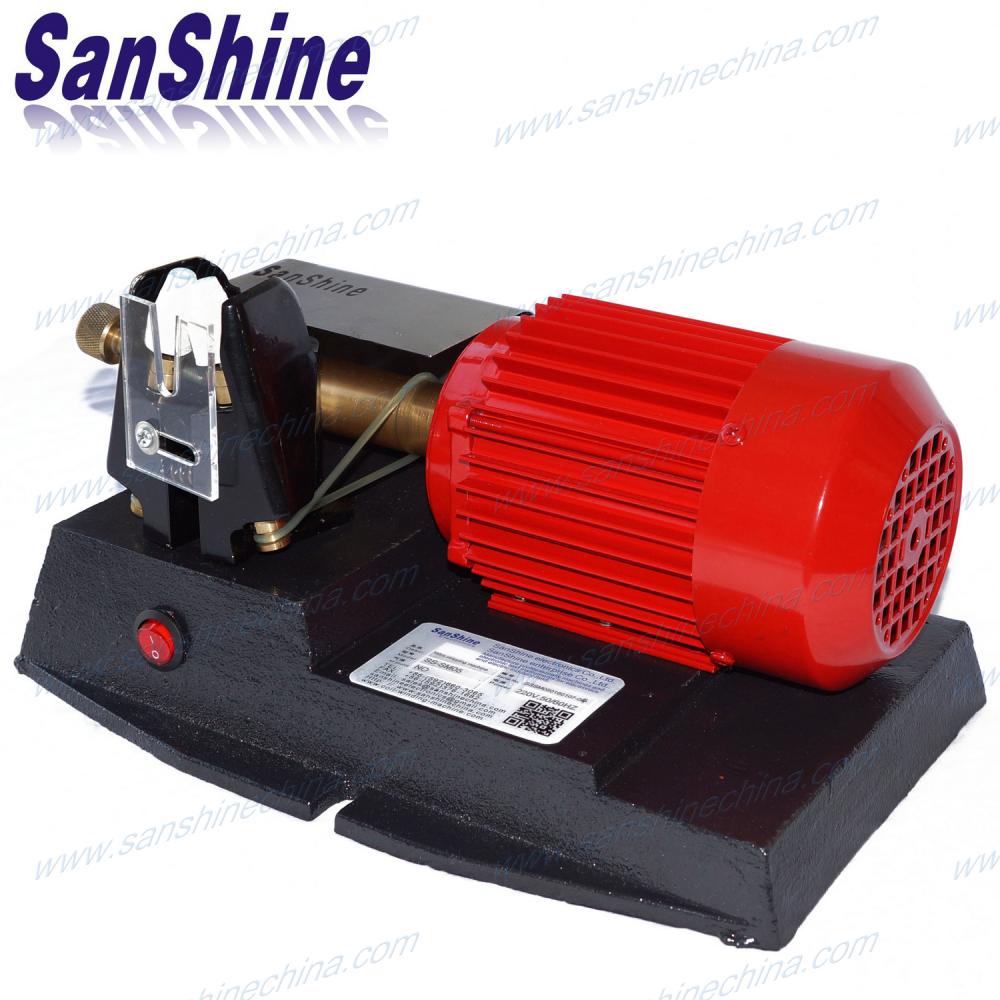

The bench twin fiberglass wheel wire stripping machine (SS-SM05) is one table top fine enamelled wire stripping machine. This fine enameeled wire stripping machine is constructed from motor, power switch, cone fiberglass stripping rollers, roller base. This machine is very conveniently to use which is the best suited to strip the so fine insulated film wires. This stripping equipment can strip a lot of surface insulated film flat wires, round wires and twisted wires (enamelled wire, varnished wire, magnet wire, epoxy wire, polythermaleze wire, etc.). It can strip many PCS wires at same time, never break wire core. This bench twin fiberglass wheel wire stripping machine (SS-SM05) be called twin fiberglass cone wire stripping machine and ERASER bench twin cone fiberglass wire stripping machine also. This machine is used for motor manufacture, transformer manufacture, inductor manufacture, coils manufacture, cable manufacture, and so on. This wire stripping device is superior to knife, grinding wheel and chemical of stripping ways. This stripping equipment can increases the wire stripping processing efficiency and improve the wire soldering quality.
Specification :
Wire diameter range: ¢ 0.045~0.3mm(depend on different fiberglass stripping roller, type A roller for wire :0.045-0.15mm, type B roller for wire: 0.13-0.3mm ).
Power source: Single phase 220V/50Hz.
Power: 120W
Rotation speed: 2800RPM
Weight: 15Kg.
