Belt type miniature automatic toroid coil winding machine

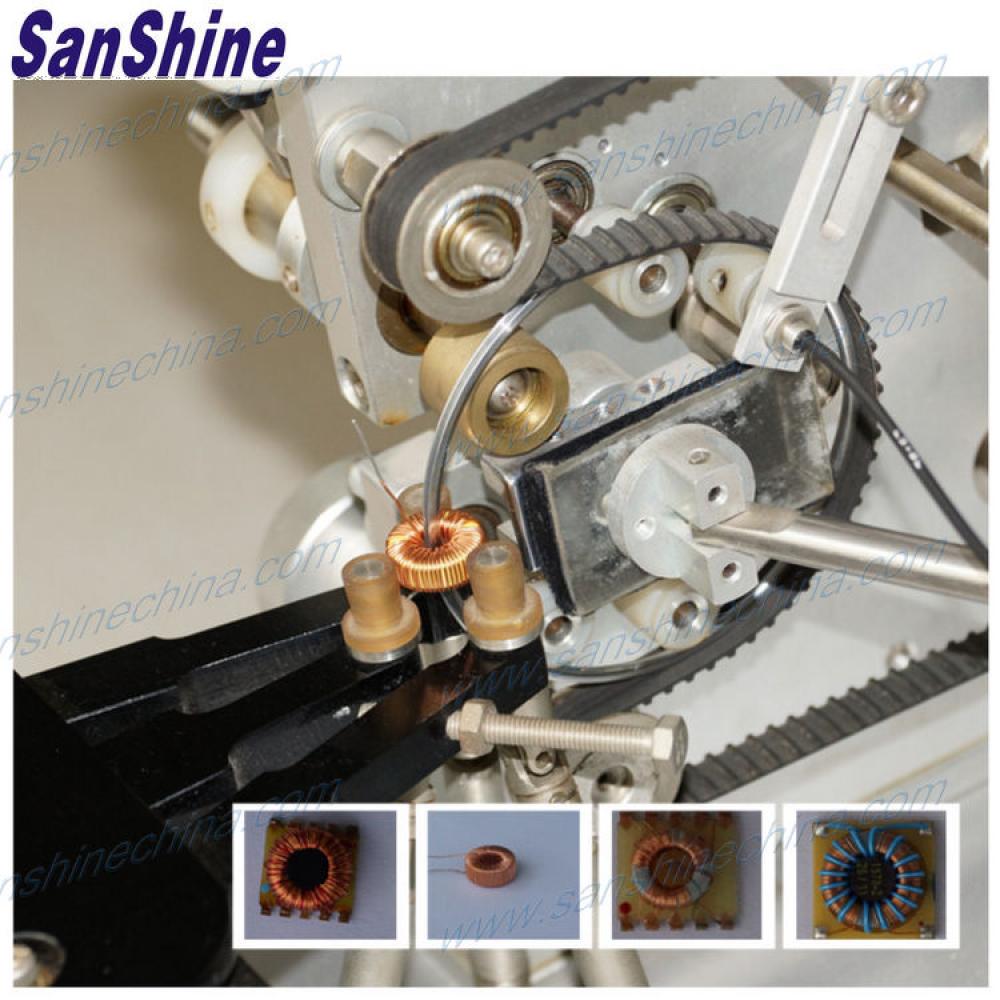

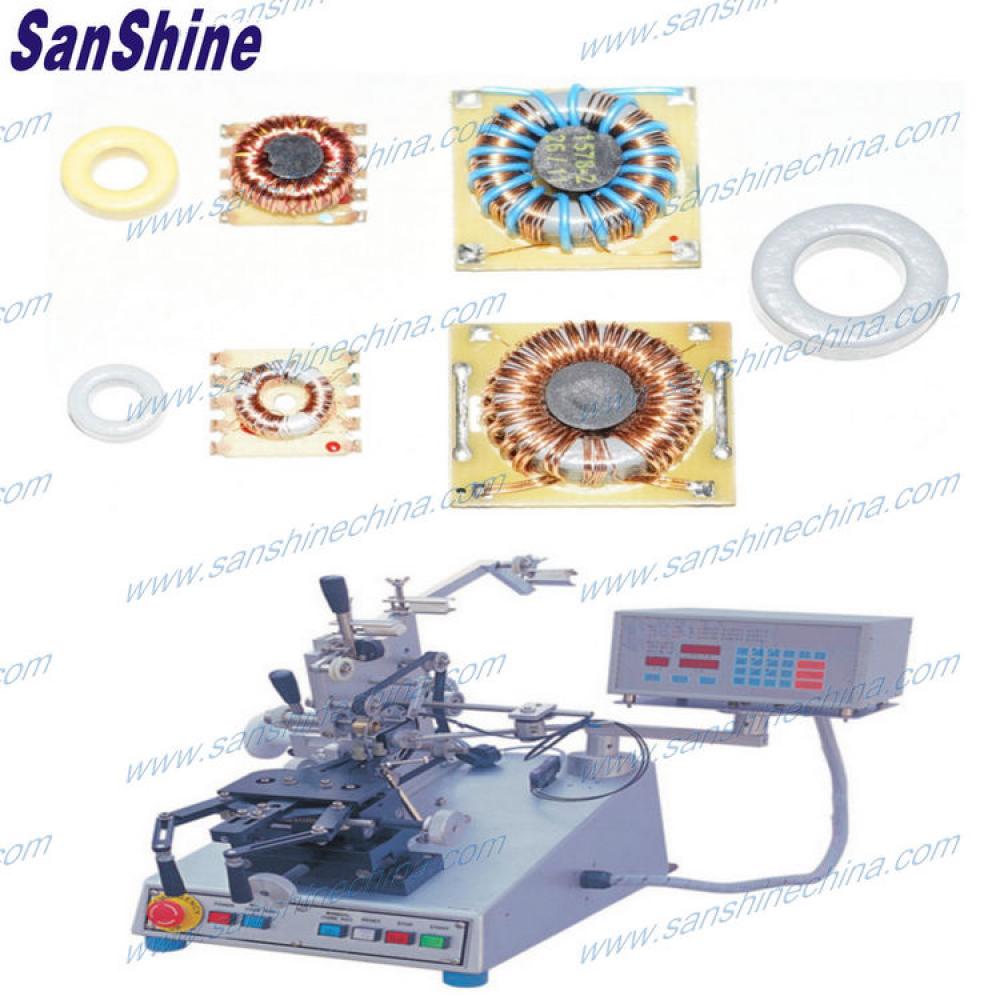

The belt type miniature automatic toroid coil winding machine(SS900B3, 3 inch winding head) is used for winding the fine enamelled wire on the very small toroid core. Like as small SMD filter toroid coils, small SMD toroid inductor coils, small SMT toroid transformer coils. It be named EMI filter coil toroid winding machine also.

Item NO.:
SS900B3
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Gray

contact now User's reviews

Description

Product name : Belt type miniature automatic toroid coil winding machine (SS900B3)

Description :

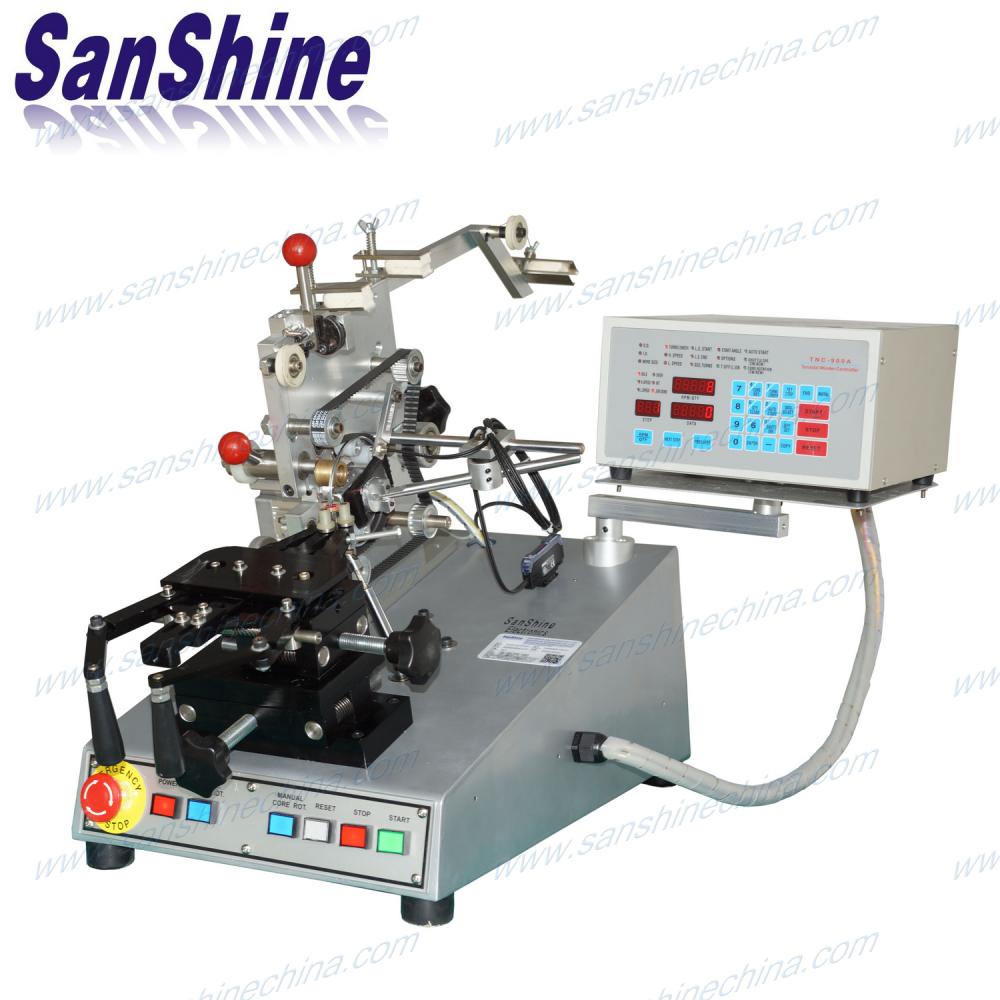

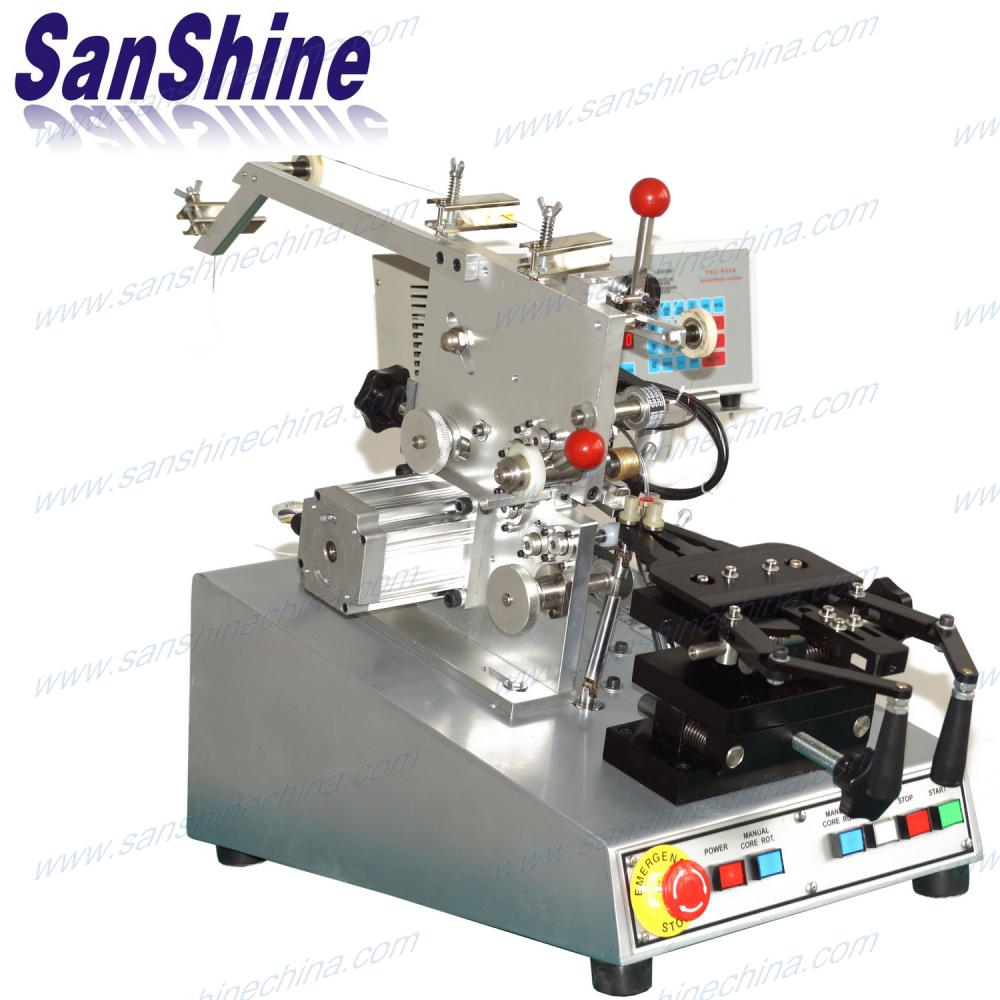

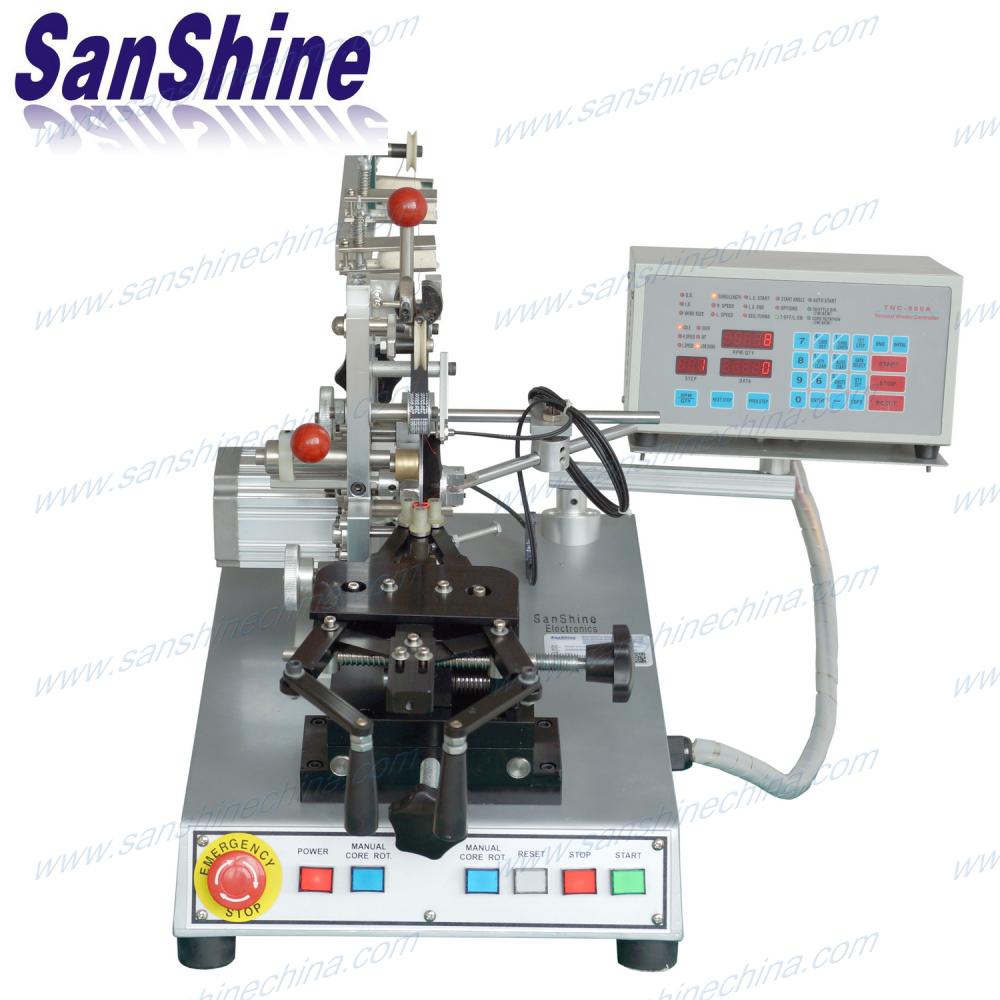

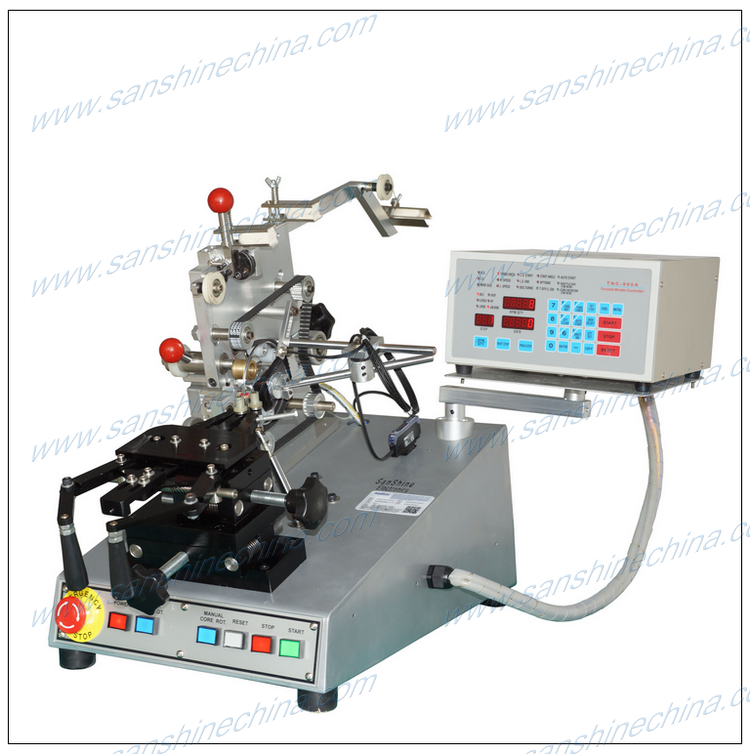

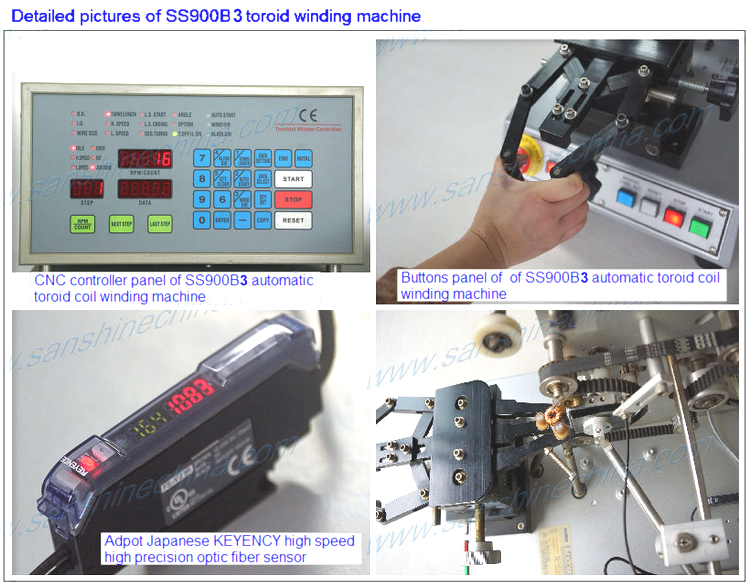

The belt type miniature automatic toroid coil winding machine (SS900B3) adopts CNC toroid controller and round belt type winding shuttle. The miniature automatic toroid coil winding machine (SS900B3) adopts (3 inch winding head). The round belt type miniature automatic toroid coil winding machine (SS900B3) be named toroidal EMC SMT filter coil winding machine also. The belt type miniature automatic toroid coil winding machine (SS900B3) is an accurately programmable toroidal coil winding machine which is used for winding the very very small toroid coils with fine wire. Like as the small toroid SMD filter coils, small line jack signal transformers, small SMD toroid inductor, etc..

Features :

1. Collocate round belt type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire diameter, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification :

Copper wire diameter: 0.07~0.25mm(will be different by different machine model,different shuttle size).

Min. Finished ID: 2.5mm (will be different by different machine model,different shuttle size and coil height).

Finished OD range: 5~16mm(will be different by different machine model,different shuttle size and coil height. )

Max. Speed: 1200RPM

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x50(cm)

Net weight: 39Kgs

Model	Universally matched shuttle model	Copper wire diameter range(mm)	Min. inside diameter of finished coil (mm)	Out side diameter of finished coil range (mm)	Height of finished coil range (mm)
SS900B2	1.2 1.4 1.6 1.8 2.0 or customized	0.07 ~0.25	2.0	5 ~ 16	3 ~8
SS900B3	1.4 1.6 1.8 2.0 2.5 or customized	0.07 ~0.25	2.5	5 ~16	3 ~8
SS900B4	2.5 2.8 3.0 3.5 4.5 or customized	0.15 ~0.8	3	5 ~60	3 ~25
SS900B6	3.5 5.0 6.3 or customized	0.3 ~1.2	6	10 ~80	5 ~45
SS900B8	8 10 12 15 or customized	0.35 ~1.4	12	20 ~150	8 ~80
