Flat wire rectangular spring air coil round coil winding machine with core

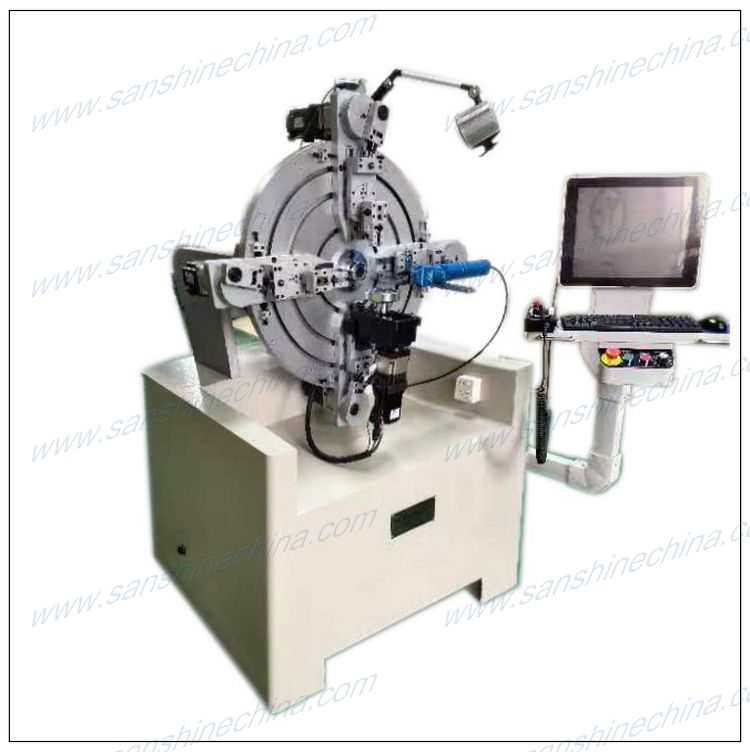

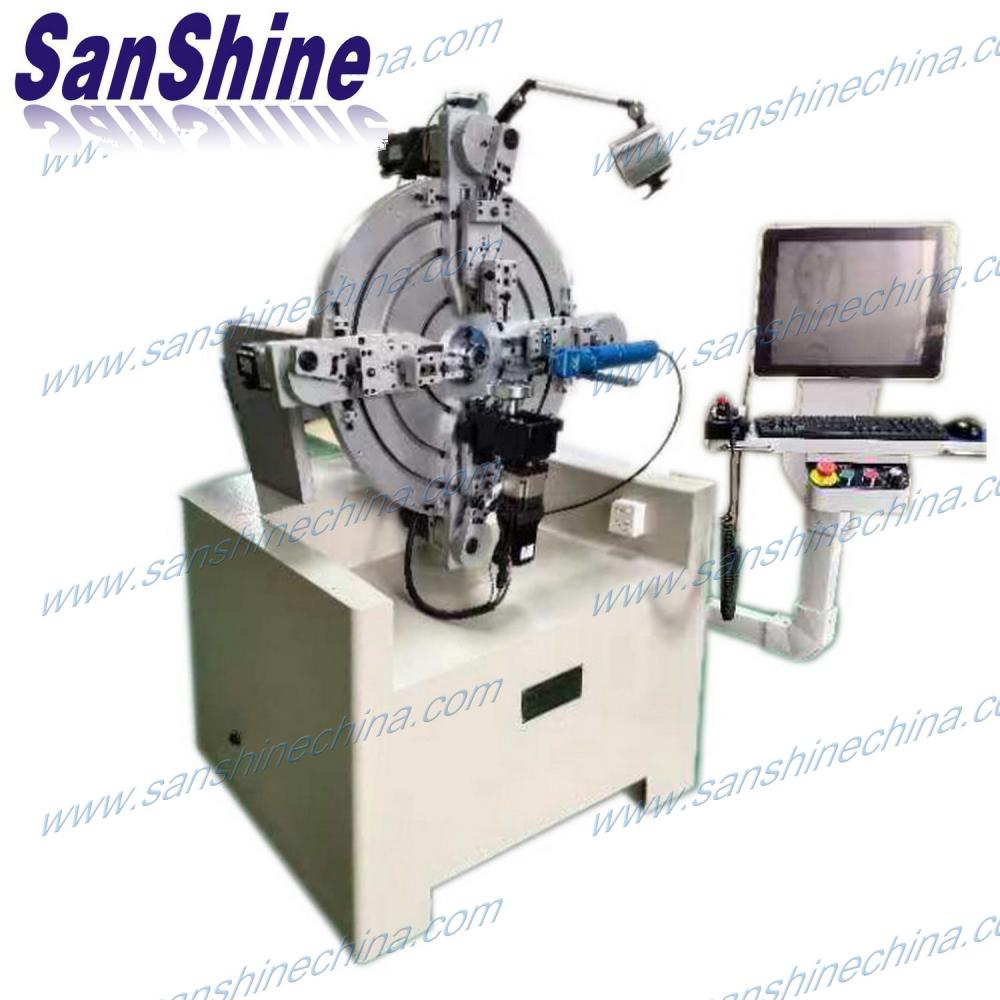

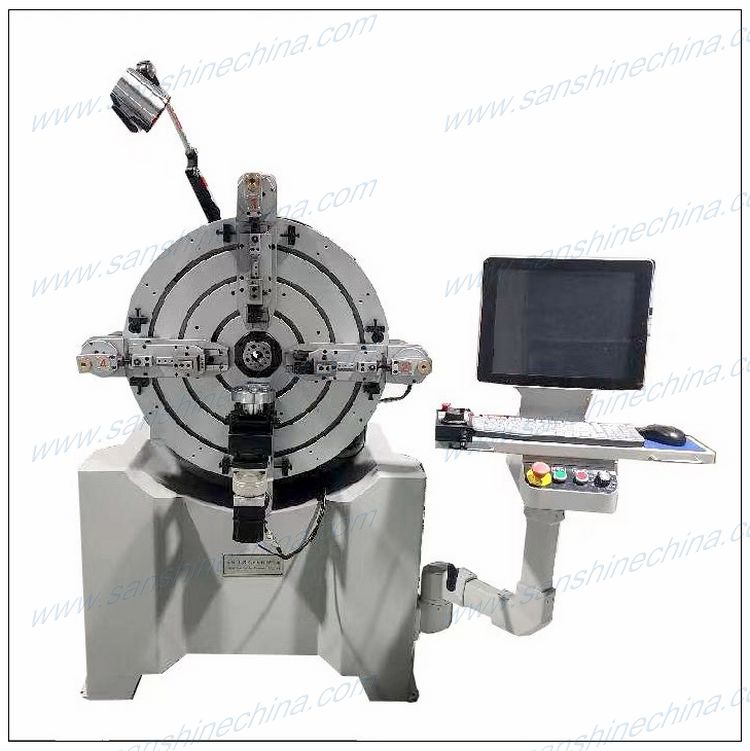

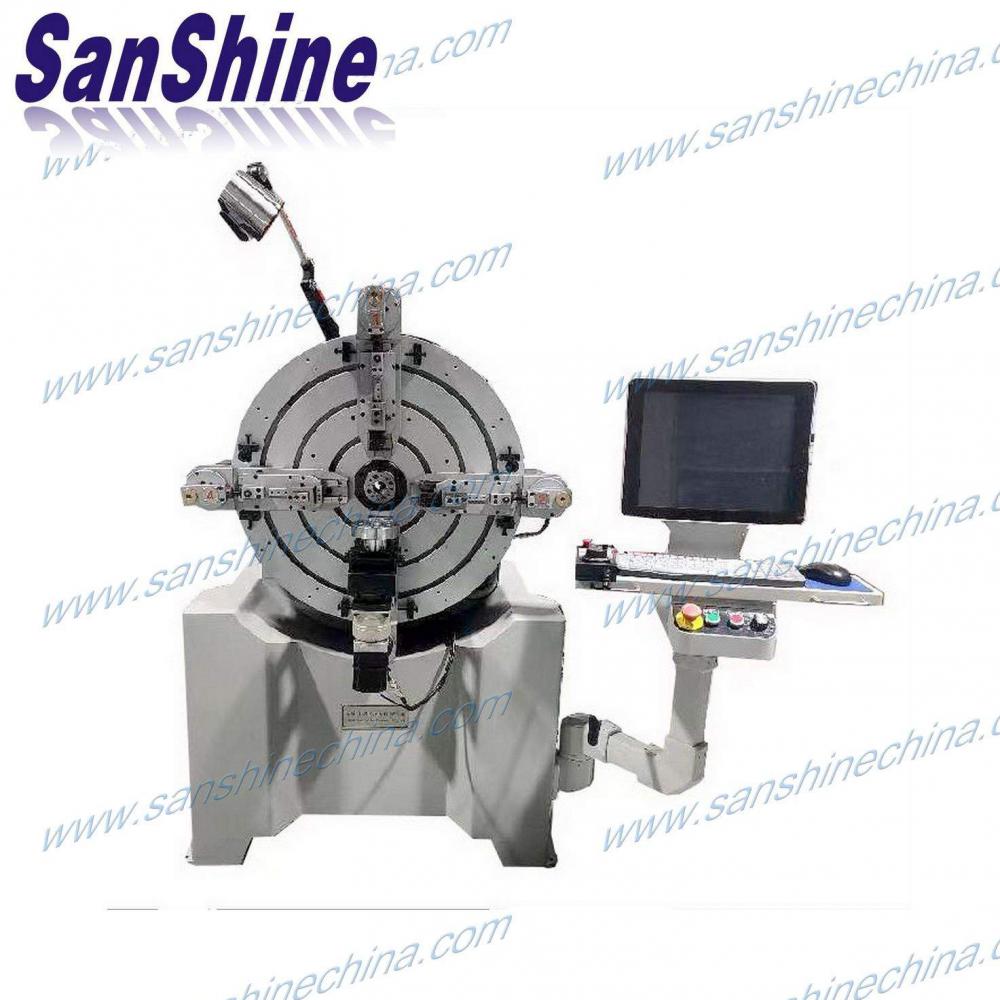

The (SS-FAC03) winder is one non-cam type precise programmable automatic flat wire standing layout air coil winding machine with 6PCS motion axes. This winding machine is called electric car charger inductor winding machine too. This winding equipment is used for winding the thick flat wire air rectangular coils and flat wire air round coil on the toroid or rectangular core ( wind flat wire on the core directly by standing layout).

Item NO.:
SS-FAC03
Product Orgin:
China
Brand:
SanShine
Color:
Gray

contact now User's reviews

Description

Product name : Flat wire rectangular spring air coil round coil winding machine with core

Description :

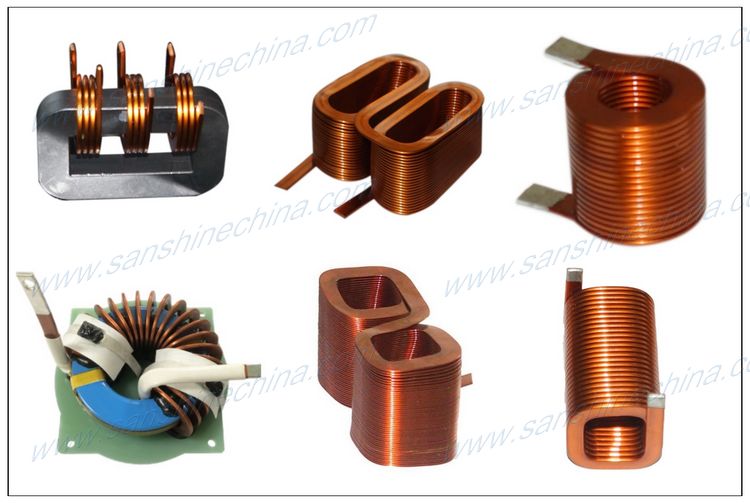

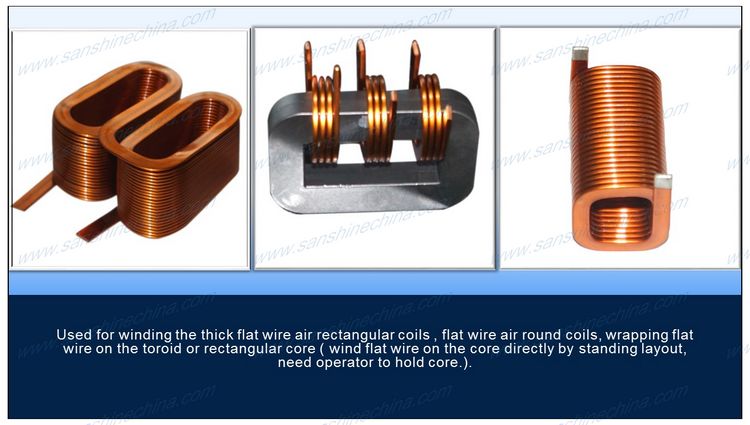

The (SS-FAC03) winder is one non-cam type precise programmable automatic flat wire standing layout air coil winding machine with 6PCS motion axes. This winding machine is called flat wire air rectangular coil winding machinery, electric car charger transformer winding machine too. This winding equipment is used for winding the thick flat wire air rectangular coils, flat wire air round coil and wrapping flat wire on the toroid or rectangular core ( wind flat wire on the core directly by standing layout,Operator need hold the core.). No need operator when winding coil without core. This winding machine can bend and cut the wire terminals (pins) of coil automatically. But some special shape of pins can not bend by it. Can wind the double same rectangular coils ( rectangular twin coils) in series connection.
Features :
1. 4PCS motion arms fixing positions be change-able. Adopting the latest manufacturing technology. servo peeling is more stable, avoided the phenomenon of wire breakage and movement.
2. Optimized mechanical structure designing, adopts Japanese THK brand guiding rails, Japanese brand NSK bears, The overall mechanical performance and service life of the machine are improved, and repeated positioning tolerance are further reduced.
3. Adopts large LCD display with key board and mouse and high-resolution servo motors, the twist angle is more accurate.
4. The spindles is developed and produced using the latest technology, and the runout tolerance is further reduced to meet the requirements of various flat wire air coils.
5. The wire feeding device is made of cast iron. It has been annealed at hight temperature and naturally aged. It is equipped with high precision grinding gears to effectively ensure the accuracy of wire feeding.
6. This flat wire winder is widely used in electric, new engergy car, electric car, battery chargers, electronics, digital, mobile phones, automobiles and other industries.
Specifications :

Model	SS-FAC03
Flat wire sizes	Thickness 0.3~5.0mm, Width 2.0~12.0mm
Finished coil inner hole sizes	Min. Length=2*wire width (mm)
Finished coil inner hole sizes	Max. Length <120mm
Finished coil inner hole diameter when wind on the toroid / rectangular core	Min. Length=3*wire width (mm)
	Max. Length <120mm
Finished coil length (turns number)	< 90mm(the space of wire to arms).
Max. wire feeding length of wire feeding axis	No limit
Wire feeding method of wire feeding axis	3 sets feeding wheels
Wire feeding axis power	4.5KW
Winding / Curling direction	CW / CCW
Curling axis setting range	0.01° ~ 360°
Curling axis	0.75KW
4PCS motion arms axis setting range	0.1° ~ 180°
4PCS motion arms axis power	0.75KW*4
Dimensions (length x width x height)	160013501750(mm)
Weight	About 800kgs
Power source	Threee phases 220V 50/60Hz
