Item NO.:
SS852Product Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:

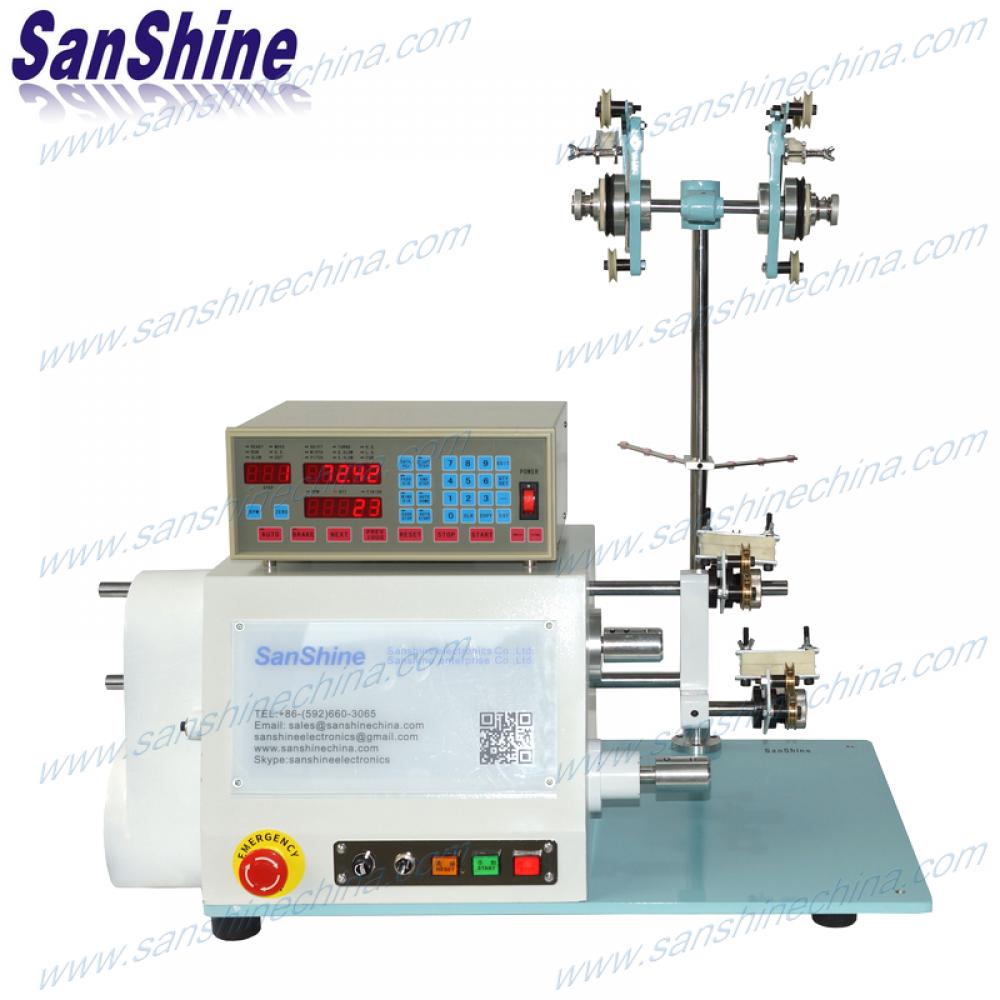

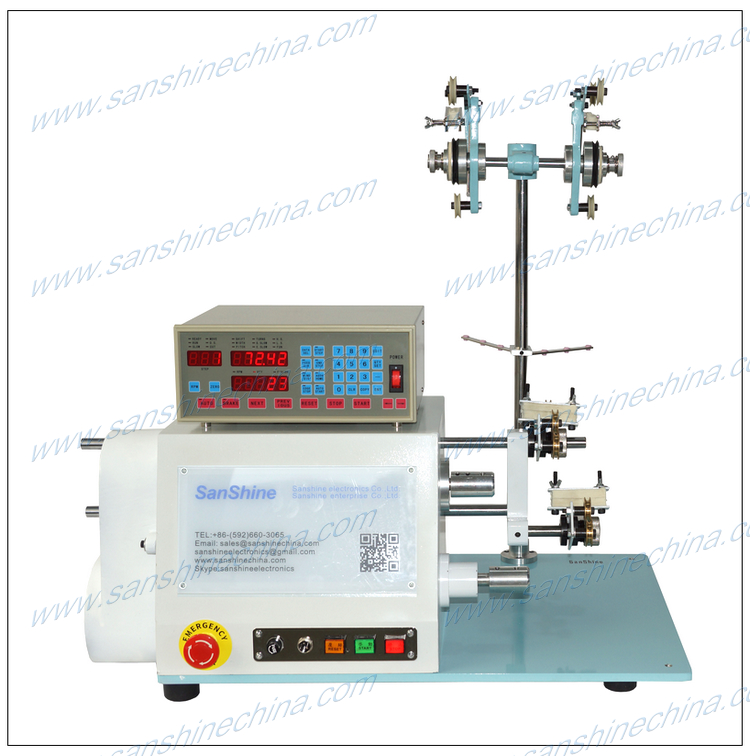

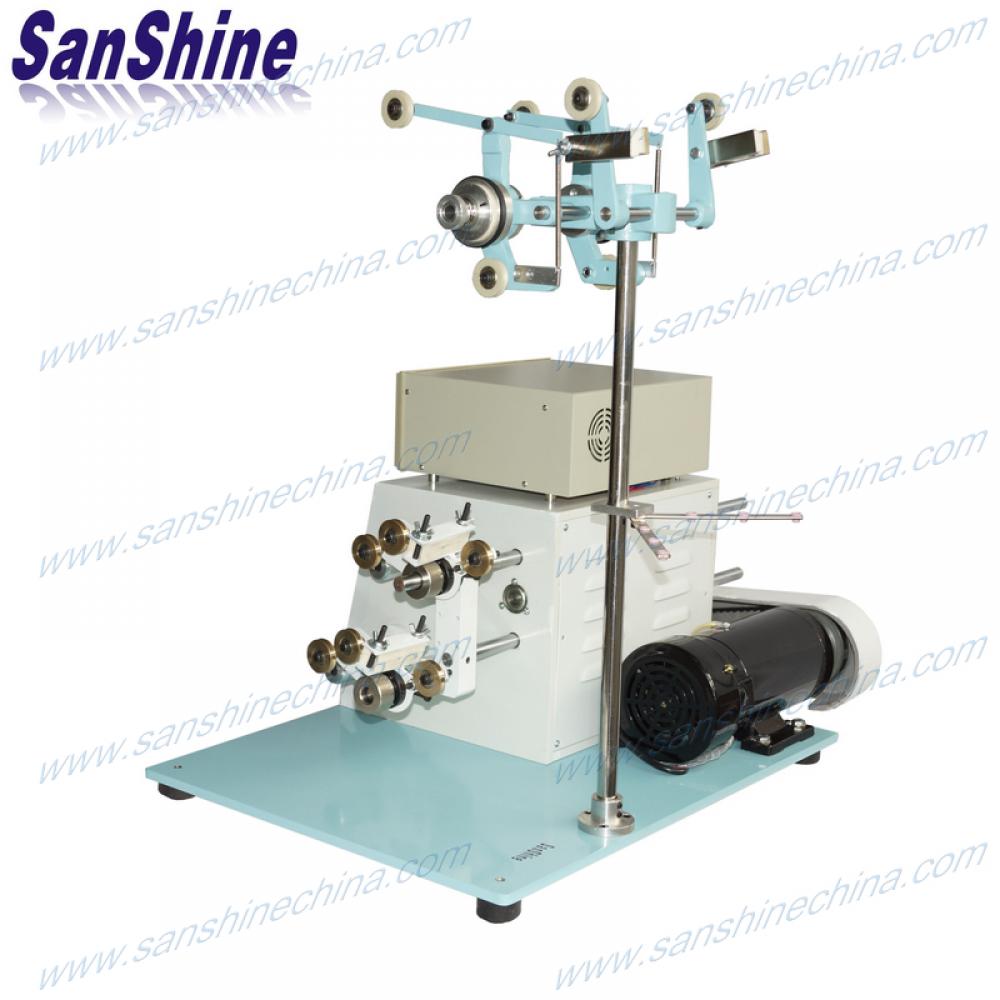

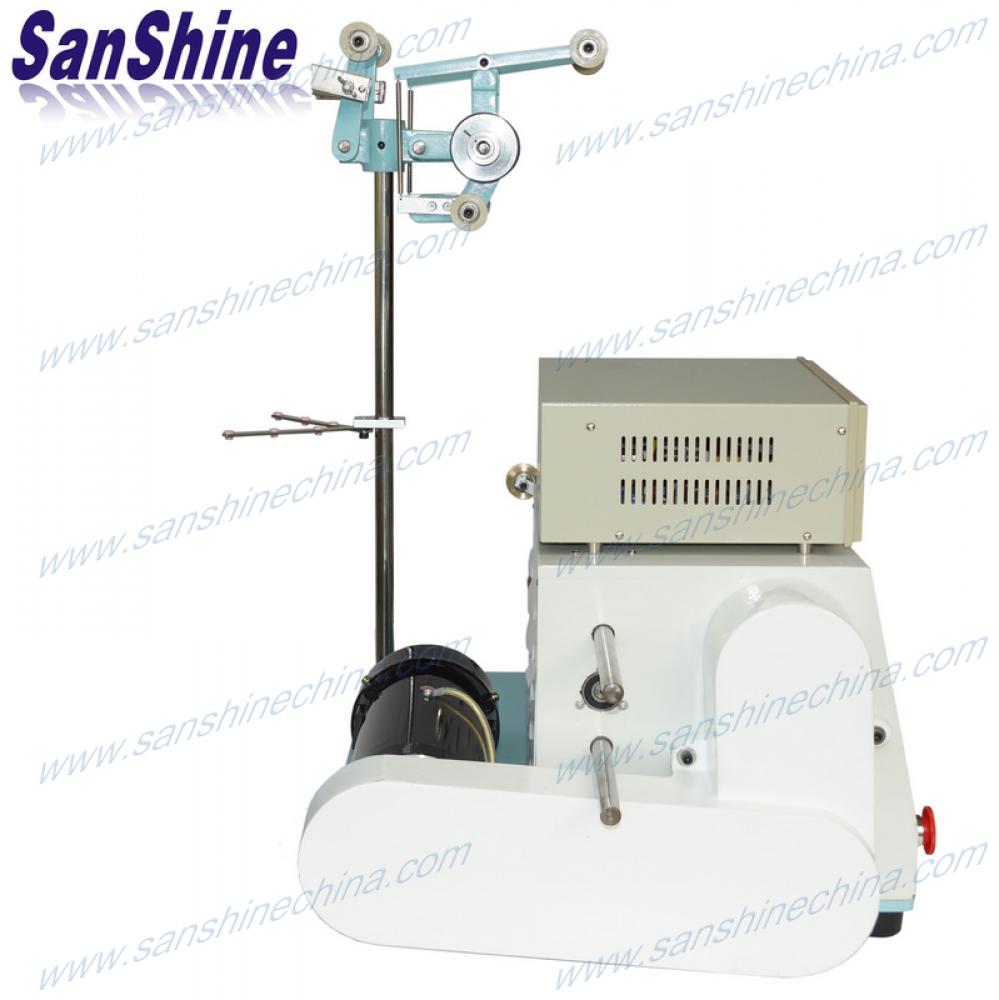

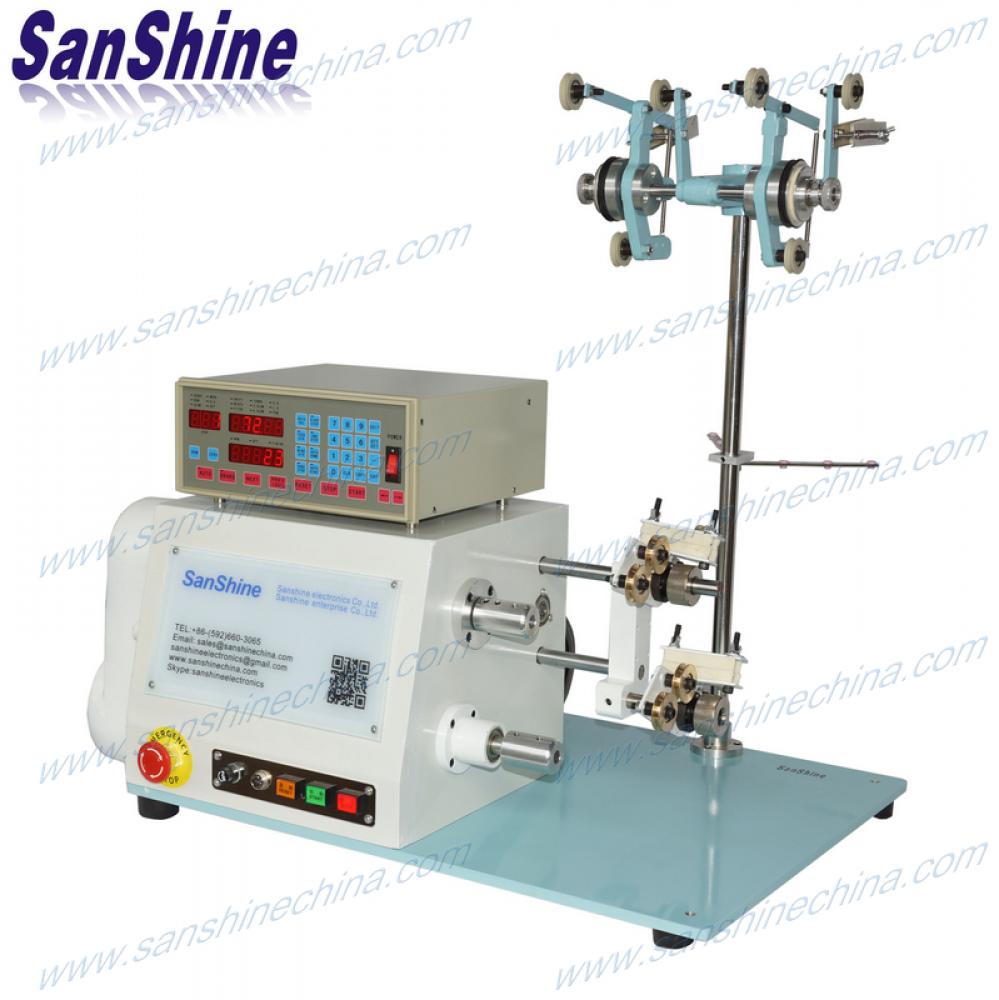

White and blueProduct name : Two spindles automatic thick wire coil winding machine (SS852)
Description :

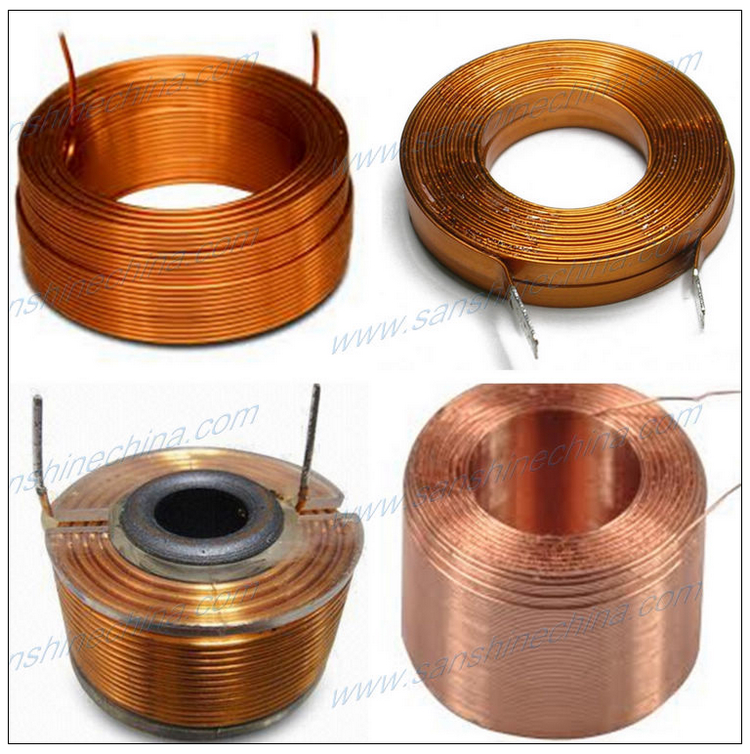

The two spindles automatic thick wire coil winding machine (SS852) is a digital programmable winding machine with strong torsion DC winding motor. The capacity of this winder Maximum wire size can reach 1.6mm when 2 PCS spindles to wind at sametime. This winding machine is the best choice for the coils of thick wire and turns number are a lot of. This coil winding machine (SS852) can be customized according to coil size by requested. This winder (SS852) is named high torsion transformer winding machine and two spindles UPS coil winding machine. This machine is best choice for winding heavy wire(thick wire and flat wire) transformer, inductor, reactor coil, power transformer, power inductor, etc..
Feature :
1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Multiple spindles winding synchronal for highest efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.
Specification :
Model SS851 SS852 SS851A SS851AL Spindle Number 1 2 1 1 Wire diameter 0.05~5.0mm 0.05~1.6mm 0.05~5.0mm 0.05~3.8mm Spread pitch 0.001~9.999mm Spread width(traverse) Max. 230mm Max. 230mm Standard360mm, Customize Max.700mm Max. 400mm Finished coil diameter Max. 200mm Max. 110mm Max.200mm Max. 500mm Winding motor 500W DC Motor Spread motor 4-Phase Stepper Motor Max. speed 2500 RPM Memory capacity 999 Steps Power source AC220V /110V + 10%, 50/60 Hz Dimension(cm) 70x52x60 70x52x60 120x52x60 120x94x66 Net weight 42Kgs 44Kgs 55Kgs 110Kgs
Can't find the specific information you're looking for? Have a question ? Contact Us
Front three spindles programable automatic coil winding machine
The front three spindles programable automatic coil winding machine (SS863) is used for winding the small transformers, inductors, relays. This winding machine be called pulse transformer coil winding machine and AC current sense transformer winding machine and RM rectangular modular transformer winding machine also.
High torsion front spindle automatic coil winding machine
The high torsion front spindle automatic coil winding machine (SS861A) is one high torsion single spindle coil winding machine.This winding machine is used for winding the thick wire big coil. The winding spindle of this winding machine is at front of the machine base. So that to satisfy the practice of some operator. This winder be named heav1
Automatic electric power transformer coil winding machine
The automatic electric power transformer coil winding machine (SS810) adopts computer numerical control system. This winder is specially used for processing the big coils of thick wire, large-scale electric power transformers, large reactor coils. This machine is named electric ast-coil power transformer winding machine and high torsion three phase1
SMD SMC SMT drum core inductor winding machine
The SMD SMC SMT drum core inductor winding machine (SS100A) is a digital coil winding machine. it's an accurately and reliability digital coil winding machine for winding SMT SMD SMC inductors and drum core inductors,surface mount inductors, etc.. This winder is named ferrite surface mount inductor winding machine and pins drum core inductor w1
Two spindles drum core inductor winding machine
The two spindles drum core inductor winding machine (SS100C) is a digital coil winding machine. This winder has two winding spindles. It's an accurately and reliability digital coil winding machine for winding SMT SMD inductors and drum core inductors, etc.. It is very economical. This winding machine is called SMT drum core inductor winding m1
Voice coil winding machine
The voice coil winding machine (SS100V) is a digital coil winding machine. This winder is used for winding the small voice coils without bobbin, like as: mobile phone speaker voice coil, small speaker voice coil, earphone speaker coil,etc.. It is named mobile phone speaker voice coil winding machine also.
Semiautomatic coil winding machine
The semiautomatic coil winding machine (SS102) adopts a digital controller, This winder is a sei-automatic winding machine which can not spread wire by automatically. Need operator to spread wire by hand during winding. It's an accurately and reliability digital coil winding machine for winding transformers, inductors, contactor, etc.. This winding1
Two spindles automatic coil winding machine
The two spindles automatic coil winding machine (SS600I ) is used for winding the fine wire coils. This winding machine can wind two pieces coils at same time. It be named two spindles automatic bobbin winder and two spindles automatic choke winding machine also.
