Fully automatic cooker hood fan motor winding machine

The fully automatic twelve spindles cooker hood fan motor winding machine (SS6012/SS8012) is used for winding the cooker hood fan motor coils. It can complete the motor coil without any one operator in fully automatically. It is named cooker hood fan motor coil winding machine also.

Item NO.:
SS6012/SS8012
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Blue

contact now User's reviews

Description

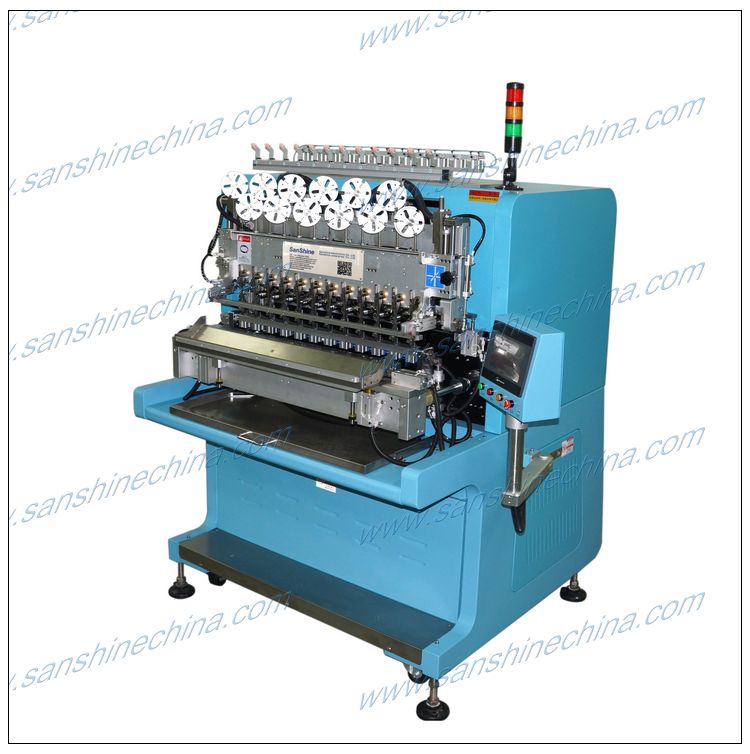

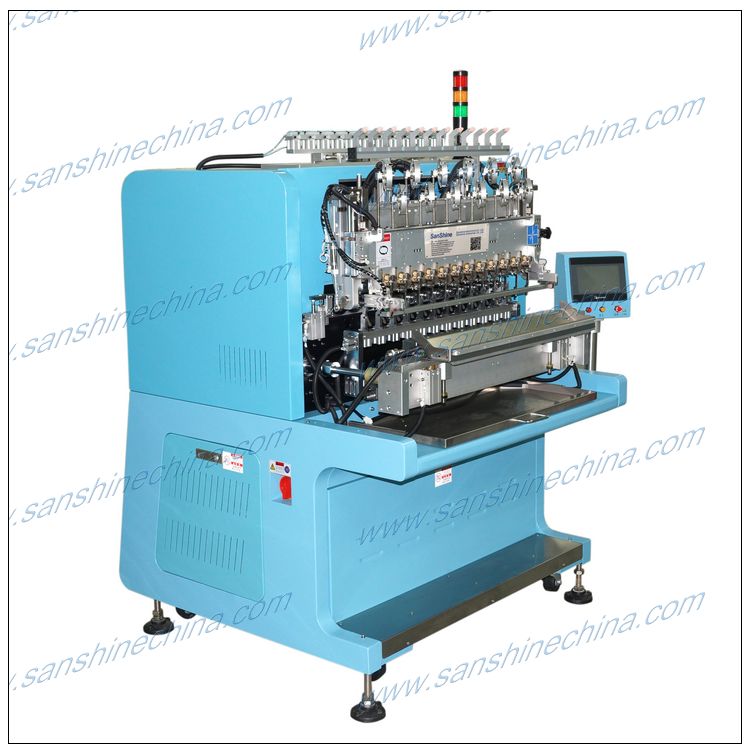

Product name : Fully automatic twelve spindles cooker hood fan motor winding machine (SS6012/SS8012)

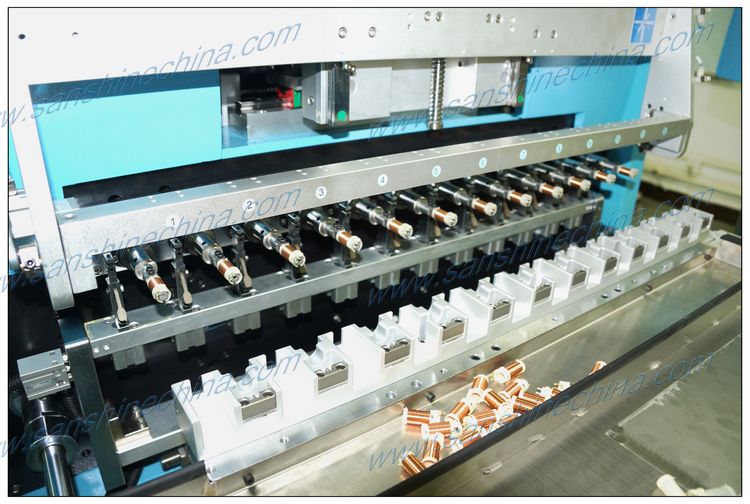

Finished products show

Description :

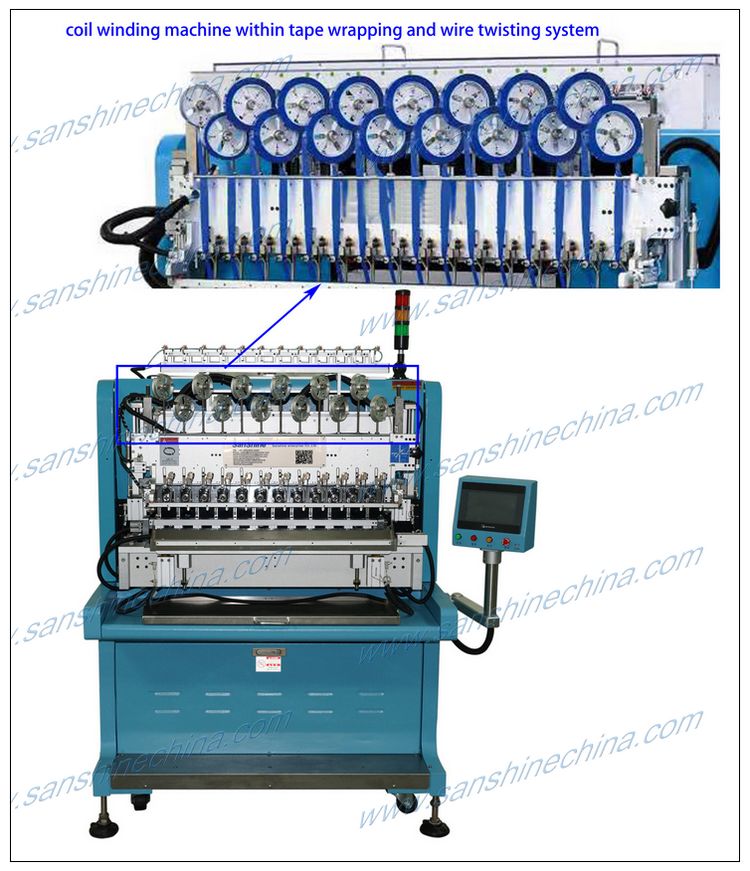

The fully automatic twelve spindles cooker hood fan motor winding machine (SS6012/SS8012) is used for winding the cooker hood fan motor coils. This fully automatic twelve spindles linear coil winding machine (SS6012/SS8012) is named cooker hood fan motor coil production line also. The fully automatic twelve spindles linear coil winding machine can complete the motor coils without any one operator in fully automatically. Load the bobbins and down load the finished coils in automatically. Process the winding, twisting, tape wrapping, wire cutting and wire stripping actions fully automatically quickly with different function optional system. Make your production quality to top grade and high efficiency.

We also provide high-quality fully automatic 24 spindles linear coil winding machine, etc.

Fixtures :

1),Specially wire cutting system for thick wire and TEX wire.

2),The wire clips can hold wire still automatically when air pressure cut off.

3),Can cut off air pressure automatically when electric power off.

4),Can wind multiple piece wires in parallelly at same time on same bobbin.

5),Calibrate the original position of X / Y / Z spindles automatically.

6),Automatically loading and unloading function.

7),Wire broken alarm function.

8),Wrapping tape function.

9),Wire twisting function.

10),Wire cutter cutting function.

11),Wire stripping function.

12),High precise servo motors with high precise controlling system and movement system.

13),Multi-angles to wind wire terminal on the pins.

14),Winding jigs and loading /unloading fixture can be changeable easily.

15),Chinsee / English operation interface switchable with touching screen.

16),Potable adjustment keyboard.

Specification :

Model	SS1206	SS8008	SS1208	SS7010	SS9910	SS6012	SS8012	SS4516	SS6016	SS3824	SS3532
Spindle numbers	6	8	8	10	10	12	12	16	16	24	32
Center distance between spindles	120mm	80mm	120mm	70mm	99mm	60mm	80mm	45mm	60mm	38mm	35mm
Max.Dia. Or width of bobbin	55mm	50mm	55mm	45mm	50mm	42mm	45mm	30mm	42mm	20mm	16mm
Wire diameter (mm)	0.02~0.8	0.02~0.6	0.03~0.6	0.02~0.5	0.03~0.5	0.02~0.45	0.02~0.5	0.02~0.35	0.02~0.35	0.02~0.35	0.02~0.3
Control way	Precise CNC multi-axis AC servo motor transmission system, position controlling precisely.
Spindles rotating speed (RPM)	Max. 9000	Max. 9000	Max. 7000	Max. 9000	Max. 8000	Max. 12000	Max. 8000	Max. 12000	Max. 10000	Max. 12000	Max. 15000
Winding nozzle angle	0° , 90° , 45°(optional)
Spindles rotating angle	360° +/- 0.1
Traverse range of winding nozzle	(X Axis):0-100mm (Y Axis):0-100mm (Z Axis):0-60mm
Accuracy of winding nozzle movement	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm
X/Y/Z Axis servo motor power (KW)	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4	(X):0.4 (Y):0.4 (Z):0.4
Wire terminal clips device moving servo motor power	400W	400W	400W	400W	400W	400W	400W	400W	400W	400W	400W
Winding spindle servo motor power	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	2.0KW	2.0KW
Operation interface	Easily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen)
Program storage method	Direct storage + USB
Power supply	Single phase AC220V 50/60 Hz or AC110V 50/60 Hz by request
Power	3KW	3KW	3.5KW	3KW	3.5KW	3KW	3.5KW	3KW	3.5KW	3.5KW	3.5KW
Air source pressure	5-6Kgf/cm2
Servo motor	Panasonic or or FUJI or YASKAWA
Cylinder	SMC / CKD /Airtac / Chelic Cylinder
Machine net weight	650Kg	650Kg	750Kg	650Kg	750Kg	650Kg	750Kg	650Kg	750Kg	900Kg	900Kg
Machine size(mm) (with tensioners shelf)(WLH)	1500* 1200* 1820	1500* 1200* 1820	1700* 1500* 1650	1500* 1200* 1820	1700* 1500* 1650	1500* 1200* 1820	1700* 1500* 1650	1500* 1200* 1820	1700* 1500* 1650	1200* 1500* 1600	1700* 1500* 1650
Bobbing loading and finished coil unloading way	Operator place bobbins on the Auto. Loading and unloading fixture first, then machine insert the bobbins onto the winding spindles automatically, will unload the finished coils automatically. ( fully automatic loading and unloading bobbins and coils function by request to customize, fully automatically loading and unloading function which no need operator to place the bobbins on the fixture. These winding machines can be integrated with our automatic solder tinning machines and automatic testing machines and core assembly machines so that to be one fully automatic finished coils production line without operator. we provide the fully automatic finished coils production line by user request.)
Tape wrapping function	optional	optional	optional	optional	optional	optional	optional	optional	optional	NO	NO
Wire twisting function	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
Thick wire cutter cutting function	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
Wire stripping function	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
Wire broken alarm function	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
