programmable slider type automatic toroid coil winding machine

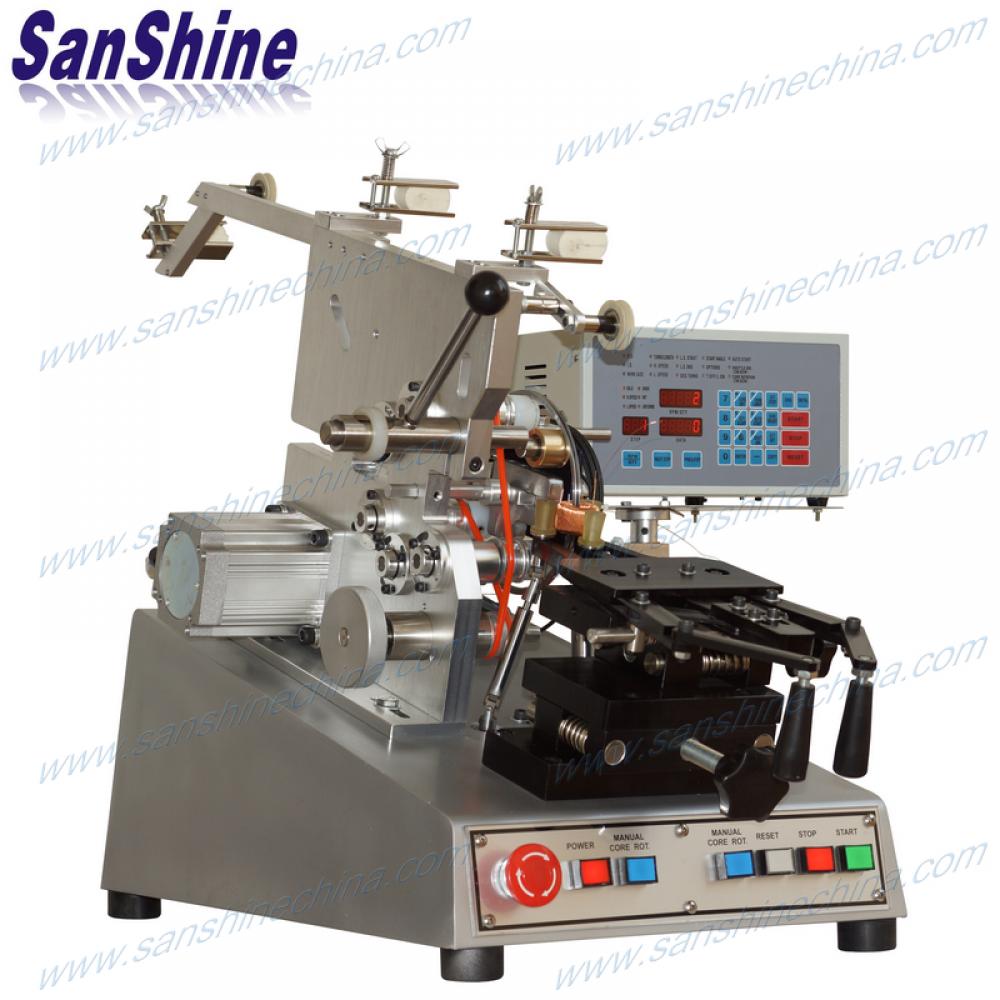

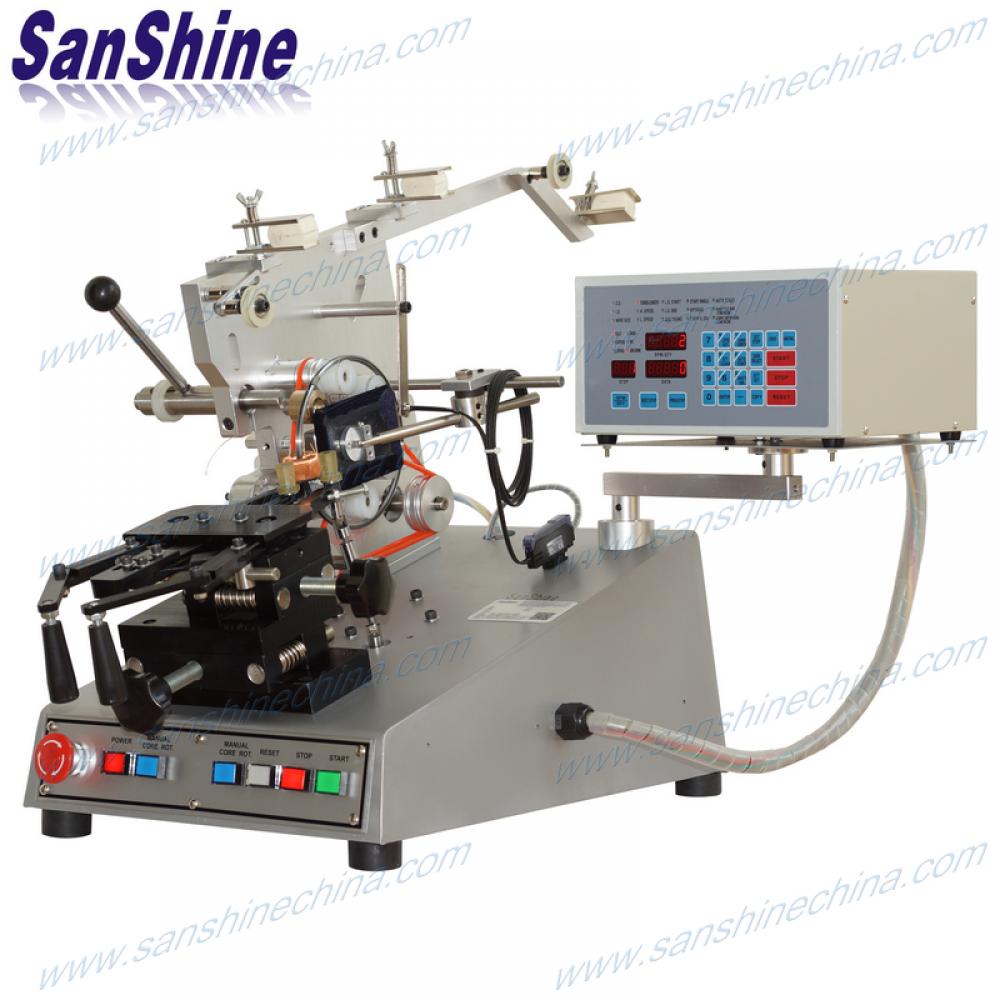

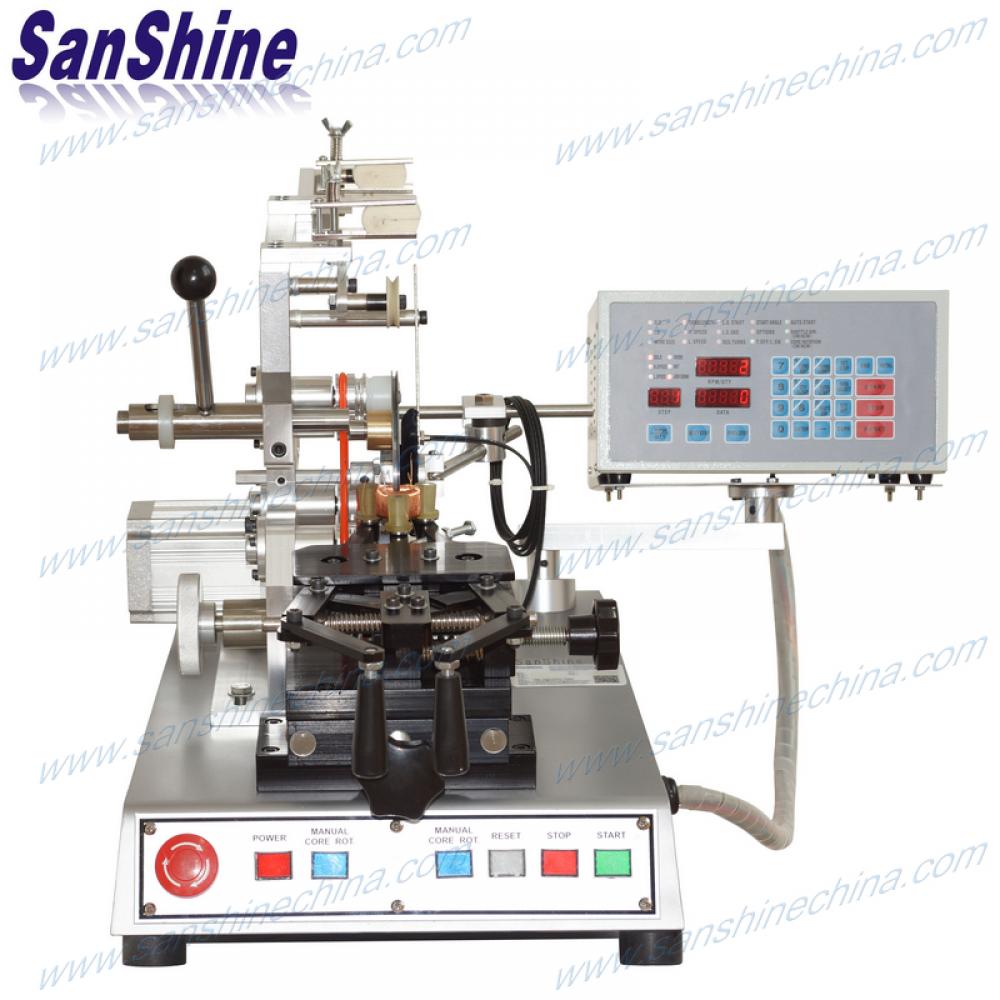

Product name : Programmable slider type automatic toroid coil winding machine (SS900S4)

Description :

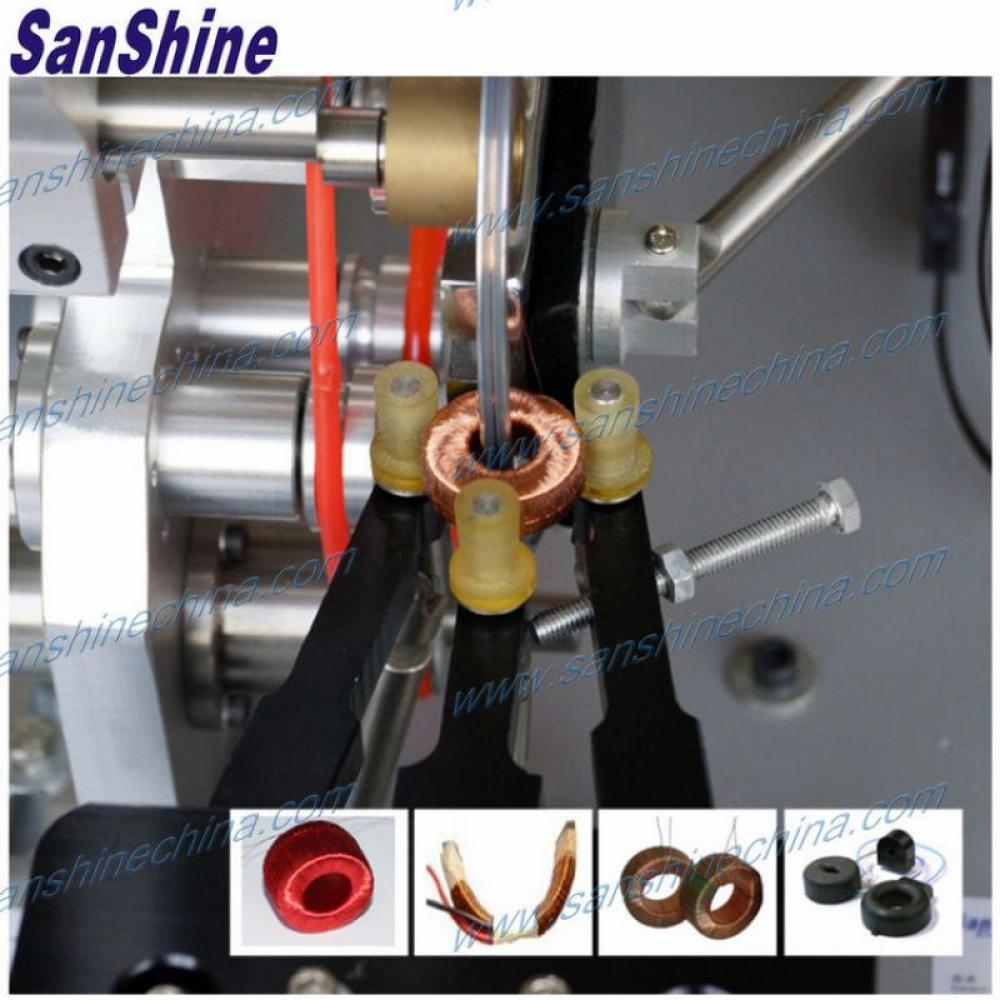

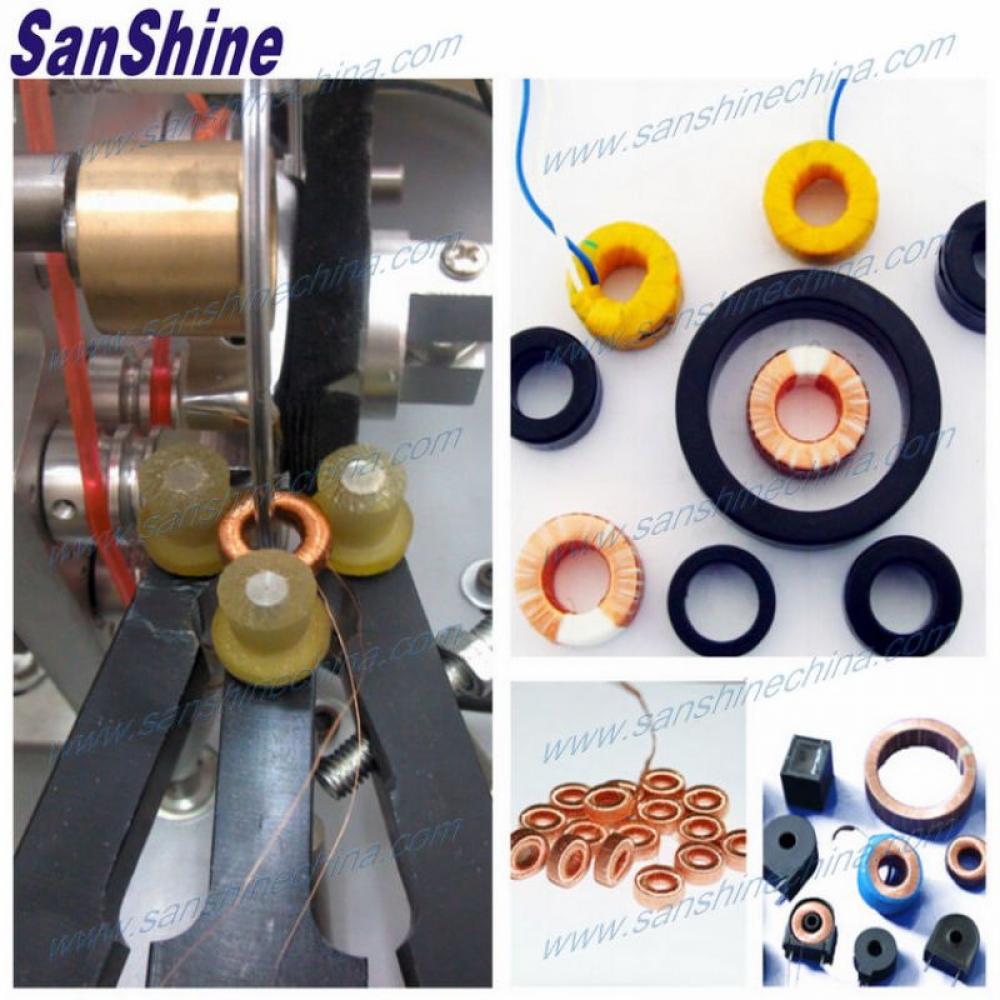

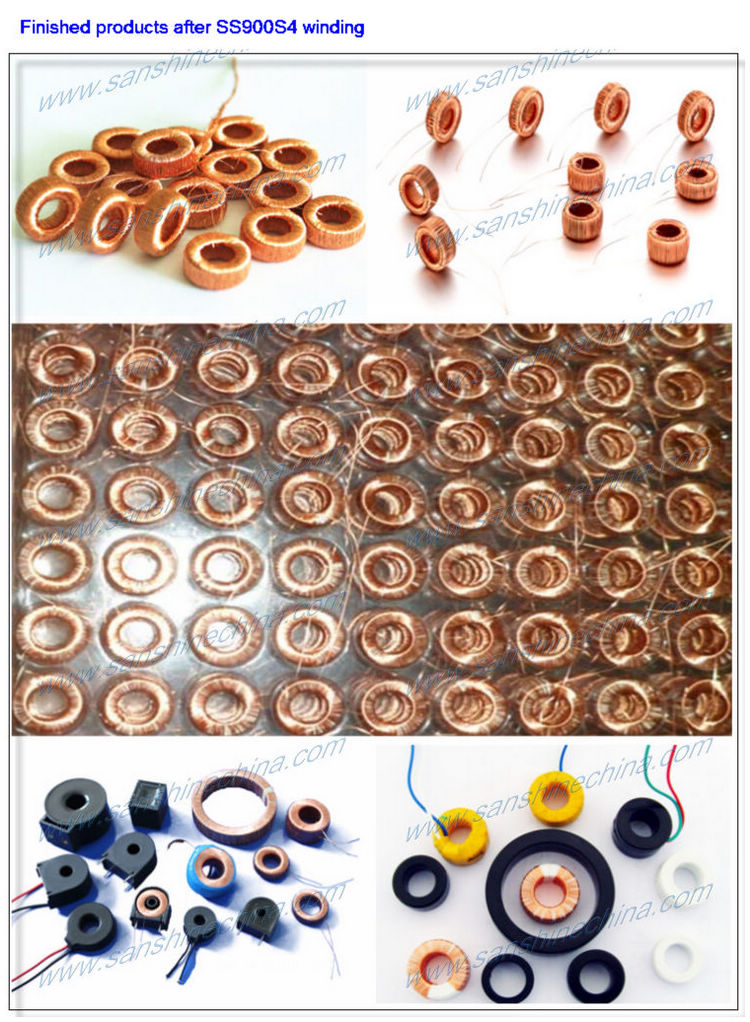

The programmable slider type automatic toroid coil winding machine (SS900S4, 4 Inch winding head) is used for winding fine wire small toroidal coils. The slider type automatic toroid coil winding machine (SS900S4) adopts CNC toroid controller, Adopts slider type winding shuttle. Shuttle and slider take the fine enamelled wire to wind on the toroidal core in orderly by user's requirements. It's an accurately and reliability digital precise toroidal winding machine. The slider type automatic toroid coil winding machine (SS900S4) is used for winding fine enamelled wire toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil, toroid chock coil, power inductors, power magnetics, UPS inductor, converter inductors, watt metter current toroidal sensors, etc. . The programmable slider type automatic toroid coil winding machine (SS900S4) be also know as small toroid transformer winding machine.

Features :

1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire diameter, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one piece winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

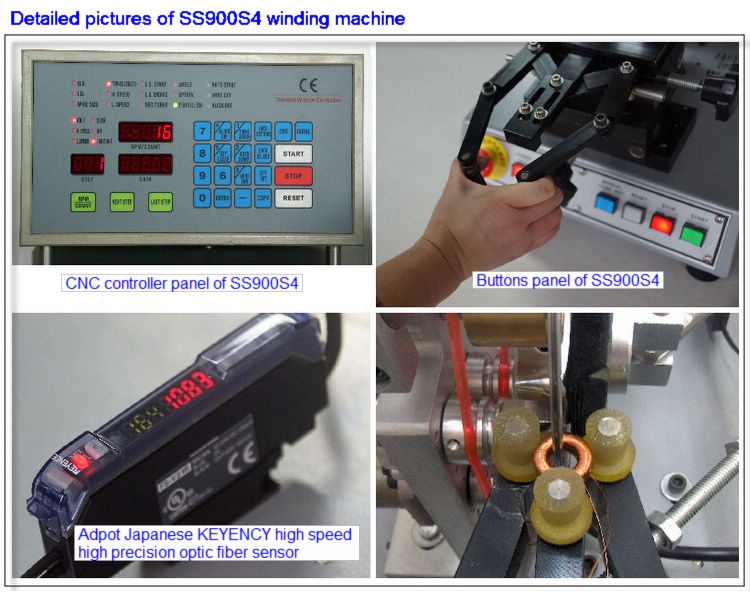

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification :

Copper wire diameter: 0.05 ~0.6 mm (will be different by different model, different shuttle size and coil height. )

Min. Finished ID: 4.5 mm (will be different by different model, different shuttle size, wire diameter, turns, core size, and coil height. )

Finished OD range: 5~150 mm (will be different by different model, different shuttle size and coil height. )

Max. Speed: 1800RPM

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x64(cm)

Net weight: 40 ~ 42 Kgs.

Tell us your toroidal coil of data as below please:

1. toroid core outside diameter before winding?

2. toroid core inside diameter before winding?

3. toroid core height before winding?

4. how many windings on this core?

5. how many turns of each winding?

6. how about the copper wire diameter of each winding?

7. provide pictures of product which is better.
